AIS2IH Communication interface characteristics 2.4.2 I²C - inter-IC control interface
Subject to general operating conditions for Vdd and Top.
Table 7. I²C slave timing values I²C fast mode(1)(2) I²C fast mode+(1)(2) I²C high speed mode Symbol Parameter Unit Min. Max. Min. Max. Min. Max
f(SCL) SCL clock frequency 0 400 0 1000 0 3400 kHz tw(SCLL) SCL clock low time 1.3 - 0.5 - 0.16 - µs tw(SCLH) SCL clock high time 0.6 - 0.26 - 0.06 - tsu(SDA) SDA setup time 100 - 50 - 10 - ns th(SDA) SDA data hold time 0.01 0.9 0 - 0 0.07 t START/REPEATED START condition hold h(ST) 0.6 - 0.26 - 0.16 - time tsu(SR) REPEATED START condition setup time 0.6 - 0.26 - 0.16 - t µs su(SP) STOP condition setup time 0.6 - 0.26 - 0.16 - t Bus free time between STOP and START w(SP:SR) 1.3 - 0.5 - - - condition Data valid time - 0.9 - 0.45 - - Data valid acknowledge time - 0.9 - 0.45 - - CB Capacitive load for each bus line - 400 - 550 - 100 pF 1. Data based on standard I²C protocol requirement, not tested in production. 2. Data for I²C fast mode and I²C fast mode+ have been validated by characterization, not tested in production.

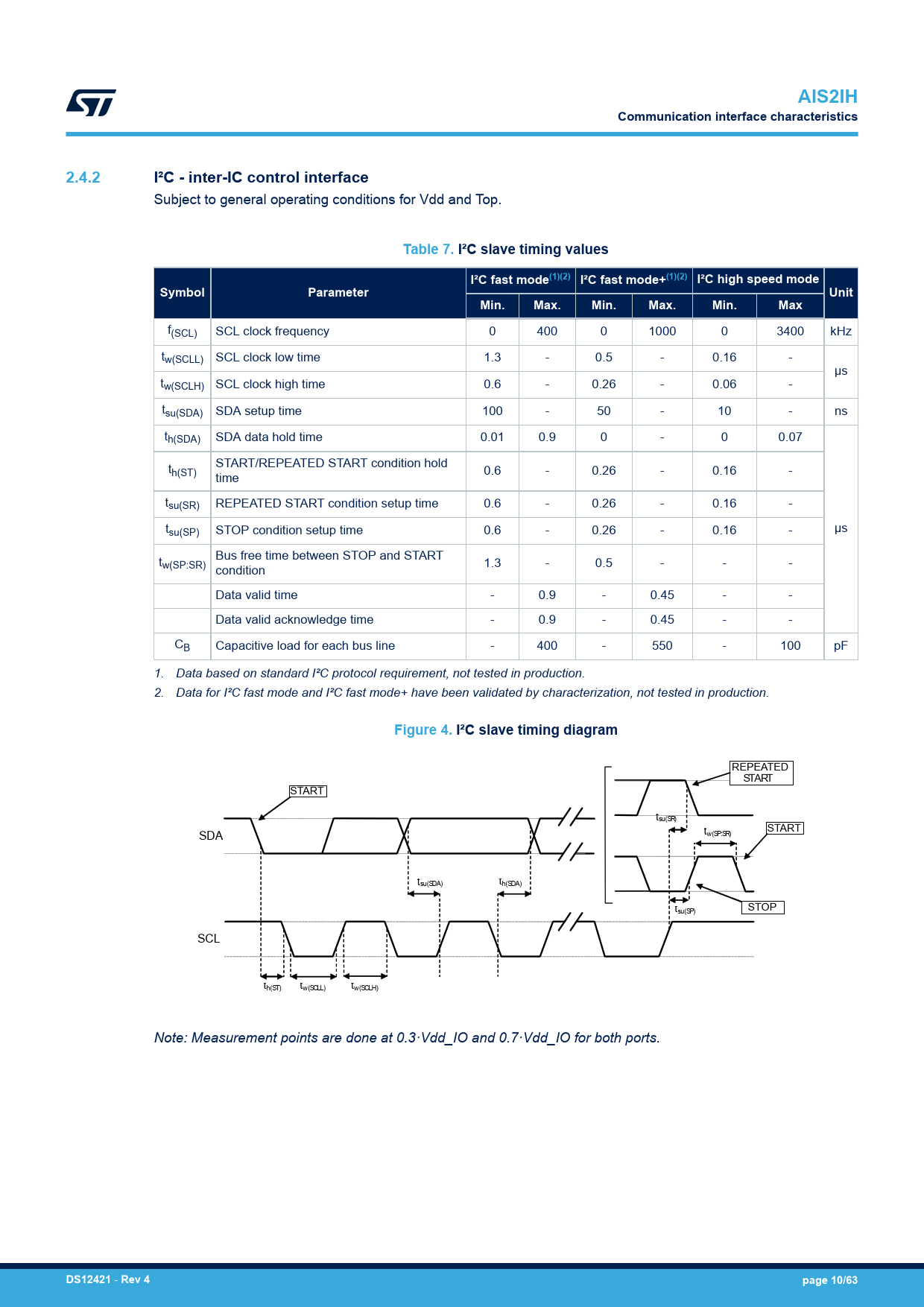

Figure 4. I²C slave timing diagram
REPEATED START START tsu(SR) START SDA tw(SP:SR) tsu(SDA) th(SDA) t STOP su(SP) SCL th(ST) tw(SCLL) tw(SCLH) Note: Measurement points are done at 0.3·Vdd_IO and 0.7·Vdd_IO for both ports.
