Datasheet HPR-1100BGH (Excelitas) - 2
| Manufacturer | Excelitas |
| Description | Hybrid PIN Receiver Module |
| Pages / Page | 7 / 2 — HPR Series – HPR-1100BGH. Hybrid PIN Receiver Module. Table 2: Ordering … |
| File Format / Size | PDF / 465 Kb |
| Document Language | English |

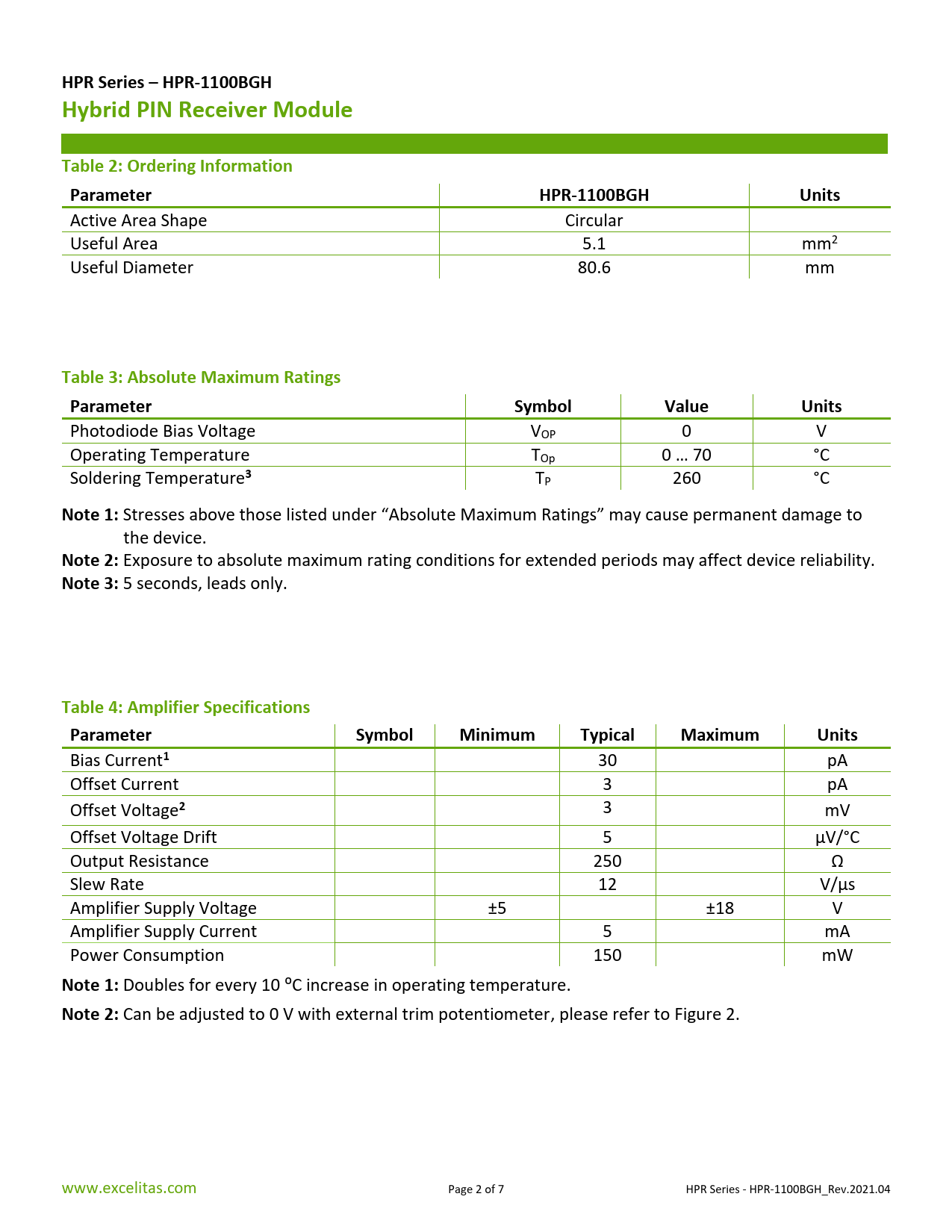

HPR Series – HPR-1100BGH. Hybrid PIN Receiver Module. Table 2: Ordering Information. Parameter. HPR-1100BGH. Units
Model Line for this Datasheet
Text Version of Document
HPR Series – HPR-1100BGH Hybrid PIN Receiver Module Table 2: Ordering Information Parameter HPR-1100BGH Units
Active Area Shape Circular Useful Area 5.1 mm2 Useful Diameter 80.6 mm
Table 3: Absolute Maximum Ratings Parameter Symbol Value Units
Photodiode Bias Voltage VOP 0 V Operating Temperature TOp 0 … 70 °C Soldering Temperature
3
TP 260 °C
Note 1:
Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device.
Note 2:
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note 3:
5 seconds, leads only.
Table 4: Amplifier Specifications Parameter Symbol Minimum Typical Maximum Units
Bias Current
1
30 pA Offset Current 3 pA Offset Voltage
2
3 mV Offset Voltage Drift 5 µV/°C Output Resistance 250 Ω Slew Rate 12 V/µs Amplifier Supply Voltage ±5 ±18 V Amplifier Supply Current 5 mA Power Consumption 150 mW
Note 1:
Doubles for every 10 ⁰C increase in operating temperature.
Note 2:
Can be adjusted to 0 V with external trim potentiometer, please refer to Figure 2. www.excelitas.com Page 2 of 7 HPR Series - HPR-1100BGH_Rev.2021.04
Active Area Shape Circular Useful Area 5.1 mm2 Useful Diameter 80.6 mm
Table 3: Absolute Maximum Ratings Parameter Symbol Value Units
Photodiode Bias Voltage VOP 0 V Operating Temperature TOp 0 … 70 °C Soldering Temperature
3
TP 260 °C
Note 1:
Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device.
Note 2:
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note 3:
5 seconds, leads only.
Table 4: Amplifier Specifications Parameter Symbol Minimum Typical Maximum Units
Bias Current
1
30 pA Offset Current 3 pA Offset Voltage
2
3 mV Offset Voltage Drift 5 µV/°C Output Resistance 250 Ω Slew Rate 12 V/µs Amplifier Supply Voltage ±5 ±18 V Amplifier Supply Current 5 mA Power Consumption 150 mW
Note 1:
Doubles for every 10 ⁰C increase in operating temperature.
Note 2:
Can be adjusted to 0 V with external trim potentiometer, please refer to Figure 2. www.excelitas.com Page 2 of 7 HPR Series - HPR-1100BGH_Rev.2021.04
