NXP Semiconductors. PMN50XP. P-channel TrenchMOS extremely low level FET. Pinning information. Table 2. Pinning. Pin. Symbol
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 link to page 3 link to page 3

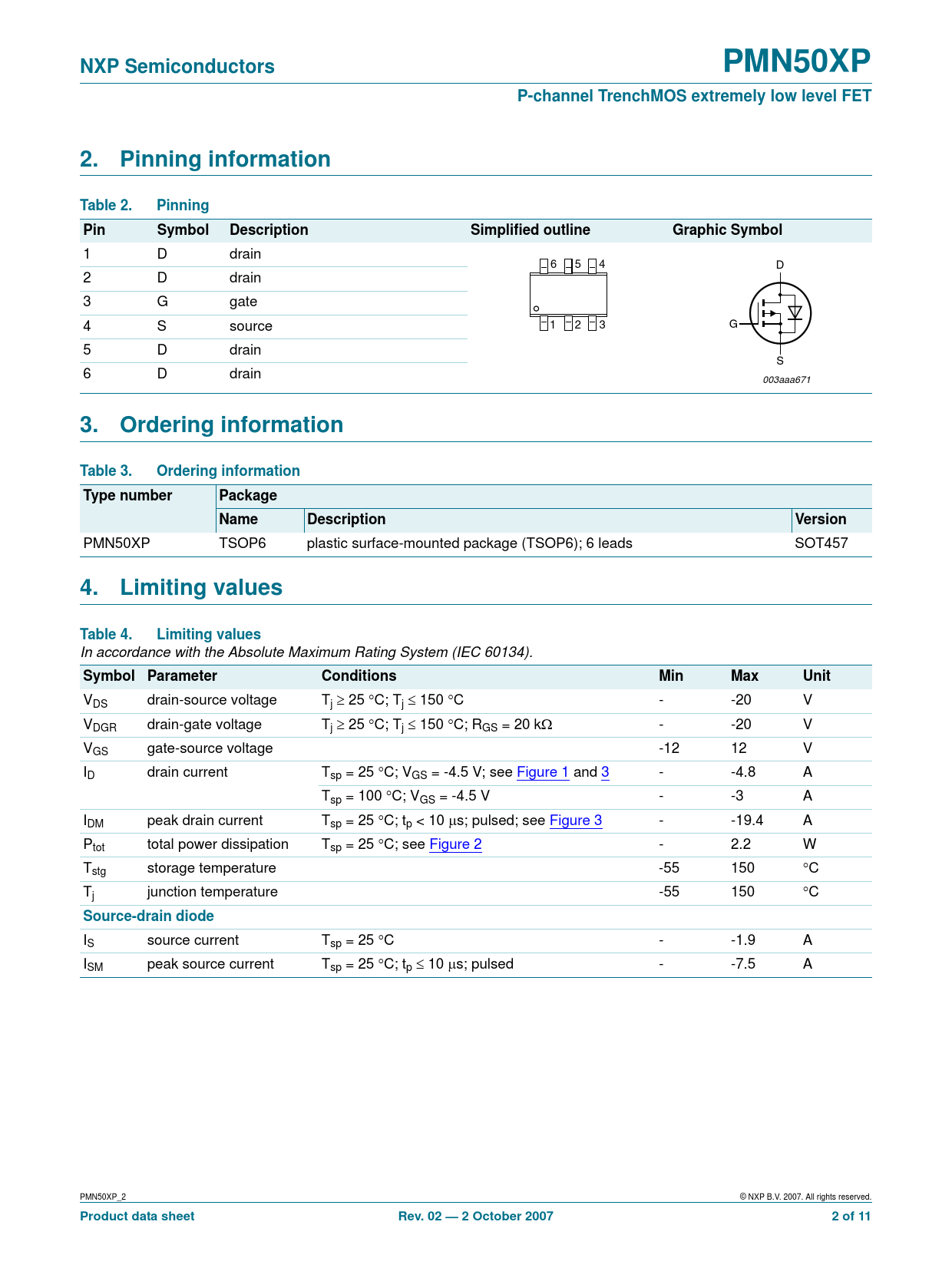

NXP Semiconductors PMN50XP P-channel TrenchMOS extremely low level FET 2. Pinning information Table 2. Pinning Pin Symbol Description Simplified outline Graphic Symbol
1 D drain 6 5 4 D 2 D drain 3 G gate 4 S source 1 2 3 G 5 D drain S 6 D drain 003aaa671
3. Ordering information Table 3. Ordering information Type number Package Name Description Version
PMN50XP TSOP6 plastic surface-mounted package (TSOP6); 6 leads SOT457
4. Limiting values Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
V ≥ ≤ DS drain-source voltage Tj 25 °C; Tj 150 °C - -20 V V ≥ ≤ DGR drain-gate voltage Tj 25 °C; Tj 150 °C; RGS = 20 kΩ - -20 V VGS gate-source voltage -12 12 V ID drain current Tsp = 25 °C; VGS = -4.5 V; see Figure 1 and 3 - -4.8 A Tsp = 100 °C; VGS = -4.5 V - -3 A IDM peak drain current Tsp = 25 °C; tp < 10 μs; pulsed; see Figure 3 - -19.4 A Ptot total power dissipation Tsp = 25 °C; see Figure 2 - 2.2 W Tstg storage temperature -55 150 °C Tj junction temperature -55 150 °C
Source-drain diode
IS source current Tsp = 25 °C - -1.9 A I ≤ SM peak source current Tsp = 25 °C; tp 10 μs; pulsed - -7.5 A PMN50XP_2 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 02 — 2 October 2007 2 of 11
