Datasheet ESDCAN03-2BM3Y (STMicroelectronics) - 3
| Manufacturer | STMicroelectronics |
| Description | Automotive dual-line TVS in DFN for CAN bus |
| Pages / Page | 15 / 3 — ESDCAN03-2BM3Y. Characteristics. Table 2. Electrical characteristics … |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |

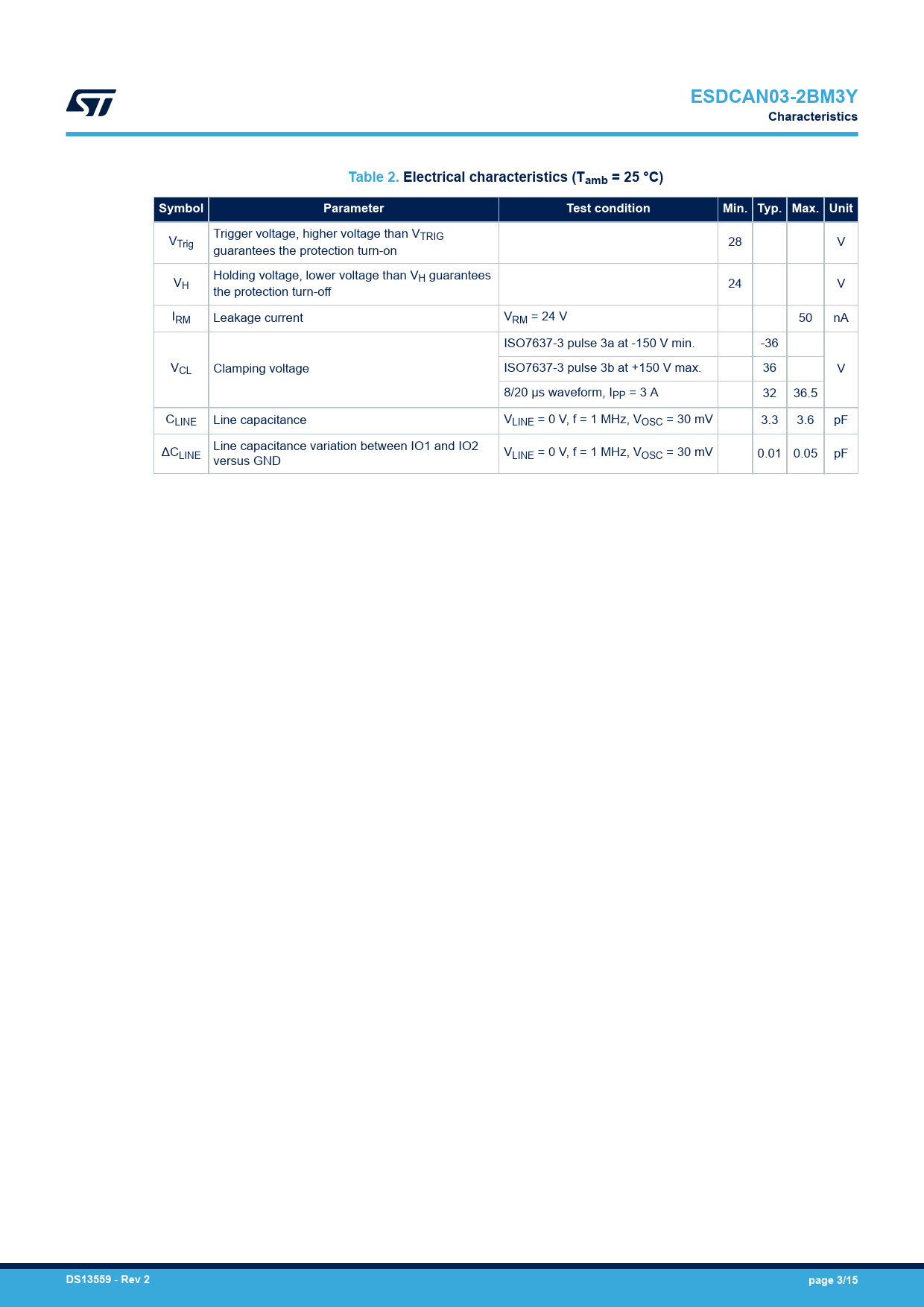

ESDCAN03-2BM3Y. Characteristics. Table 2. Electrical characteristics (Tamb = 25 °C). Symbol. Parameter. Test condition
Model Line for this Datasheet
Text Version of Document
ESDCAN03-2BM3Y Characteristics Table 2. Electrical characteristics (Tamb = 25 °C) Symbol Parameter Test condition Min. Typ. Max. Unit
Trigger voltage, higher voltage than V V TRIG Trig 28 V guarantees the protection turn-on Holding voltage, lower voltage than V V H guarantees H 24 V the protection turn-off IRM Leakage current VRM = 24 V 50 nA ISO7637-3 pulse 3a at -150 V min. -36 VCL Clamping voltage ISO7637-3 pulse 3b at +150 V max. 36 V 8/20 µs waveform, IPP = 3 A 32 36.5 CLINE Line capacitance VLINE = 0 V, f = 1 MHz, VOSC = 30 mV 3.3 3.6 pF ΔC Line capacitance variation between IO1 and IO2 LINE V versus GND LINE = 0 V, f = 1 MHz, VOSC = 30 mV 0.01 0.05 pF
