ESDCAN03-2BM3Y. Package information. 2.1. QFN-3L 1.1 x 1.0 x 0.55 package information
Model Line for this Datasheet
Text Version of Document
ESDCAN03-2BM3Y Package information 2 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.

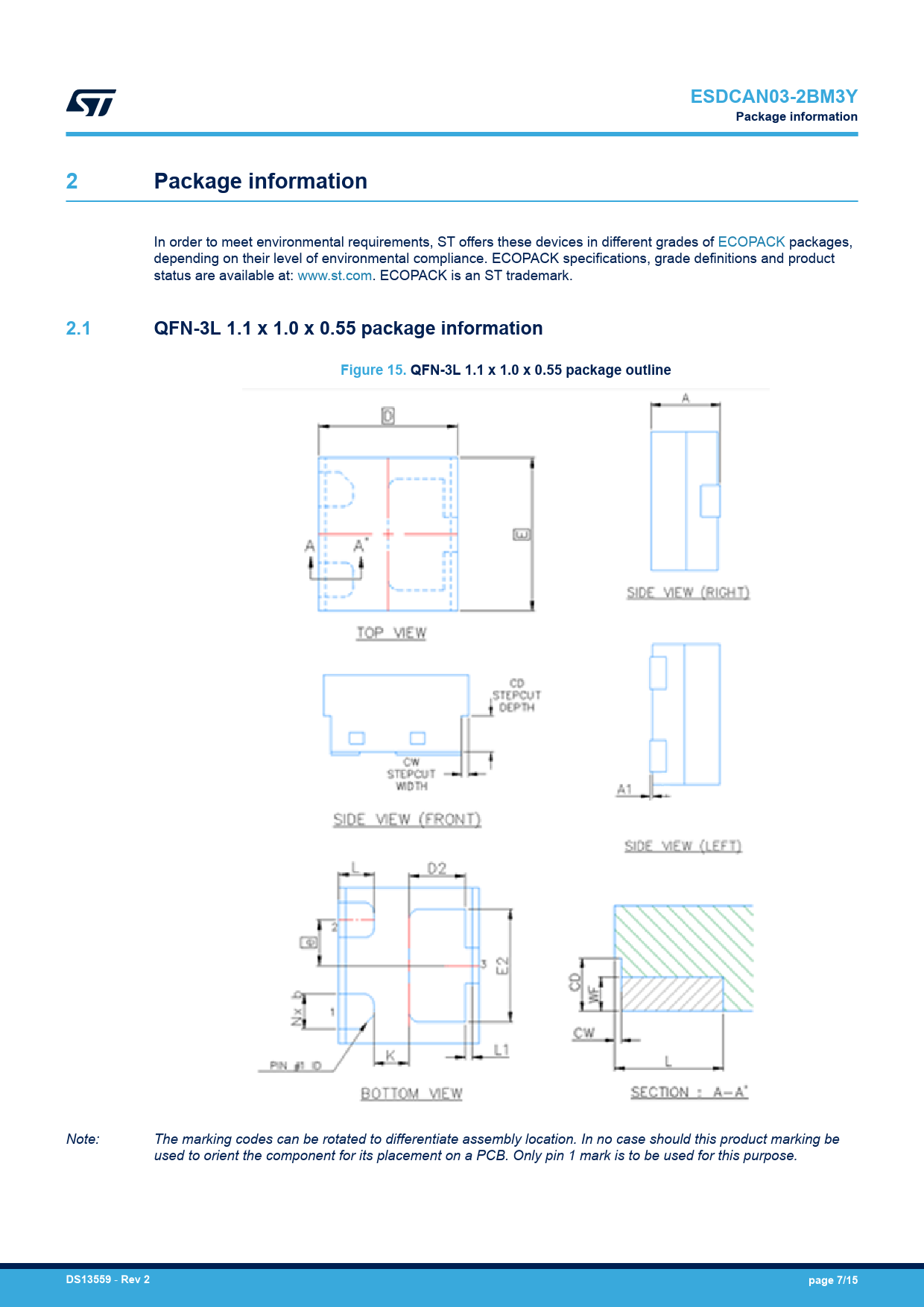

2.1 QFN-3L 1.1 x 1.0 x 0.55 package information Figure 15. QFN-3L 1.1 x 1.0 x 0.55 package outline
Note: The marking codes can be rotated to differentiate assembly location. In no case should this product marking be used to orient the component for its placement on a PCB. Only pin 1 mark is to be used for this purpose.
