Datasheet ESDCAN03-2BM3Y (STMicroelectronics) - 8
| Manufacturer | STMicroelectronics |
| Description | Automotive dual-line TVS in DFN for CAN bus |
| Pages / Page | 15 / 8 — ESDCAN03-2BM3Y. QFN-3L 1.1 x 1.0 x 0.55 package information. Table 3. … |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |
ESDCAN03-2BM3Y. QFN-3L 1.1 x 1.0 x 0.55 package information. Table 3. QFN-3L 1.1 x 1.0 x 0.55 package mechanical data
Model Line for this Datasheet
Text Version of Document
link to page 8

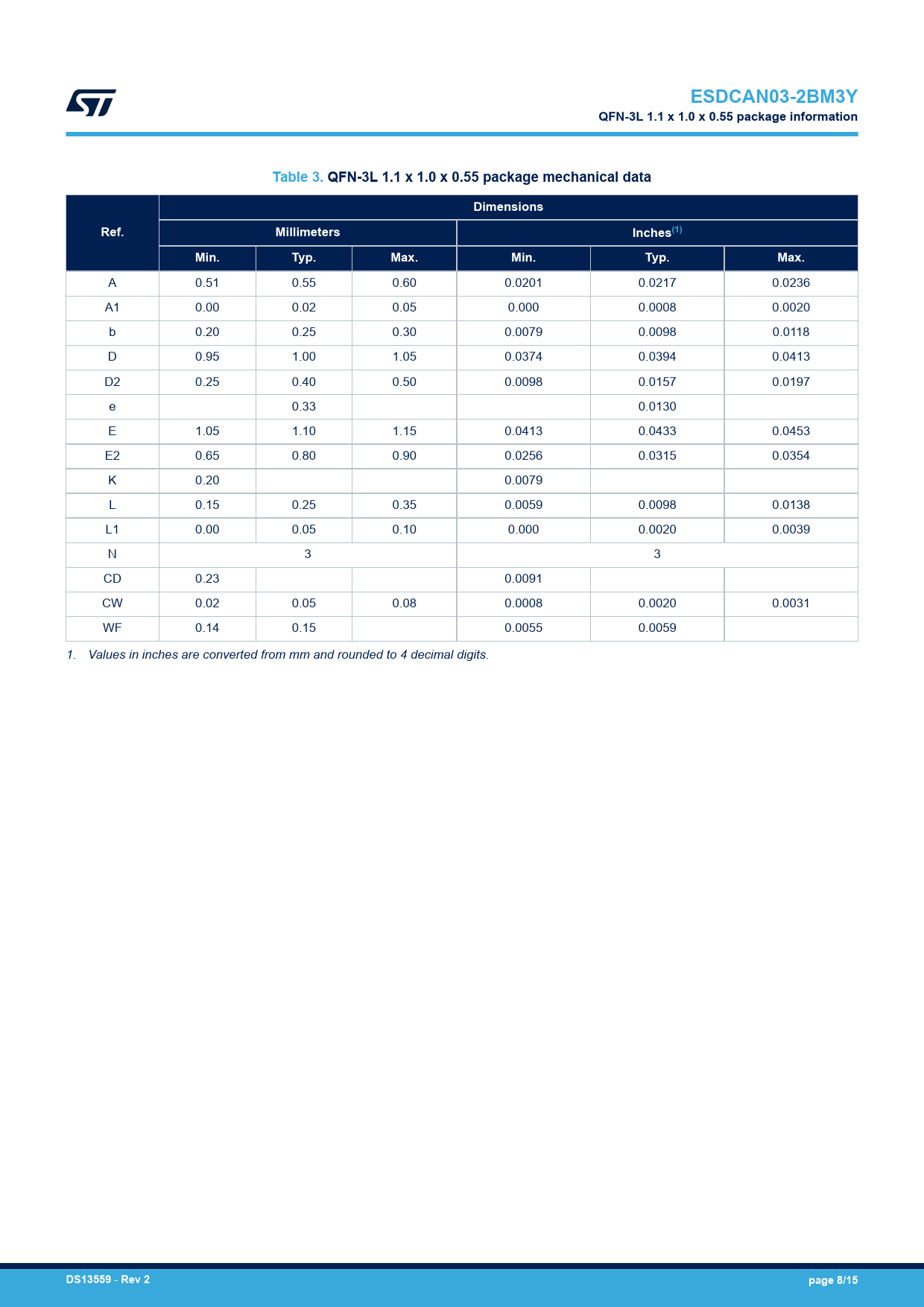

ESDCAN03-2BM3Y QFN-3L 1.1 x 1.0 x 0.55 package information Table 3. QFN-3L 1.1 x 1.0 x 0.55 package mechanical data Dimensions Ref. Millimeters Inches(1) Min. Typ. Max. Min. Typ. Max.
A 0.51 0.55 0.60 0.0201 0.0217 0.0236 A1 0.00 0.02 0.05 0.000 0.0008 0.0020 b 0.20 0.25 0.30 0.0079 0.0098 0.0118 D 0.95 1.00 1.05 0.0374 0.0394 0.0413 D2 0.25 0.40 0.50 0.0098 0.0157 0.0197 e 0.33 0.0130 E 1.05 1.10 1.15 0.0413 0.0433 0.0453 E2 0.65 0.80 0.90 0.0256 0.0315 0.0354 K 0.20 0.0079 L 0.15 0.25 0.35 0.0059 0.0098 0.0138 L1 0.00 0.05 0.10 0.000 0.0020 0.0039 N 3 3 CD 0.23 0.0091 CW 0.02 0.05 0.08 0.0008 0.0020 0.0031 WF 0.14 0.15 0.0055 0.0059 1. Values in inches are converted from mm and rounded to 4 decimal digits.
DS13559
-
Rev 2 page 8/15
