Datasheet BUK7S0R5-40H (Nexperia) - 4
| Manufacturer | Nexperia |
| Description | N-channel 40 V, 0.5 mOhm standard level MOSFET in LFPAK88 |
| Pages / Page | 13 / 4 — Nexperia. BUK7S0R5-40H. N-channel 40 V, 0.5 mOhm standard level MOSFET in … |
| Revision | 06042021 |
| File Format / Size | PDF / 326 Kb |
| Document Language | English |
Nexperia. BUK7S0R5-40H. N-channel 40 V, 0.5 mOhm standard level MOSFET in LFPAK88
Model Line for this Datasheet
Text Version of Document
link to page 5

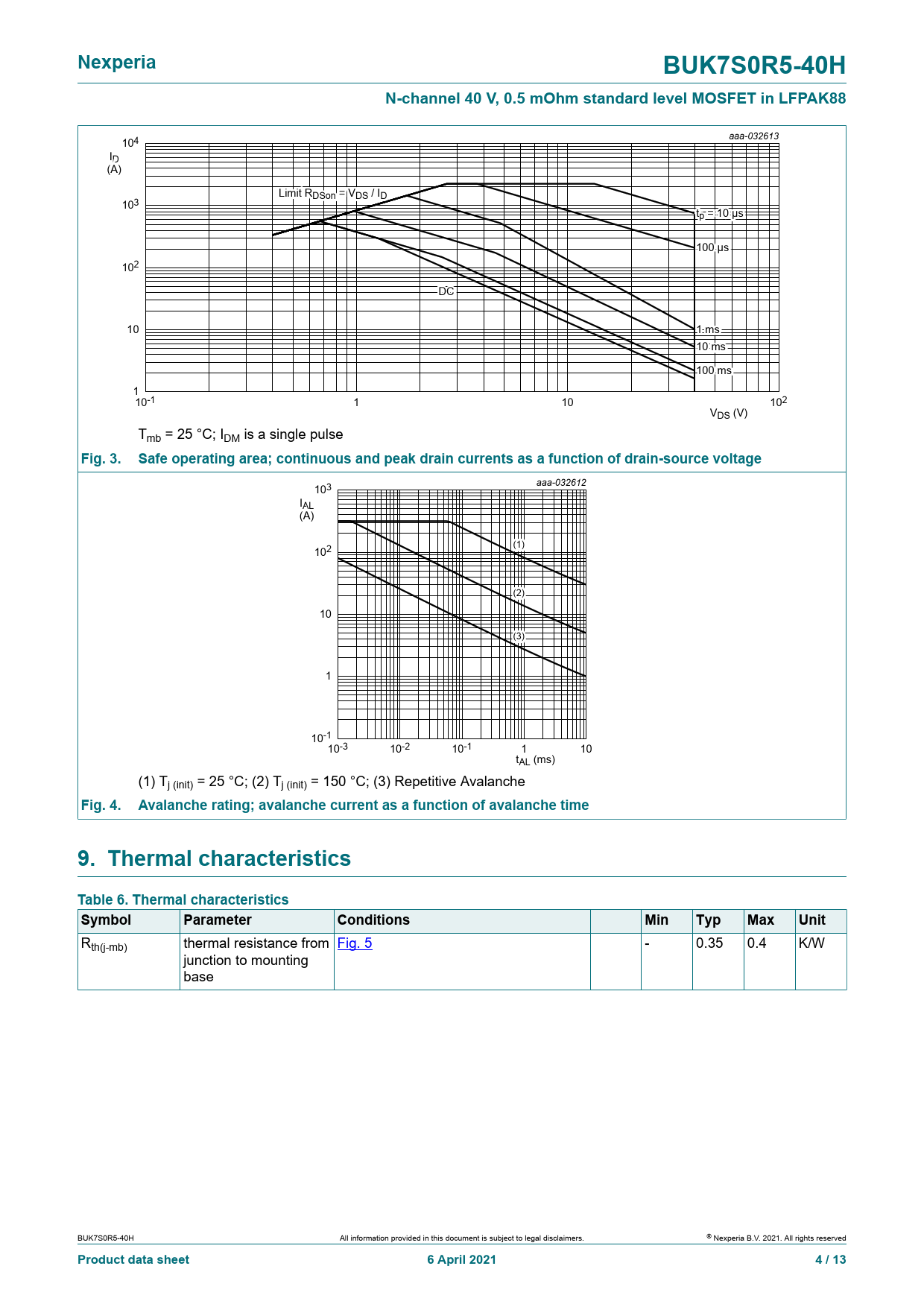

Nexperia BUK7S0R5-40H N-channel 40 V, 0.5 mOhm standard level MOSFET in LFPAK88
aaa-032613 104 ID (A ( ) A Li L mit R DSon o n = V DS / I D I 103 tpt p= = 10 1 0 µ s µ 10 1 0 0 0 µ s 102 DC 10 1 1 m s m 10 1 0 m s m 10 1 0 0 0 m s m 110-1 1 10 102 VDS (V) Tmb = 25 °C; IDM is a single pulse
Fig. 3. Safe operating area; continuous and peak drain currents as a function of drain-source voltage
aaa-032612 103 IAL A (A ( ) A (1) 1 102 (2) 2 10 (3) 3 1 10-110-3 10-2 10-1 1 10 tAL (ms) (1) Tj (init) = 25 °C; (2) Tj (init) = 150 °C; (3) Repetitive Avalanche
Fig. 4. Avalanche rating; avalanche current as a function of avalanche time 9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-mb) thermal resistance from Fig. 5 - 0.35 0.4 K/W junction to mounting base BUK7S0R5-40H All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 6 April 2021 4 / 13
