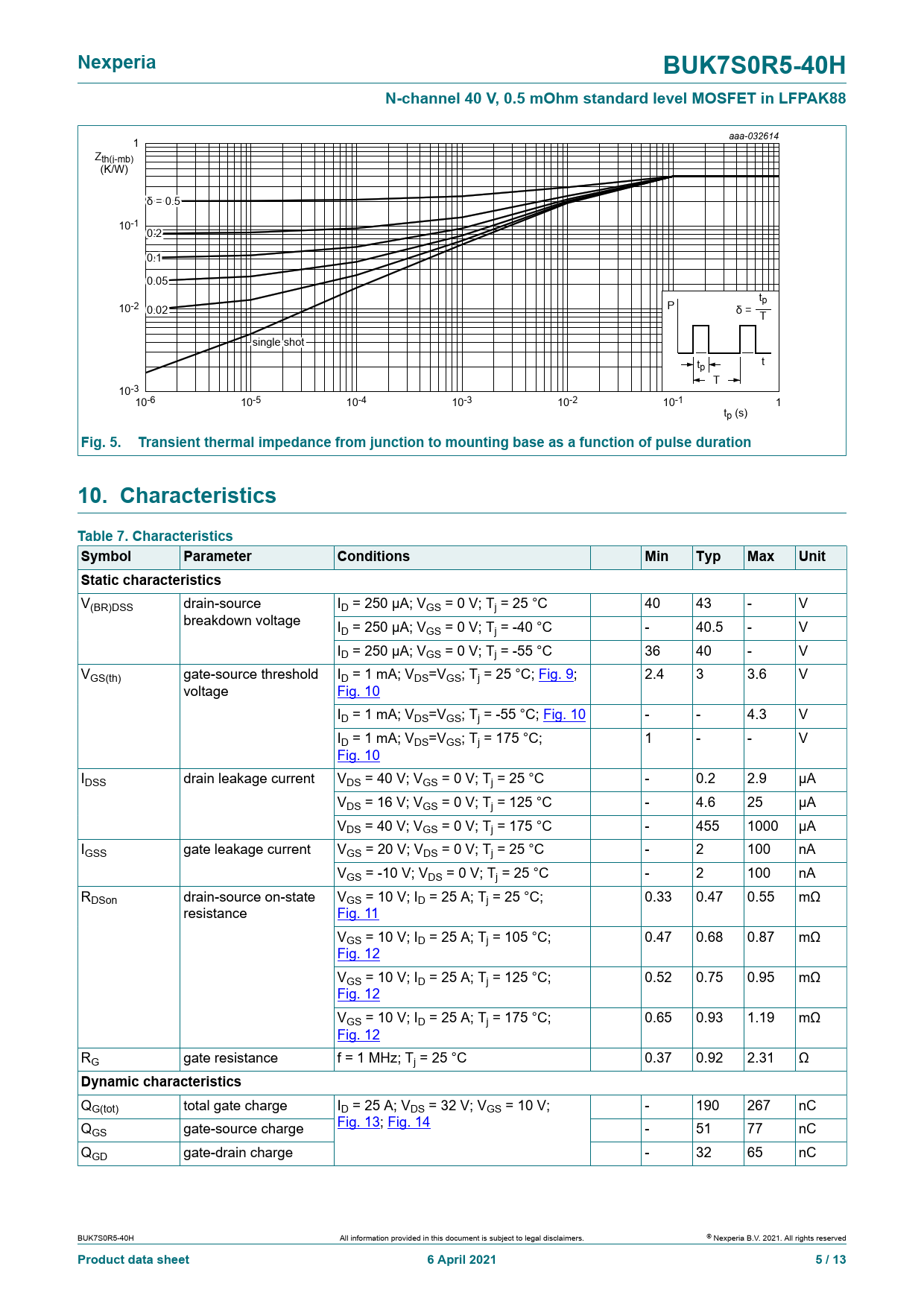

Nexperia BUK7S0R5-40H N-channel 40 V, 0.5 mOhm standard level MOSFET in LFPAK88
aaa-032614 1 Zt Z ht(j(-m - b) b (K/ K W) W δ δ = = 0 .5 . 10-1 0.02 0. 0 1 0. 0 05 0 tp 10-2 0. 0 02 0 P δ = T sing n l g e e sh s ot o t tp T 10-310-6 10-5 10-4 10-3 10-2 10-1 1 tp (s)
Fig. 5. Transient thermal impedance from junction to mounting base as a function of pulse duration 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics
V(BR)DSS drain-source ID = 250 µA; VGS = 0 V; Tj = 25 °C 40 43 - V breakdown voltage ID = 250 µA; VGS = 0 V; Tj = -40 °C - 40.5 - V ID = 250 µA; VGS = 0 V; Tj = -55 °C 36 40 - V VGS(th) gate-source threshold ID = 1 mA; VDS=VGS; Tj = 25 °C; Fig. 9; 2.4 3 3.6 V voltage Fig. 10 ID = 1 mA; VDS=VGS; Tj = -55 °C; Fig. 10 - - 4.3 V ID = 1 mA; VDS=VGS; Tj = 175 °C; 1 - - V Fig. 10 IDSS drain leakage current VDS = 40 V; VGS = 0 V; Tj = 25 °C - 0.2 2.9 µA VDS = 16 V; VGS = 0 V; Tj = 125 °C - 4.6 25 µA VDS = 40 V; VGS = 0 V; Tj = 175 °C - 455 1000 µA IGSS gate leakage current VGS = 20 V; VDS = 0 V; Tj = 25 °C - 2 100 nA VGS = -10 V; VDS = 0 V; Tj = 25 °C - 2 100 nA RDSon drain-source on-state VGS = 10 V; ID = 25 A; Tj = 25 °C; 0.33 0.47 0.55 mΩ resistance Fig. 11 VGS = 10 V; ID = 25 A; Tj = 105 °C; 0.47 0.68 0.87 mΩ Fig. 12 VGS = 10 V; ID = 25 A; Tj = 125 °C; 0.52 0.75 0.95 mΩ Fig. 12 VGS = 10 V; ID = 25 A; Tj = 175 °C; 0.65 0.93 1.19 mΩ Fig. 12 RG gate resistance f = 1 MHz; Tj = 25 °C 0.37 0.92 2.31 Ω
Dynamic characteristics
QG(tot) total gate charge ID = 25 A; VDS = 32 V; VGS = 10 V; - 190 267 nC Q Fig. 13; Fig. 14 GS gate-source charge - 51 77 nC QGD gate-drain charge - 32 65 nC BUK7S0R5-40H All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet 6 April 2021 5 / 13
