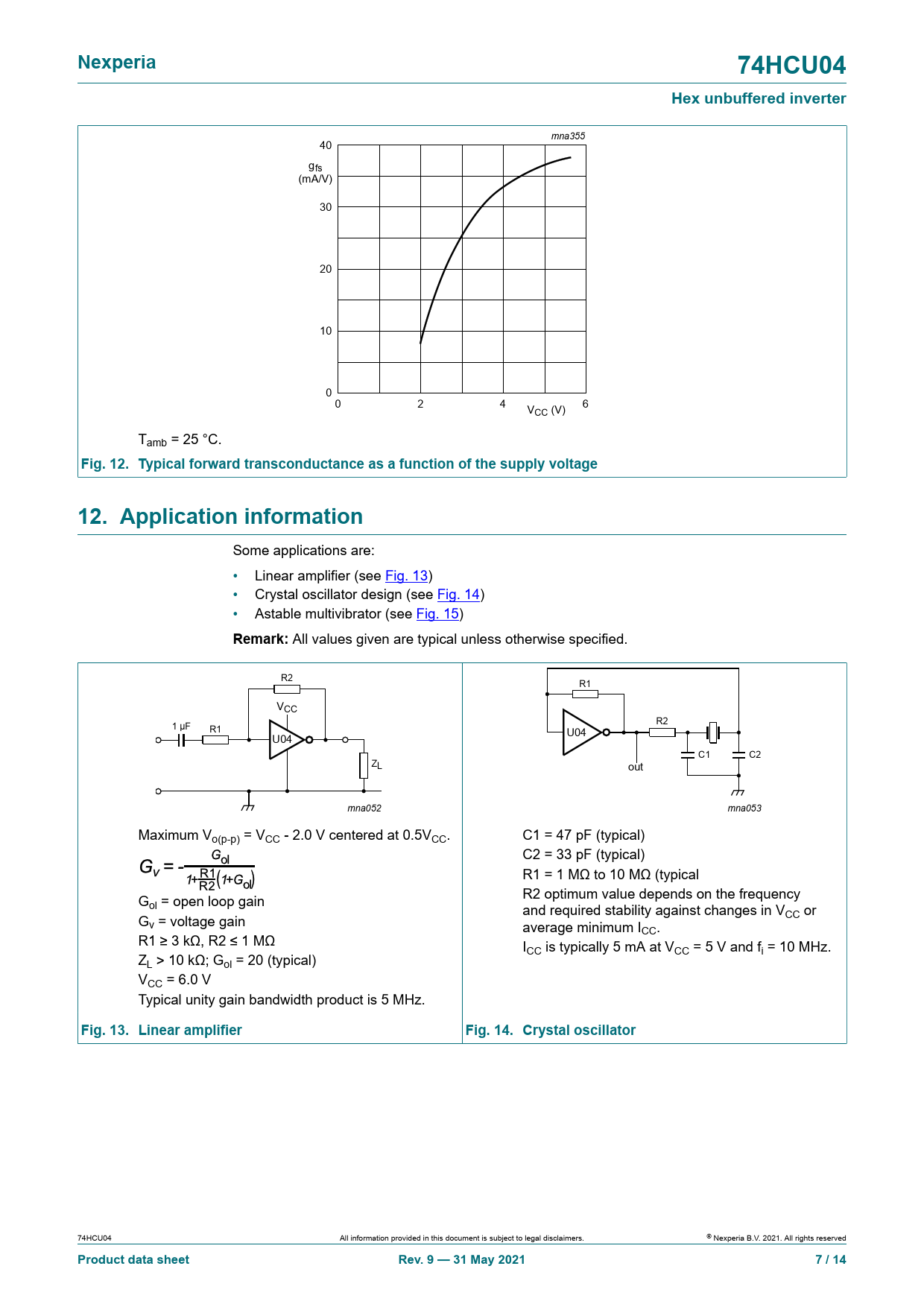

Nexperia 74HCU04 Hex unbuffered inverter
mna355 40 gfs (mA/V) 30 20 10 0 0 2 4 6 VCC (V) Tamb = 25 °C.
Fig. 12. Typical forward transconductance as a function of the supply voltage 12. Application information
Some applications are: • Linear amplifier (see Fig. 13) • Crystal oscillator design (see Fig. 14) • Astable multivibrator (see Fig. 15)
Remark:
All values given are typical unless otherwise specified. R2 R1 VCC 1 µF R2 R1 U04 U04 C1 C2 ZL out mna052 mna053 Maximum Vo(p-p) = VCC - 2.0 V centered at 0.5VCC. C1 = 47 pF (typical) C2 = 33 pF (typical) R1 = 1 MΩ to 10 MΩ (typical G R2 optimum value depends on the frequency ol = open loop gain and required stability against changes in V G CC or v = voltage gain average minimum ICC. R1 ≥ 3 kΩ, R2 ≤ 1 MΩ ICC is typically 5 mA at VCC = 5 V and fi = 10 MHz. ZL > 10 kΩ; Gol = 20 (typical) VCC = 6.0 V Typical unity gain bandwidth product is 5 MHz.
Fig. 13. Linear amplifier Fig. 14. Crystal oscillator
74HCU04 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2021. Al rights reserved
Product data sheet Rev. 9 — 31 May 2021 7 / 14
