Datasheet RDA5807M (RDA Microelectronics) - 6
| Manufacturer | RDA Microelectronics |
| Description | Single-Chip Broadcast FM Radio Tuner |
| Pages / Page | 23 / 6 — Electrical Characteristics. Table 3-1. DC Electrical Specification … |
| Revision | 1.0 |
| File Format / Size | PDF / 775 Kb |
| Document Language | English |
Electrical Characteristics. Table 3-1. DC Electrical Specification (Recommended Operation Conditions):. SYMBOL. DESCRIPTION. MIN
Model Line for this Datasheet
Text Version of Document
RDA Microelectronics, Inc. RDA5807M FM Tuner V1.0

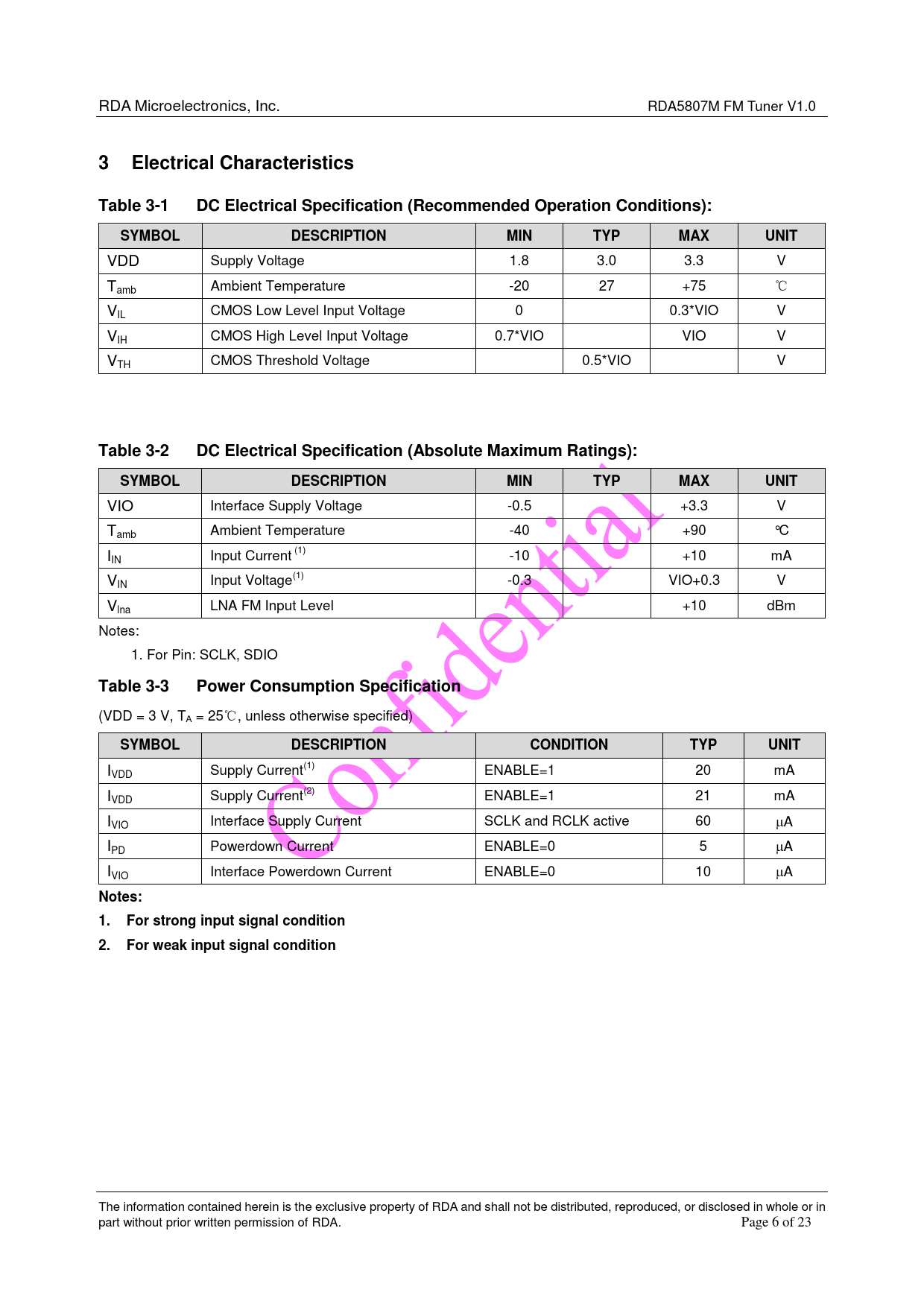

3 Electrical Characteristics Table 3-1 DC Electrical Specification (Recommended Operation Conditions): SYMBOL DESCRIPTION MIN TYP MAX UNIT
VDD Supply Voltage 1.8 3.0 3.3 V Tamb Ambient Temperature -20 27 +75 ℃ VIL CMOS Low Level Input Voltage 0 0.3*VIO V VIH CMOS High Level Input Voltage 0.7*VIO VIO V VTH CMOS Threshold Voltage 0.5*VIO V
Table 3-2 DC Electrical Specification (Absolute Maximum Ratings): SYMBOL DESCRIPTION MIN TYP MAX UNIT
VIO Interface Supply Voltage -0.5 +3.3 V Tamb Ambient Temperature -40 +90 °C IIN Input Current (1) -10 +10 mA VIN Input Voltage(1) -0.3 VIO+0.3 V Vlna LNA FM Input Level +10 dBm Notes: 1. For Pin: SCLK, SDIO
Table 3-3 Power Consumption Specification
(VDD = 3 V, TA = 25℃, unless otherwise specified)
SYMBOL DESCRIPTION CONDITION TYP UNIT
IVDD Supply Current(1) ENABLE=1 20 mA IVDD Supply Current(2) ENABLE=1 21 mA IVIO Interface Supply Current SCLK and RCLK active 60 A IPD Powerdown Current ENABLE=0 5 A IVIO Interface Powerdown Current ENABLE=0 10 A
Notes: 1. For strong input signal condition 2. For weak input signal condition
The information contained herein is the exclusive property of RDA and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of RDA. Page 6 of 23
3 Electrical Characteristics Table 3-1 DC Electrical Specification (Recommended Operation Conditions): SYMBOL DESCRIPTION MIN TYP MAX UNIT
VDD Supply Voltage 1.8 3.0 3.3 V Tamb Ambient Temperature -20 27 +75 ℃ VIL CMOS Low Level Input Voltage 0 0.3*VIO V VIH CMOS High Level Input Voltage 0.7*VIO VIO V VTH CMOS Threshold Voltage 0.5*VIO V
Table 3-2 DC Electrical Specification (Absolute Maximum Ratings): SYMBOL DESCRIPTION MIN TYP MAX UNIT
VIO Interface Supply Voltage -0.5 +3.3 V Tamb Ambient Temperature -40 +90 °C IIN Input Current (1) -10 +10 mA VIN Input Voltage(1) -0.3 VIO+0.3 V Vlna LNA FM Input Level +10 dBm Notes: 1. For Pin: SCLK, SDIO
Table 3-3 Power Consumption Specification
(VDD = 3 V, TA = 25℃, unless otherwise specified)
SYMBOL DESCRIPTION CONDITION TYP UNIT
IVDD Supply Current(1) ENABLE=1 20 mA IVDD Supply Current(2) ENABLE=1 21 mA IVIO Interface Supply Current SCLK and RCLK active 60 A IPD Powerdown Current ENABLE=0 5 A IVIO Interface Powerdown Current ENABLE=0 10 A
Notes: 1. For strong input signal condition 2. For weak input signal condition
The information contained herein is the exclusive property of RDA and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of RDA. Page 6 of 23
