4 Electrical Characteristics. Table 4-1. DC Electrical Specification (Recommended Operation Conditions):. SYMBOL. DESCRIPTION
Model Line for this Datasheet
Text Version of Document
RDA Microelectronics, Inc. RDA5807NP FM Tuner V1.2

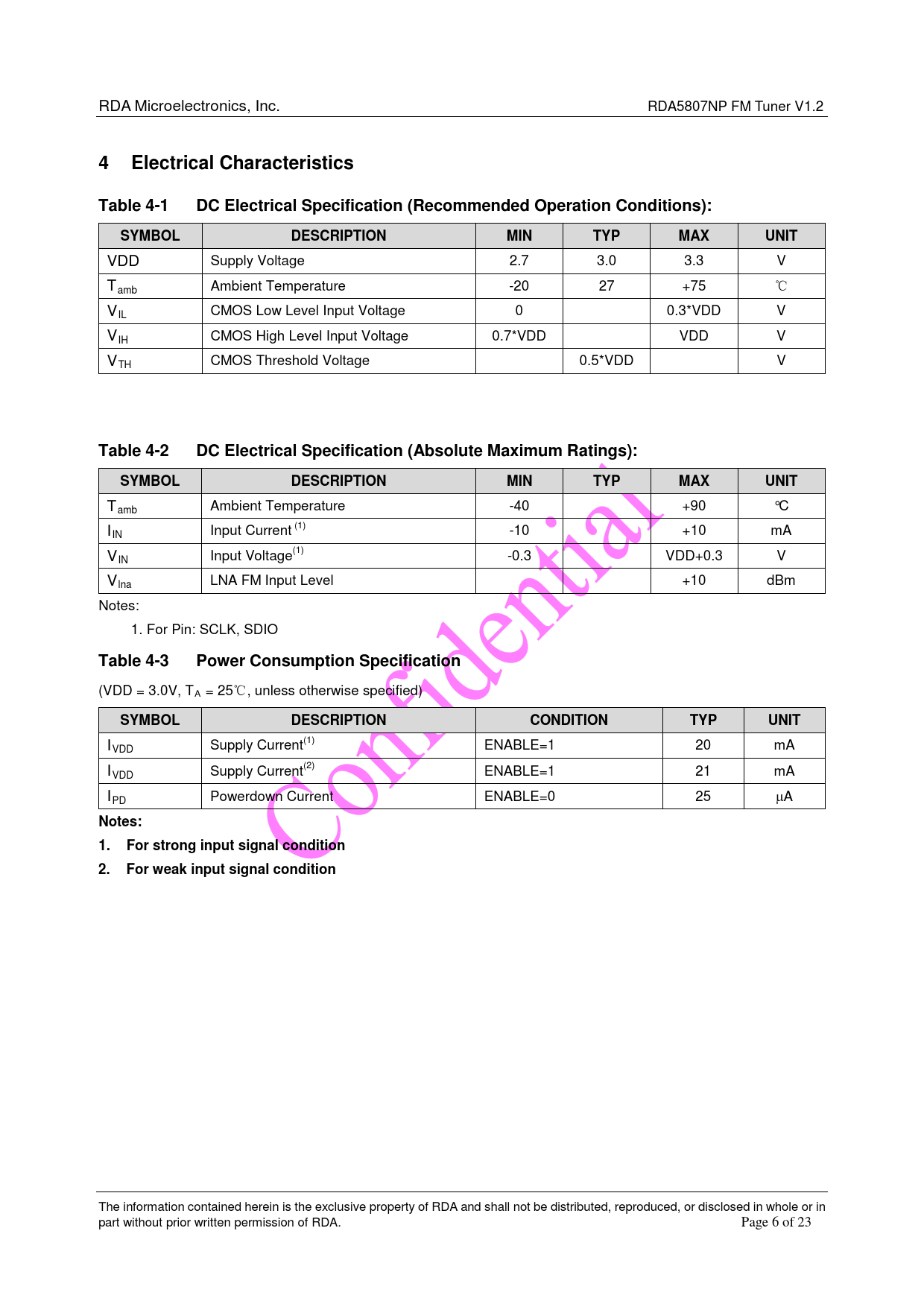

4 Electrical Characteristics Table 4-1 DC Electrical Specification (Recommended Operation Conditions): SYMBOL DESCRIPTION MIN TYP MAX UNIT
VDD Supply Voltage 2.7 3.0 3.3 V T Ambient Temperature amb -20 27 +75 ℃ V CMOS Low Level Input Voltage IL 0 0.3*VDD V V CMOS High Level Input Voltage IH 0.7*VDD VDD V V CMOS Threshold Voltage TH 0.5*VDD V
Table 4-2 DC Electrical Specification (Absolute Maximum Ratings): SYMBOL DESCRIPTION MIN TYP MAX UNIT
T Ambient Temperature amb -40 +90 °C I Input Current (1) IN -10 +10 mA V Input Voltage(1) IN -0.3 VDD+0.3 V V LNA FM Input Level lna +10 dBm Notes: 1. For Pin: SCLK, SDIO
Table 4-3 Power Consumption Specification
(VDD = 3.0V, TA = 25℃, unless otherwise specified)
SYMBOL DESCRIPTION CONDITION TYP UNIT
I Supply Current(1) VDD ENABLE=1 20 mA I Supply Current(2) VDD ENABLE=1 21 mA I Powerdown Current PD ENABLE=0 25 µA
Notes: 1. For strong input signal condition 2. For weak input signal condition
