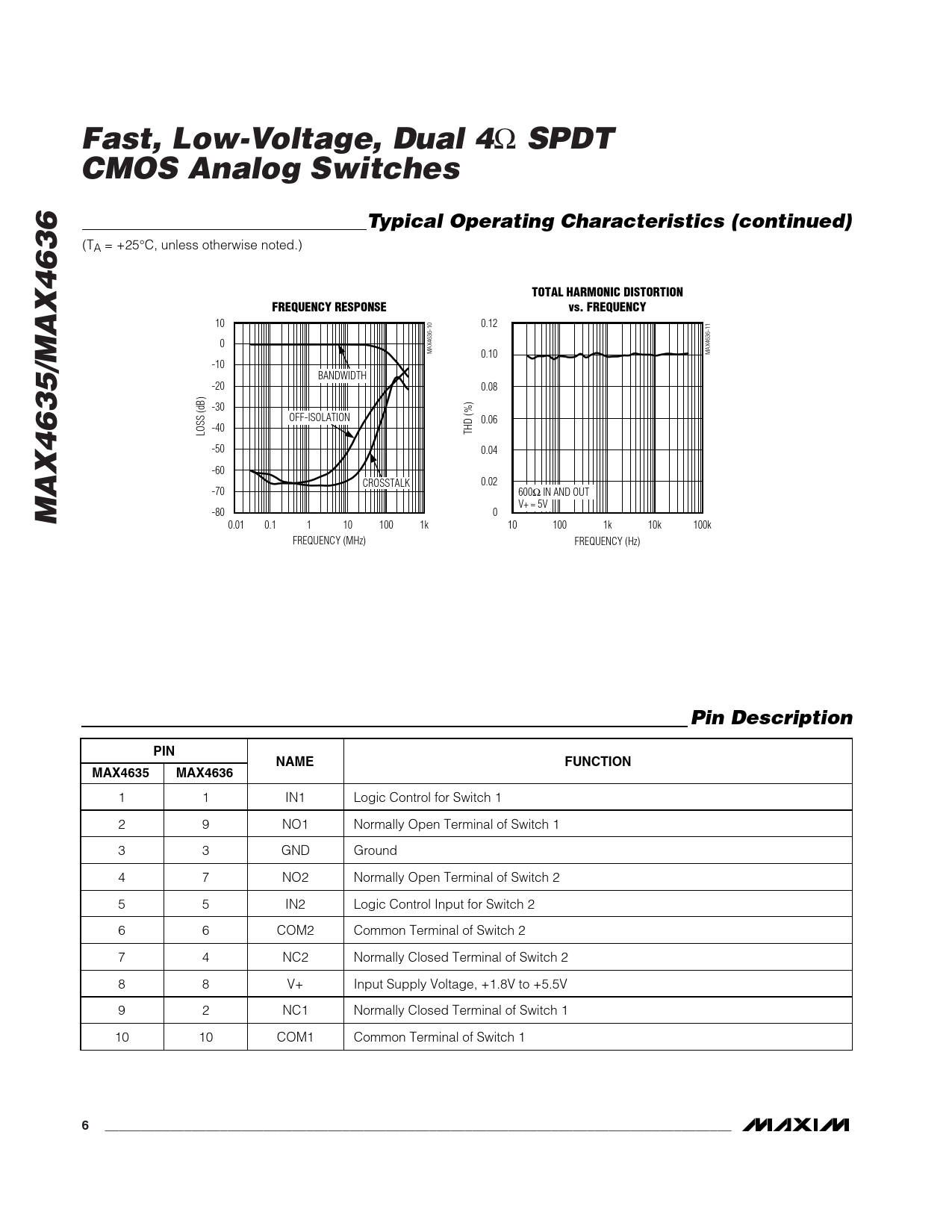

Fast, Low-Voltage, Dual 4
Ω
SPDT CMOS Analog Switches Typical Operating Characteristics (continued)
(TA = +25°C, unless otherwise noted.)
TOTAL HARMONIC DISTORTION FREQUENCY RESPONSE vs. FREQUENCY
10 0.12 0 MAX4636-10 MAX4636-11 0.10 -10 BANDWIDTH -20 0.08 -30 OFF-ISOLATION 0.06 -40 LOSS (dB) THD (%) -50 0.04 -60 CROSSTALK 0.02 -70 600Ω IN AND OUT
MAX4635/MAX4636
V+ = 5V -80 0 0.01 0.1 1 10 100 1k 10 100 1k 10k 100k FREQUENCY (MHz) FREQUENCY (Hz)
Pin Description PIN NAME FUNCTION MAX4635 MAX4636
1 1 IN1 Logic Control for Switch 1 2 9 NO1 Normally Open Terminal of Switch 1 3 3 GND Ground 4 7 NO2 Normally Open Terminal of Switch 2 5 5 IN2 Logic Control Input for Switch 2 6 6 COM2 Common Terminal of Switch 2 7 4 NC2 Normally Closed Terminal of Switch 2 8 8 V+ Input Supply Voltage, +1.8V to +5.5V 9 2 NC1 Normally Closed Terminal of Switch 1 10 10 COM1 Common Terminal of Switch 1
