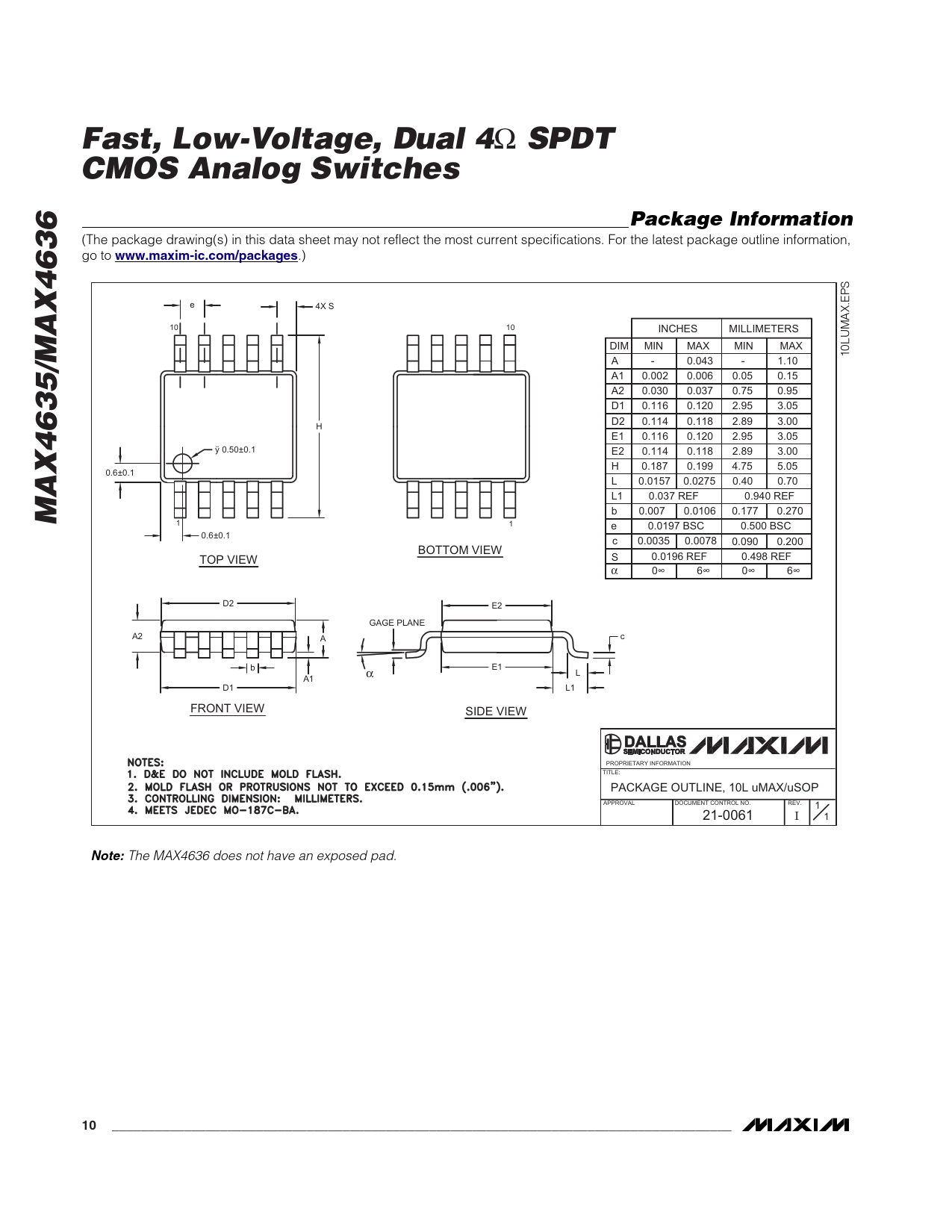

Fast, Low-Voltage, Dual 4. SPDT. CMOS Analog Switches. Package Information. www.maxim-ic.com/packages. MAX4635/MAX4636. Note:
Model Line for this Datasheet
Text Version of Document
Fast, Low-Voltage, Dual 4
Ω
SPDT CMOS Analog Switches Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information, go to
www.maxim-ic.com/packages
.) e 4X S 10 10 INCHES MILLIMETERS DIM MIN MAX MIN MAX 10LUMAX.EPS A - 0.043 - 1.10 A1 0.002 0.006 0.05 0.15 A2 0.030 0.037 0.75 0.95 D1 0.116 0.120 2.95 3.05 D2 0.114 0.118 2.89 3.00 H E1 0.116 0.120 2.95 3.05 ÿ 0.50±0.1 E2 0.114 0.118 2.89 3.00 H 0.187 0.199 4.75 5.05 0.6±0.1 L 0.0157 0.0275 0.40 0.70 L1 0.037 REF 0.940 REF
MAX4635/MAX4636
b 0.007 0.0106 0.177 0.270 1 1 e 0.0197 BSC 0.500 BSC 0.6±0.1 c 0.0035 0.0078 0.090 0.200 BOTTOM VIEW TOP VIEW S 0.0196 REF 0.498 REF α 0∞ 6∞ 0∞ 6∞ D2 E2 GAGE PLANE A2 A c b α E1 L A1 D1 L1 FRONT VIEW SIDE VIEW PROPRIETARY INFORMATION TITLE: PACKAGE OUTLINE, 10L uMAX/uSOP APPROVAL DOCUMENT CONTROL NO. REV. 1 21-0061 I 1
Note:
The MAX4636 does not have an exposed pad.
