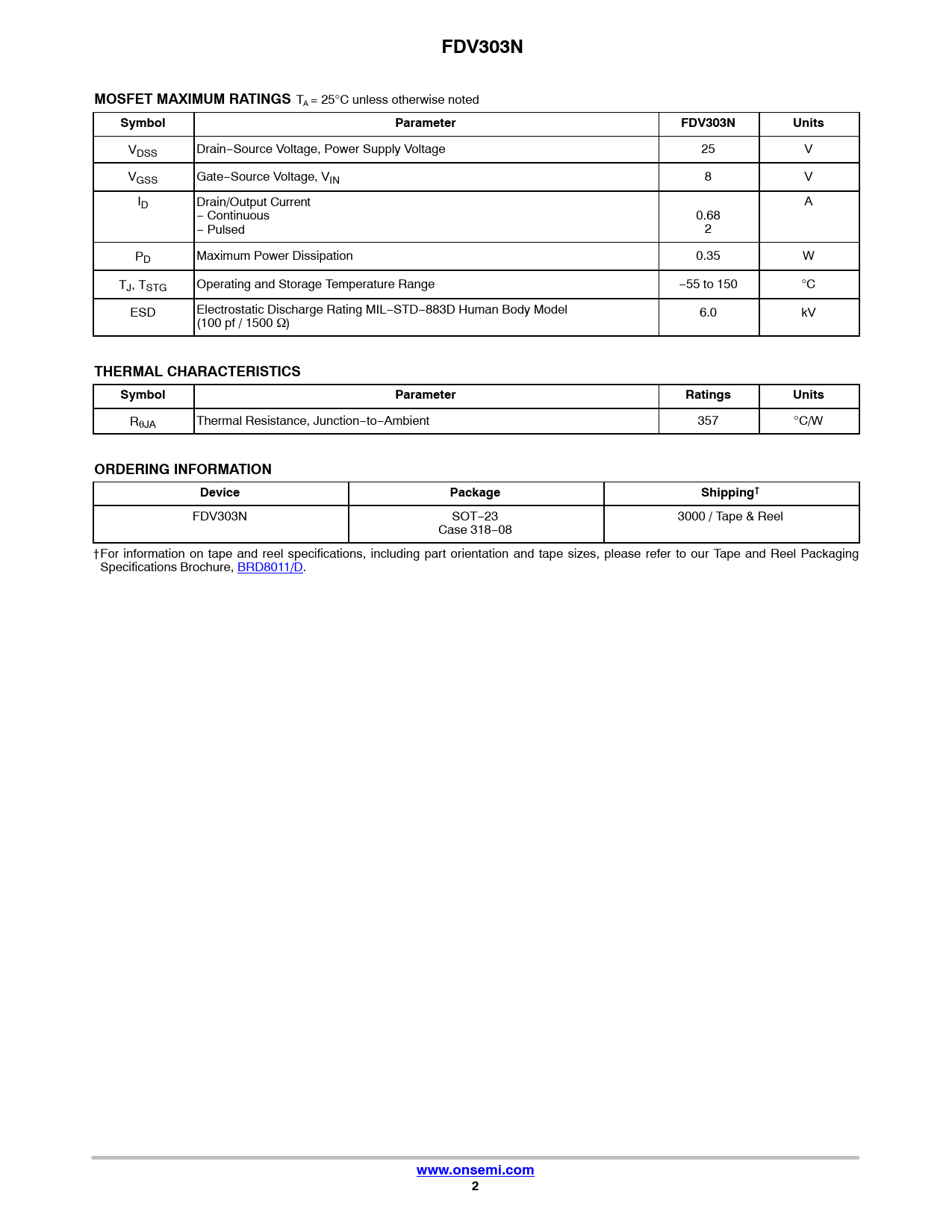

FDV303N MOSFET MAXIMUM RATINGS
TA = 25°C unless otherwise noted
Symbol Parameter FDV303N Units
VDSS Drain−Source Voltage, Power Supply Voltage 25 V VGSS Gate−Source Voltage, VIN 8 V ID Drain/Output Current A − Continuous 0.68 − Pulsed 2 PD Maximum Power Dissipation 0.35 W TJ, TSTG Operating and Storage Temperature Range −55 to 150 °C ESD Electrostatic Discharge Rating MIL−STD−883D Human Body Model 6.0 kV (100 pf / 1500 W)
THERMAL CHARACTERISTICS Symbol Parameter Ratings Units
RθJA Thermal Resistance, Junction−to−Ambient 357 °C/W
ORDERING INFORMATION Device Package Shipping†
FDV303N SOT−23 3000 / Tape & Reel Case 318−08 †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
