Datasheet MAX1595 (Maxim) - 6
| Manufacturer | Maxim |
| Description | Regulated 3.3V/5.0V Step-Up/Step-Down Charge Pump |
| Pages / Page | 7 / 6 — Regulated 3.3V/5.0V Step-Up/ Step-Down Charge Pump. Table 1. Recommended … |
| File Format / Size | PDF / 178 Kb |
| Document Language | English |

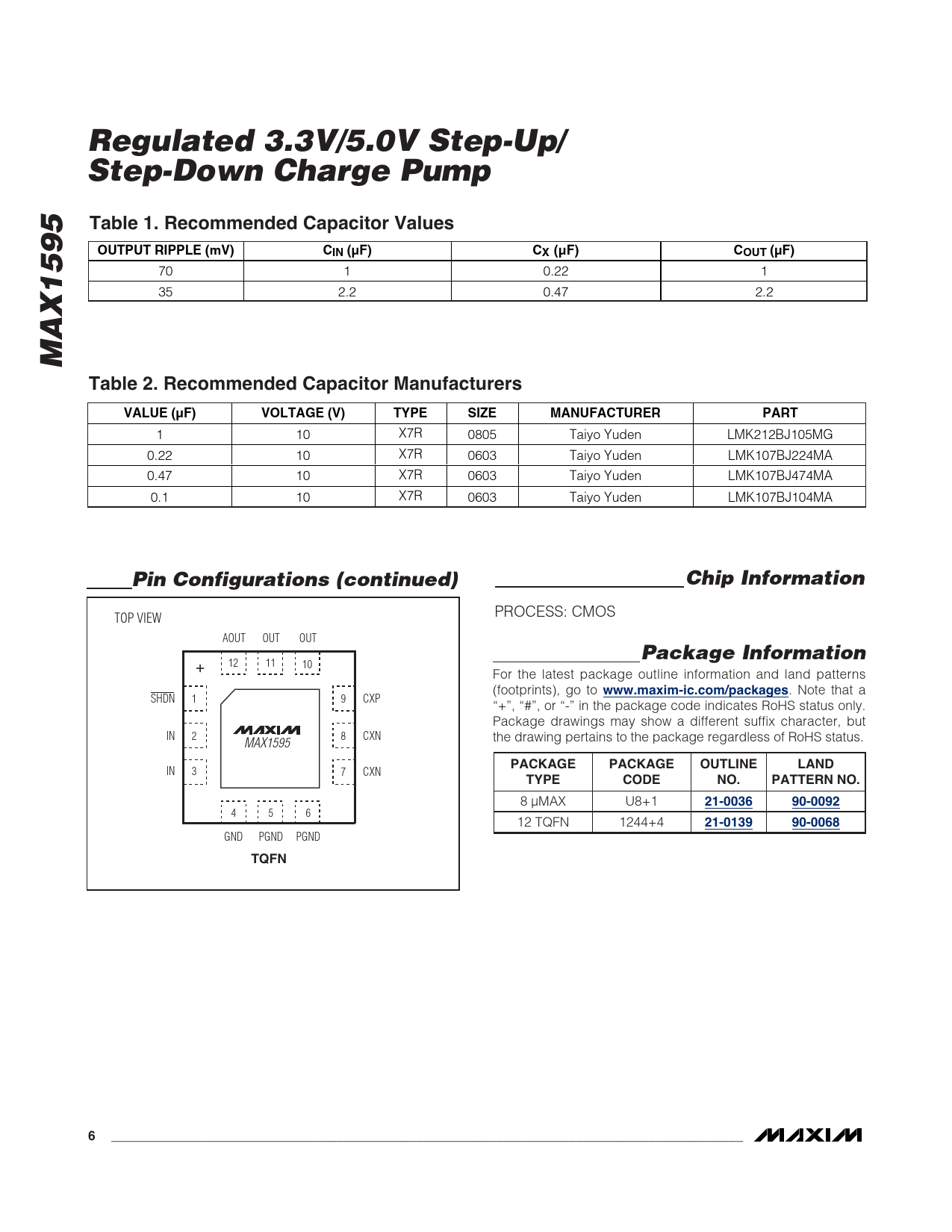

Regulated 3.3V/5.0V Step-Up/ Step-Down Charge Pump. Table 1. Recommended Capacitor Values. OUTPUT RIPPLE (mV). CIN (µF)
Model Line for this Datasheet
Text Version of Document
Regulated 3.3V/5.0V Step-Up/ Step-Down Charge Pump Table 1. Recommended Capacitor Values OUTPUT RIPPLE (mV) CIN (µF) CX (µF) COUT (µF)
70 1 0.22 1 35 2.2 0.47 2.2
MAX1595 Table 2. Recommended Capacitor Manufacturers VALUE (µF) VOLTAGE (V) TYPE SIZE MANUFACTURER PART
1 10 X7R 0805 Taiyo Yuden LMK212BJ105MG 0.22 10 X7R 0603 Taiyo Yuden LMK107BJ224MA 0.47 10 X7R 0603 Taiyo Yuden LMK107BJ474MA 0.1 10 X7R 0603 Taiyo Yuden LMK107BJ104MA
Pin Configurations (continued) Chip Information
PROCESS: CMOS TOP VIEW AOUT OUT OUT
Package Information
12 11 10 For the latest package outline information and land patterns (footprints), go to
www.maxim-ic.com/packages
. Note that a SHDN 1 9 CXP “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but IN 2 8 CXN the drawing pertains to the package regardless of RoHS status. MAX1595
PACKAGE PACKAGE OUTLINE LAND
IN 3 7 CXN
TYPE CODE NO. PATTERN NO.
8 μMAX U8+1
21-0036 90-0092
4 5 6 12 TQFN 1244+4
21-0139 90-0068
GND PGND PGND
TQFN 6 _______________________________________________________________________________________
70 1 0.22 1 35 2.2 0.47 2.2
MAX1595 Table 2. Recommended Capacitor Manufacturers VALUE (µF) VOLTAGE (V) TYPE SIZE MANUFACTURER PART
1 10 X7R 0805 Taiyo Yuden LMK212BJ105MG 0.22 10 X7R 0603 Taiyo Yuden LMK107BJ224MA 0.47 10 X7R 0603 Taiyo Yuden LMK107BJ474MA 0.1 10 X7R 0603 Taiyo Yuden LMK107BJ104MA
Pin Configurations (continued) Chip Information
PROCESS: CMOS TOP VIEW AOUT OUT OUT
Package Information
12 11 10 For the latest package outline information and land patterns (footprints), go to
www.maxim-ic.com/packages
. Note that a SHDN 1 9 CXP “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but IN 2 8 CXN the drawing pertains to the package regardless of RoHS status. MAX1595
PACKAGE PACKAGE OUTLINE LAND
IN 3 7 CXN
TYPE CODE NO. PATTERN NO.
8 μMAX U8+1
21-0036 90-0092
4 5 6 12 TQFN 1244+4
21-0139 90-0068
GND PGND PGND
TQFN 6 _______________________________________________________________________________________
