Datasheet ADG1519 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 3.8 Ω On-Resistance, SPDT Switch |
| Pages / Page | 15 / 7 — ADG1519. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 3. On Resistance as … |
| File Format / Size | PDF / 673 Kb |
| Document Language | English |
ADG1519. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 3. On Resistance as a Function of VS and VD
Model Line for this Datasheet
Text Version of Document
Data Sheet

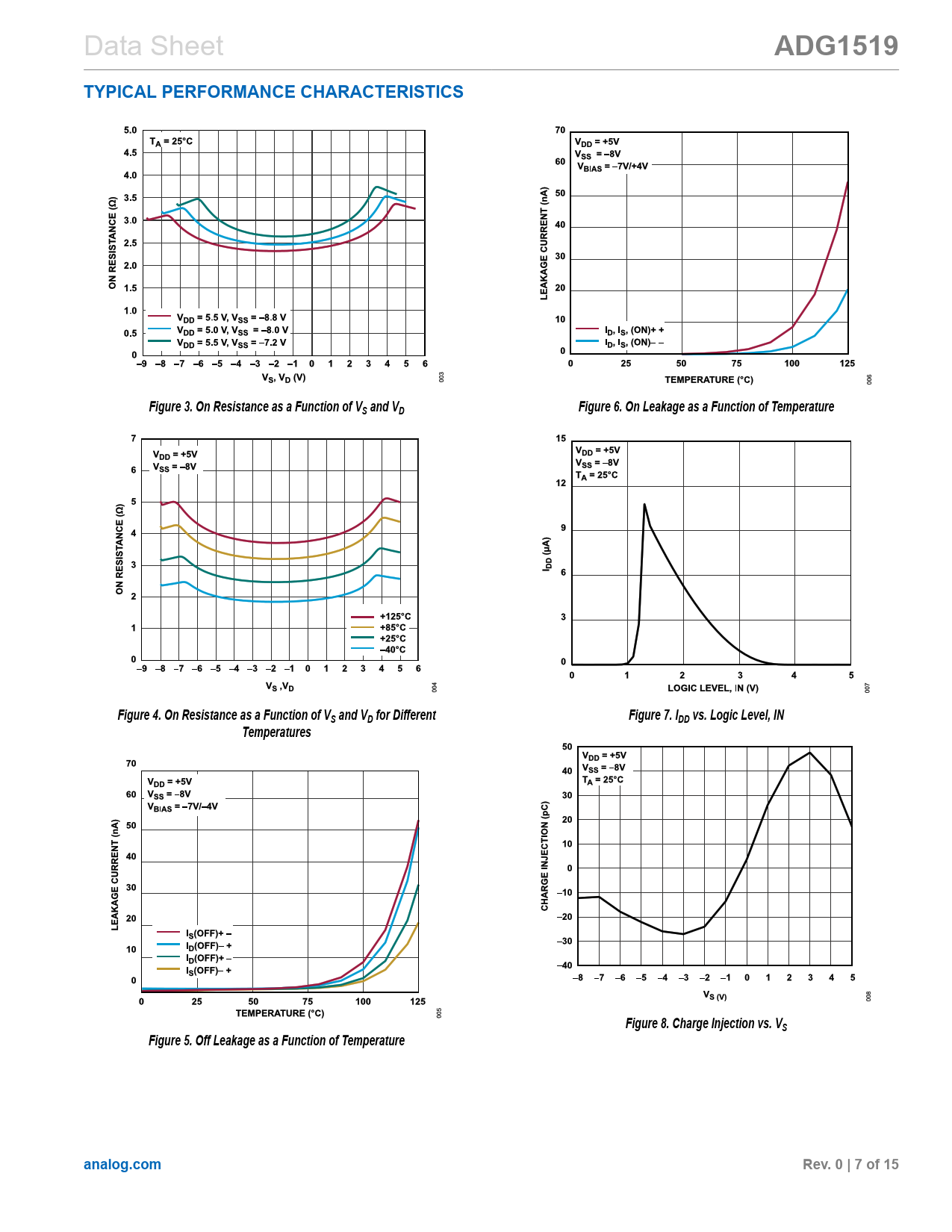

ADG1519 TYPICAL PERFORMANCE CHARACTERISTICS Figure 3. On Resistance as a Function of VS and VD Figure 6. On Leakage as a Function of Temperature Figure 4. On Resistance as a Function of VS and VD for Different Figure 7. IDD vs. Logic Level, IN Temperatures Figure 8. Charge Injection vs. VS Figure 5. Off Leakage as a Function of Temperature analog.com Rev. 0 | 7 of 15
