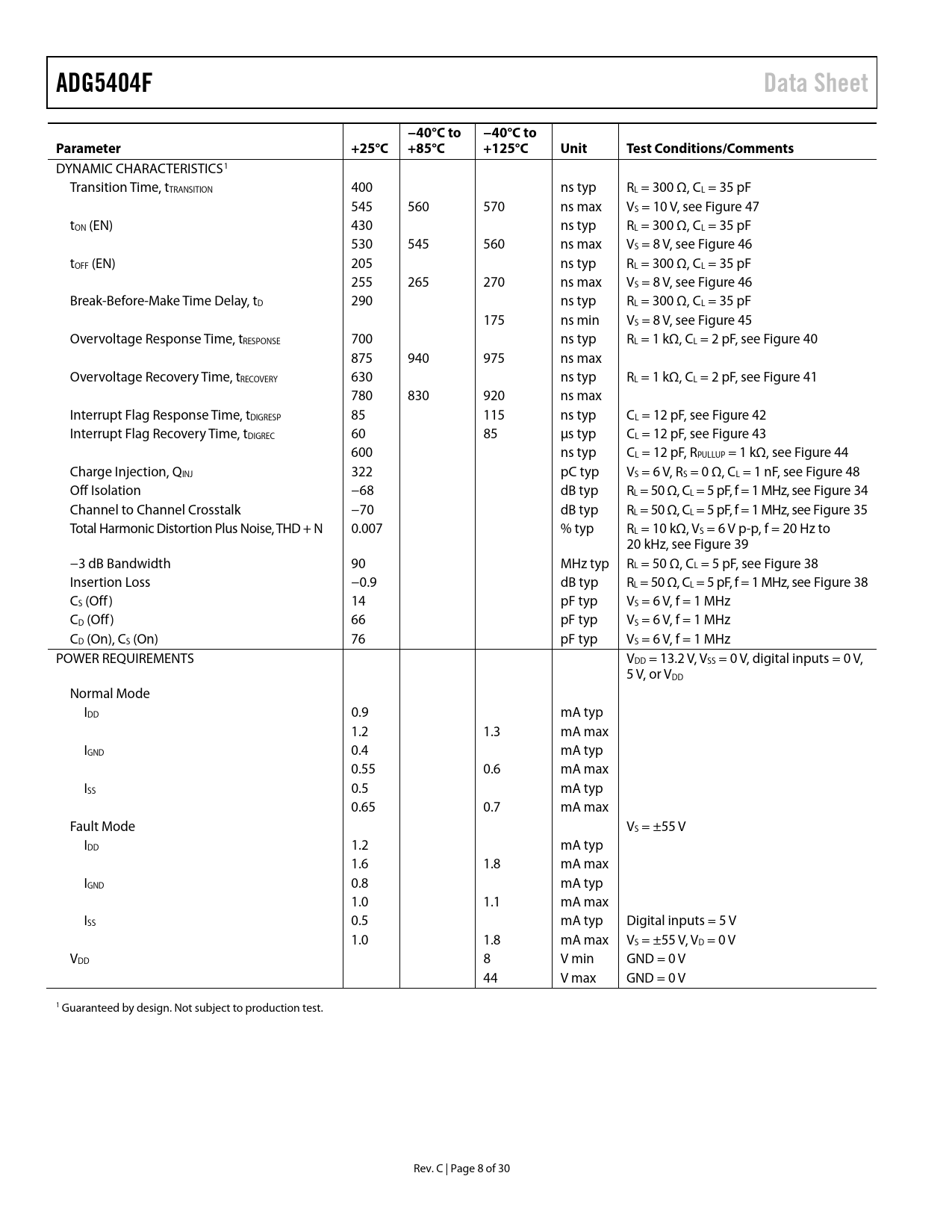

ADG5404F Data Sheet −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 400 ns typ RL = 300 Ω, CL = 35 pF 545 560 570 ns max VS = 10 V, see Figure 47 tON (EN) 430 ns typ RL = 300 Ω, CL = 35 pF 530 545 560 ns max VS = 8 V, see Figure 46 tOFF (EN) 205 ns typ RL = 300 Ω, CL = 35 pF 255 265 270 ns max VS = 8 V, see Figure 46 Break-Before-Make Time Delay, tD 290 ns typ RL = 300 Ω, CL = 35 pF 175 ns min VS = 8 V, see Figure 45 Overvoltage Response Time, tRESPONSE 700 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 40 875 940 975 ns max Overvoltage Recovery Time, tRECOVERY 630 ns typ RL = 1 kΩ, CL = 2 pF, see Figure 41 780 830 920 ns max Interrupt Flag Response Time, tDIGRESP 85 115 ns typ CL = 12 pF, see Figure 42 Interrupt Flag Recovery Time, tDIGREC 60 85 µs typ CL = 12 pF, see Figure 43 600 ns typ CL = 12 pF, RPULLUP = 1 kΩ, see Figure 44 Charge Injection, QINJ 322 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF, see Figure 48 Off Isolation −68 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 34 Channel to Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 35 Total Harmonic Distortion Plus Noise, THD + N 0.007 % typ RL = 10 kΩ, VS = 6 V p-p, f = 20 Hz to 20 kHz, see Figure 39 −3 dB Bandwidth 90 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 38 Insertion Loss −0.9 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 38 CS (Off) 14 pF typ VS = 6 V, f = 1 MHz CD (Off) 66 pF typ VS = 6 V, f = 1 MHz CD (On), CS (On) 76 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 13.2 V, VSS = 0 V, digital inputs = 0 V, 5 V, or VDD Normal Mode IDD 0.9 mA typ 1.2 1.3 mA max IGND 0.4 mA typ 0.55 0.6 mA max ISS 0.5 mA typ 0.65 0.7 mA max Fault Mode VS = ±55 V IDD 1.2 mA typ 1.6 1.8 mA max IGND 0.8 mA typ 1.0 1.1 mA max ISS 0.5 mA typ Digital inputs = 5 V 1.0 1.8 mA max VS = ±55 V, VD = 0 V VDD 8 V min GND = 0 V 44 V max GND = 0 V 1 Guaranteed by design. Not subject to production test. Rev. C | Page 8 of 30 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE CHANNEL PROTECTION POWER SUPPLY RECOMMENDATIONS HIGH VOLTAGE SURGE SUPPRESSION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
