ADG5401. Data Sheet. 36 V SINGLE SUPPLY. Table 4. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 13 link to page 13 link to page 13 link to page 13 link to page 13 link to page 13 link to page 14 link to page 13 link to page 13 link to page 13 link to page 13

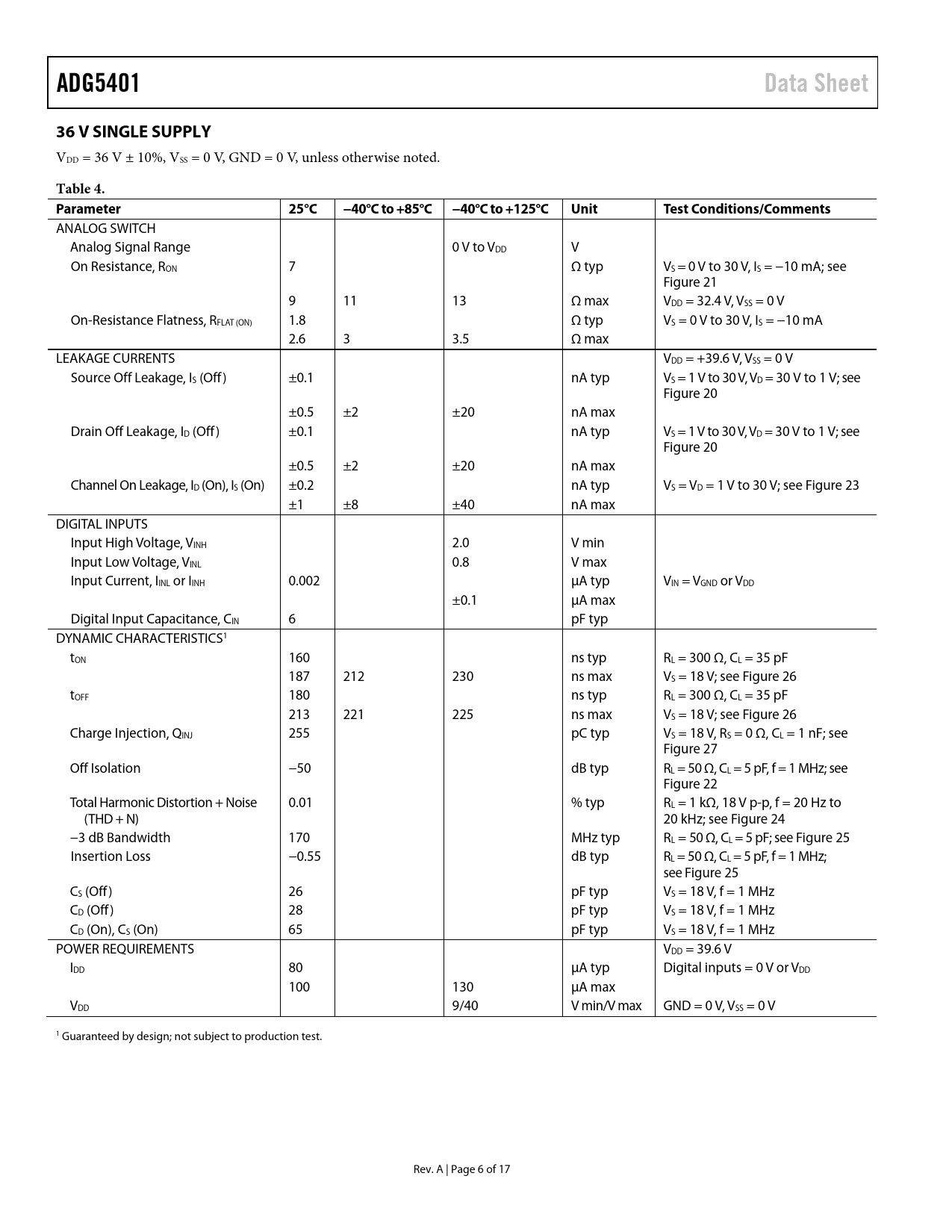

ADG5401 Data Sheet 36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 7 Ω typ VS = 0 V to 30 V, IS = −10 mA; see Figure 21 9 11 13 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Flatness, RFLAT (ON) 1.8 Ω typ VS = 0 V to 30 V, IS = −10 mA 2.6 3 3.5 Ω max LEAKAGE CURRENTS VDD = +39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = 1 V to 30 V, VD = 30 V to 1 V; see Figure 20 ±0.5 ±2 ±20 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = 1 V to 30 V, VD = 30 V to 1 V; see Figure 20 ±0.5 ±2 ±20 nA max Channel On Leakage, ID (On), IS (On) ±0.2 nA typ VS = VD = 1 V to 30 V; see Figure 23 ±1 ±8 ±40 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 6 pF typ DYNAMIC CHARACTERISTICS1 tON 160 ns typ RL = 300 Ω, CL = 35 pF 187 212 230 ns max VS = 18 V; see Figure 26 tOFF 180 ns typ RL = 300 Ω, CL = 35 pF 213 221 225 ns max VS = 18 V; see Figure 26 Charge Injection, QINJ 255 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF; see Figure 27 Off Isolation −50 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 22 Total Harmonic Distortion + Noise 0.01 % typ RL = 1 kΩ, 18 V p-p, f = 20 Hz to (THD + N) 20 kHz; see Figure 24 −3 dB Bandwidth 170 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 25 Insertion Loss −0.55 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 25 CS (Off) 26 pF typ VS = 18 V, f = 1 MHz CD (Off) 28 pF typ VS = 18 V, f = 1 MHz CD (On), CS (On) 65 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 80 µA typ Digital inputs = 0 V or VDD 100 130 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test. Rev. A | Page 6 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY APPLICATIONS INFORMATION TRENCH ISOLATION OUTLINE DIMENSIONS ORDERING GUIDE
ADG5401 Data Sheet 36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
