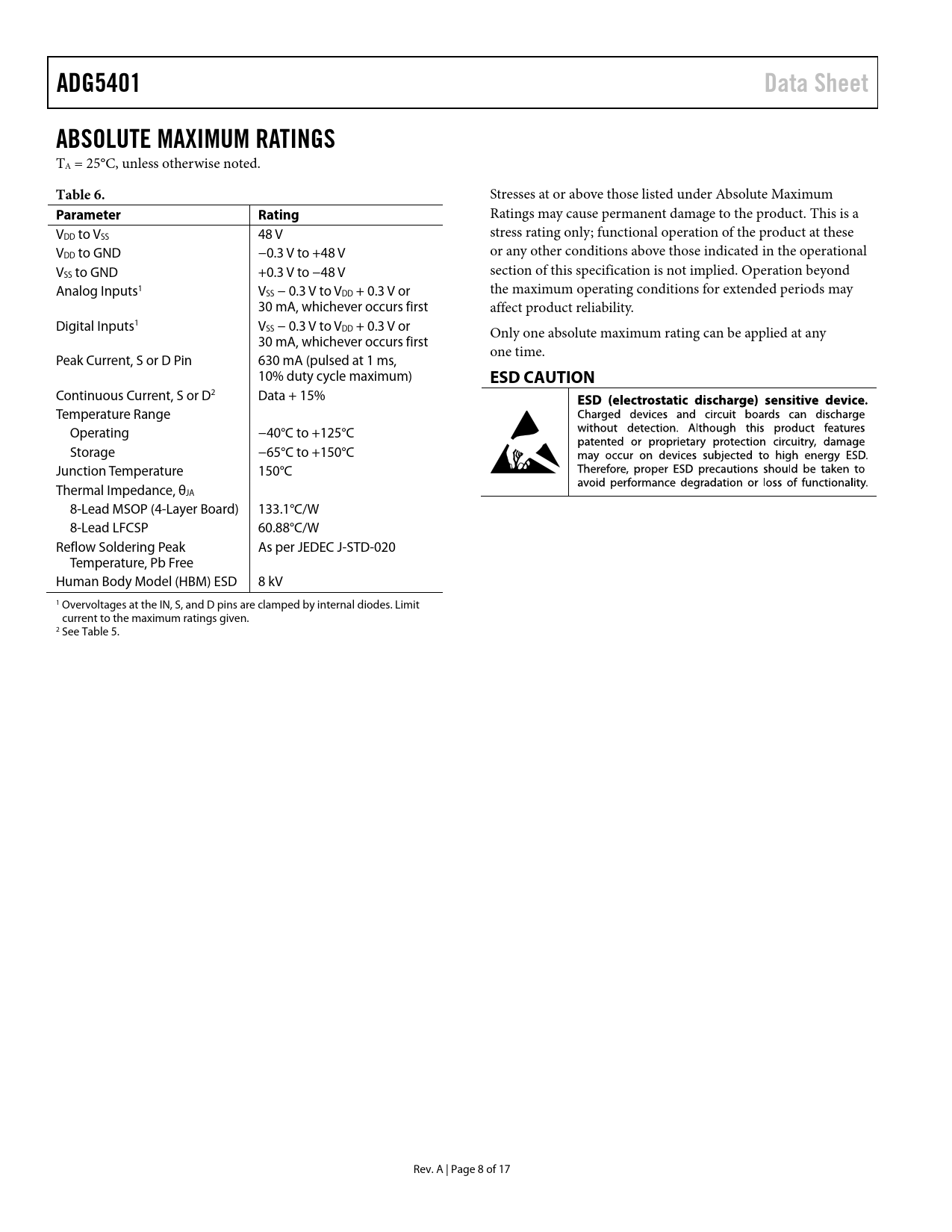

ADG5401. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 6. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 7
ADG5401 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 6.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a V stress rating only; functional operation of the product at these DD to VSS 48 V V or any other conditions above those indicated in the operational DD to GND −0.3 V to +48 V V section of this specification is not implied. Operation beyond SS to GND +0.3 V to −48 V Analog Inputs1 V the maximum operating conditions for extended periods may SS − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first affect product reliability. Digital Inputs1 VSS − 0.3 V to VDD + 0.3 V or Only one absolute maximum rating can be applied at any 30 mA, whichever occurs first one time. Peak Current, S or D Pin 630 mA (pulsed at 1 ms, 10% duty cycle maximum)
ESD CAUTION
Continuous Current, S or D2 Data + 15% Temperature Range Operating −40°C to +125°C Storage −65°C to +150°C Junction Temperature 150°C Thermal Impedance, θ JA 8-Lead MSOP (4-Layer Board) 133.1°C/W 8-Lead LFCSP 60.88°C/W Reflow Soldering Peak As per JEDEC J-STD-020 Temperature, Pb Free Human Body Model (HBM) ESD 8 kV 1 Overvoltages at the IN, S, and D pins are clamped by internal diodes. Limit current to the maximum ratings given. 2 See Table 5. Rev. A | Page 8 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY APPLICATIONS INFORMATION TRENCH ISOLATION OUTLINE DIMENSIONS ORDERING GUIDE
