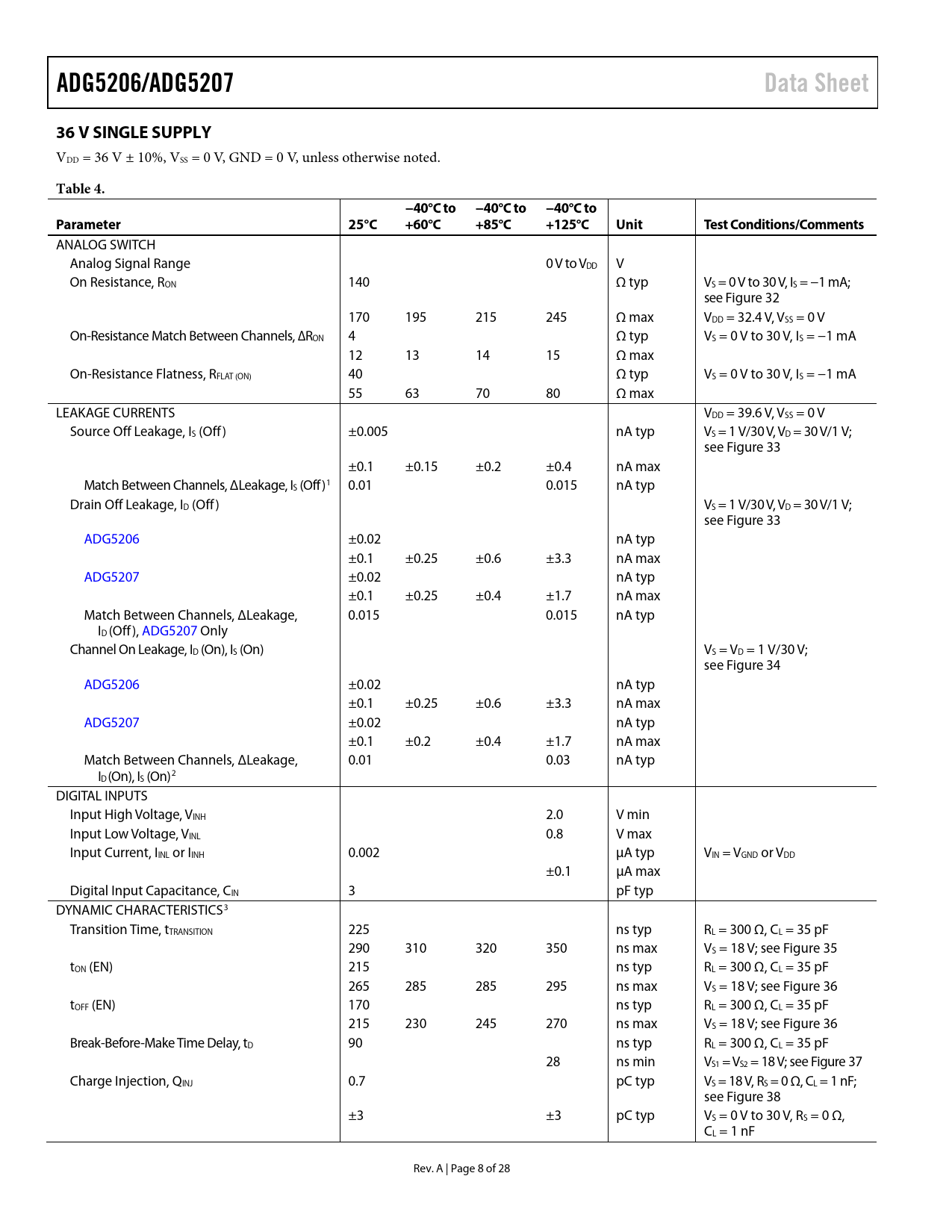

ADG5206/ADG5207. Data Sheet. 36 V SINGLE SUPPLY. Table 4. −40°C to. Parameter. 25°C. +60°C. +85°C. +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 21 link to page 21 link to page 21 link to page 21 link to page 21 link to page 21 link to page 21 link to page 22 link to page 22 link to page 9 link to page 9 link to page 9
ADG5206/ADG5207 Data Sheet 36 V SINGLE SUPPLY
VDD = 36 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to −40°C to Parameter 25°C +60°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 140 Ω typ VS = 0 V to 30 V, IS = −1 mA; see Figure 32 170 195 215 245 Ω max VDD = 32.4 V, VSS = 0 V On-Resistance Match Between Channels, ∆RON 4 Ω typ VS = 0 V to 30 V, IS = −1 mA 12 13 14 15 Ω max On-Resistance Flatness, RFLAT (ON) 40 Ω typ VS = 0 V to 30 V, IS = −1 mA 55 63 70 80 Ω max LEAKAGE CURRENTS VDD = 39.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.005 nA typ VS = 1 V/30 V, VD = 30 V/1 V; see Figure 33 ±0.1 ±0.15 ±0.2 ±0.4 nA max Match Between Channels, ΔLeakage, IS (Off)1 0.01 0.015 nA typ Drain Off Leakage, ID (Off) VS = 1 V/30 V, VD = 30 V/1 V; see Figure 33 ADG5206 ±0.02 nA typ ±0.1 ±0.25 ±0.6 ±3.3 nA max ADG5207 ±0.02 nA typ ±0.1 ±0.25 ±0.4 ±1.7 nA max Match Between Channels, ΔLeakage, 0.015 0.015 nA typ ID (Off), ADG5207 Only Channel On Leakage, ID (On), IS (On) VS = VD = 1 V/30 V; see Figure 34 ADG5206 ±0.02 nA typ ±0.1 ±0.25 ±0.6 ±3.3 nA max ADG5207 ±0.02 nA typ ±0.1 ±0.2 ±0.4 ±1.7 nA max Match Between Channels, ΔLeakage, 0.01 0.03 nA typ ID (On), IS (On)2 DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS3 Transition Time, tTRANSITION 225 ns typ RL = 300 Ω, CL = 35 pF 290 310 320 350 ns max VS = 18 V; see Figure 35 tON (EN) 215 ns typ RL = 300 Ω, CL = 35 pF 265 285 285 295 ns max VS = 18 V; see Figure 36 tOFF (EN) 170 ns typ RL = 300 Ω, CL = 35 pF 215 230 245 270 ns max VS = 18 V; see Figure 36 Break-Before-Make Time Delay, tD 90 ns typ RL = 300 Ω, CL = 35 pF 28 ns min VS1 = VS2 = 18 V; see Figure 37 Charge Injection, QINJ 0.7 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF; see Figure 38 ±3 ±3 pC typ VS = 0 V to 30 V, RS = 0 Ω, CL = 1 nF Rev. A | Page 8 of 28 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx, D, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Trench Isolation Outline Dimensions Ordering Guide
