| Description | High Voltage Latch-Up Proof, Quad SPST Switches |
| Pages / Page | 20 / 5 — Data Sheet. ADG5212/ADG5213. Parameter. 25°C. −40°C to +85°C. −40°C to … |
| Revision | A |
| File Format / Size | PDF / 438 Kb |
| Document Language | English |
Data Sheet. ADG5212/ADG5213. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments. 12 V SINGLE SUPPLY
Model Line for this Datasheet
Text Version of Document
link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 14 link to page 14 link to page 14 link to page 6

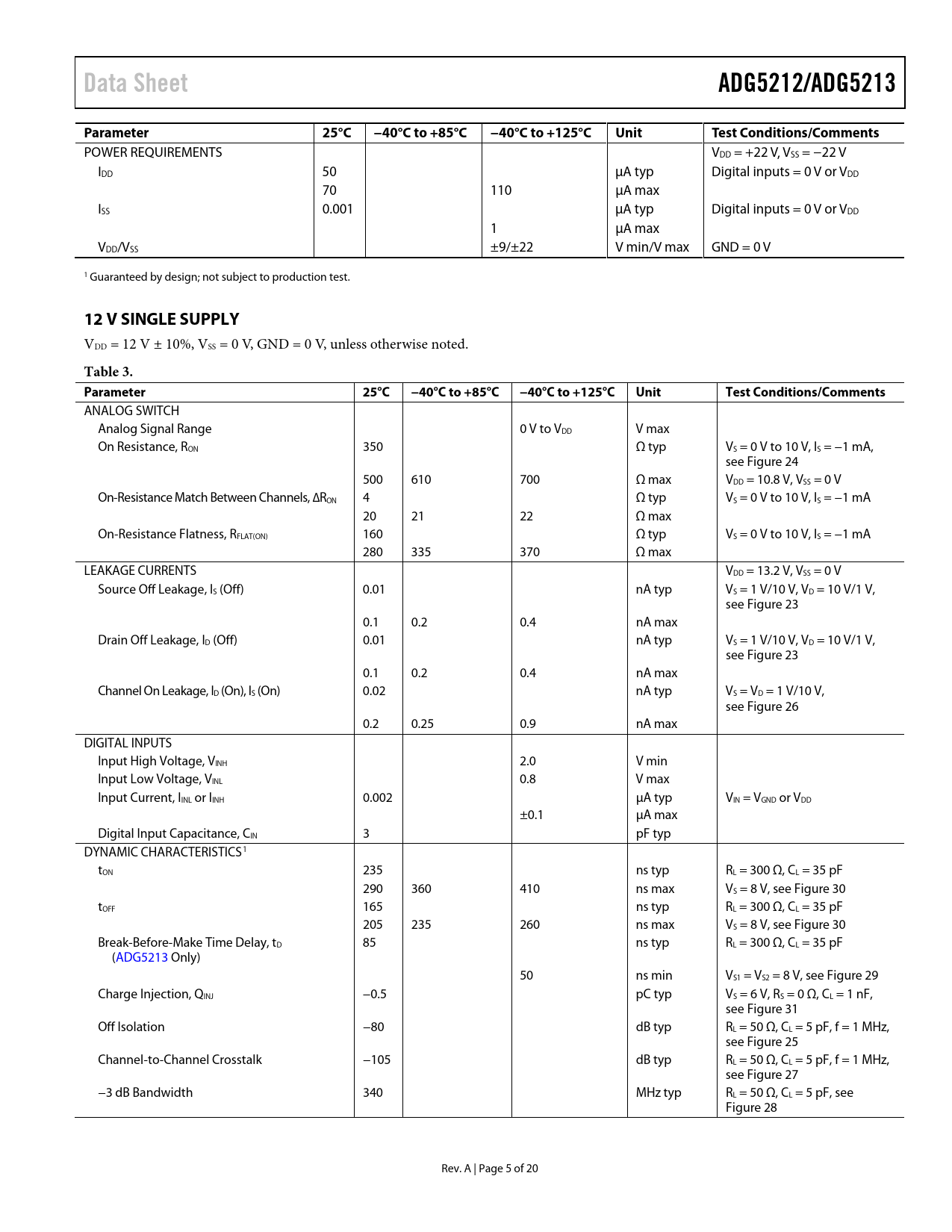

Data Sheet ADG5212/ADG5213 Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +22 V, VSS = −22 V IDD 50 µA typ Digital inputs = 0 V or VDD 70 110 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V max On Resistance, RON 350 Ω typ VS = 0 V to 10 V, IS = −1 mA, see Figure 24 500 610 700 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between Channels, ∆RON 4 Ω typ VS = 0 V to 10 V, IS = −1 mA 20 21 22 Ω max On-Resistance Flatness, RFLAT(ON) 160 Ω typ VS = 0 V to 10 V, IS = −1 mA 280 335 370 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) 0.01 nA typ VS = 1 V/10 V, VD = 10 V/1 V, see Figure 23 0.1 0.2 0.4 nA max Drain Off Leakage, ID (Off) 0.01 nA typ VS = 1 V/10 V, VD = 10 V/1 V, see Figure 23 0.1 0.2 0.4 nA max Channel On Leakage, ID (On), IS (On) 0.02 nA typ VS = VD = 1 V/10 V, see Figure 26 0.2 0.25 0.9 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 235 ns typ RL = 300 Ω, CL = 35 pF 290 360 410 ns max VS = 8 V, see Figure 30 tOFF 165 ns typ RL = 300 Ω, CL = 35 pF 205 235 260 ns max VS = 8 V, see Figure 30 Break-Before-Make Time Delay, tD 85 ns typ RL = 300 Ω, CL = 35 pF (ADG5213 Only) 50 ns min VS1 = VS2 = 8 V, see Figure 29 Charge Injection, QINJ −0.5 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF, see Figure 31 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 25 Channel-to-Channel Crosstalk −105 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 27 −3 dB Bandwidth 340 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 28 Rev. A | Page 5 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADG5212/ADG5213 Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +22 V, VSS = −22 V IDD 50 µA typ Digital inputs = 0 V or VDD 70 110 µA max ISS 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
