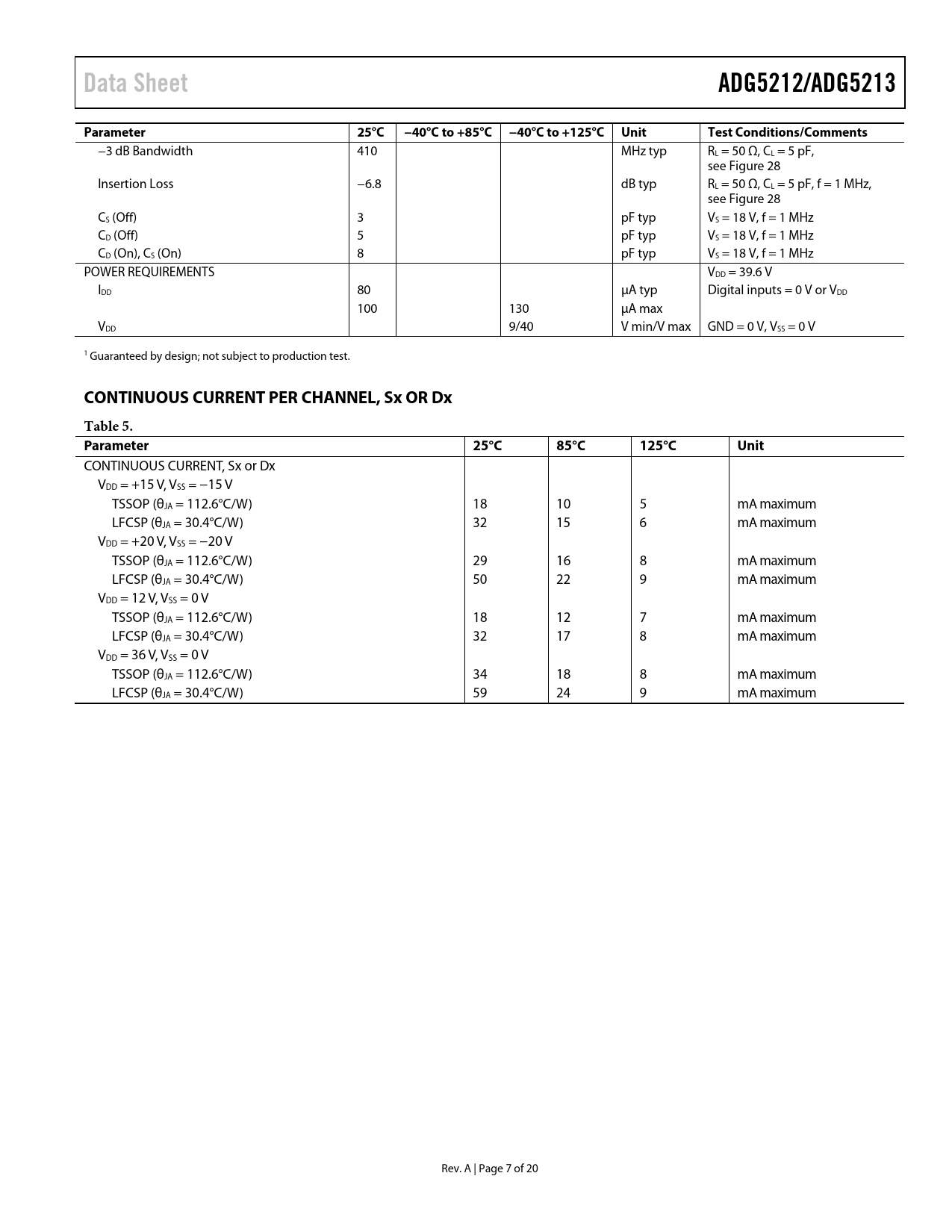

Data Sheet. ADG5212/ADG5213. Parameter. 25°C. −40°C to +85°C −40°C to +125°C Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 14 link to page 14
Data Sheet ADG5212/ADG5213 Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
−3 dB Bandwidth 410 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 28 Insertion Loss −6.8 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 28 CS (Off) 3 pF typ VS = 18 V, f = 1 MHz CD (Off) 5 pF typ VS = 18 V, f = 1 MHz CD (On), CS (On) 8 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 80 µA typ Digital inputs = 0 V or VDD 100 130 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx Table 5. Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx or Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 18 10 5 mA maximum LFCSP (θJA = 30.4°C/W) 32 15 6 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 29 16 8 mA maximum LFCSP (θJA = 30.4°C/W) 50 22 9 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 18 12 7 mA maximum LFCSP (θJA = 30.4°C/W) 32 17 8 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 34 18 8 mA maximum LFCSP (θJA = 30.4°C/W) 59 24 9 mA maximum Rev. A | Page 7 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY TRENCH ISOLATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
