Datasheet ADG5408-EP, ADG5409-EP (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | High Voltage Latch-Up Proof, 4-/8-Channel Multiplexers |
| Pages / Page | 18 / 5 — Enhanced Product. ADG5408-EP/ADG5409-EP. Parameter. 25°C. −40°C to +85°C. … |
| File Format / Size | PDF / 340 Kb |
| Document Language | English |

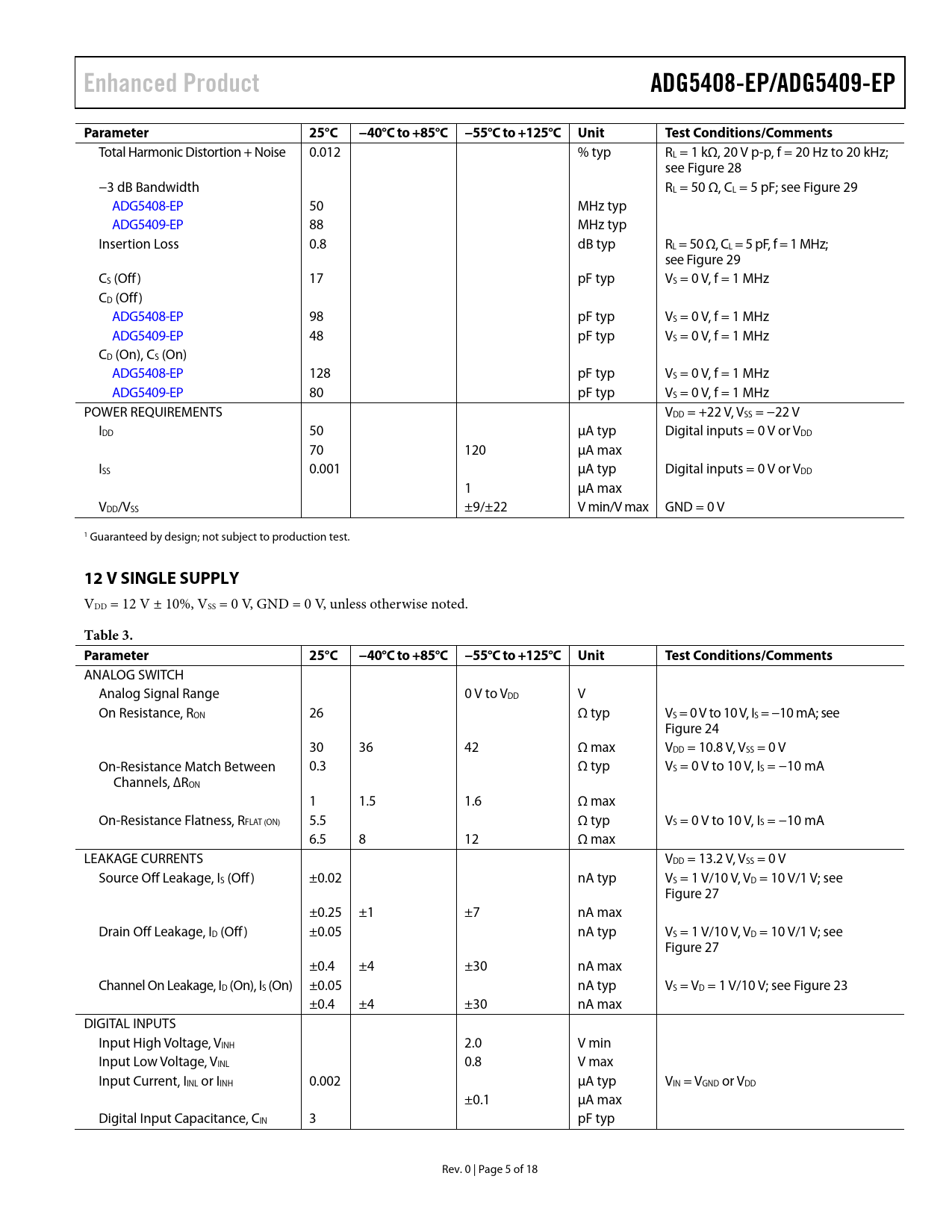

Enhanced Product. ADG5408-EP/ADG5409-EP. Parameter. 25°C. −40°C to +85°C. −55°C to +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 16
Enhanced Product ADG5408-EP/ADG5409-EP Parameter 25°C −40°C to +85°C −55°C to +125°C Unit Test Conditions/Comments
Total Harmonic Distortion + Noise 0.012 % typ RL = 1 kΩ, 20 V p-p, f = 20 Hz to 20 kHz; see Figure 28 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 29 ADG5408-EP 50 MHz typ ADG5409-EP 88 MHz typ Insertion Loss 0.8 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 CS (Off ) 17 pF typ VS = 0 V, f = 1 MHz CD (Off ) ADG5408-EP 98 pF typ VS = 0 V, f = 1 MHz ADG5409-EP 48 pF typ VS = 0 V, f = 1 MHz CD (On), CS (On) ADG5408-EP 128 pF typ VS = 0 V, f = 1 MHz ADG5409-EP 80 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +22 V, VSS = −22 V IDD 50 μA typ Digital inputs = 0 V or VDD 70 120 μA max ISS 0.001 μA typ Digital inputs = 0 V or VDD 1 μA max VDD/VSS ±9/±22 V min/V max GND = 0 V 1 Guaranteed by design; not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. Parameter 25°C −40°C to +85°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance, RON 26 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 24 30 36 42 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between 0.3 Ω typ VS = 0 V to 10 V, IS = −10 mA Channels, ∆RON 1 1.5 1.6 Ω max On-Resistance Flatness, RFLAT (ON) 5.5 Ω typ VS = 0 V to 10 V, IS = −10 mA 6.5 8 12 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off ) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.25 ±1 ±7 nA max Drain Off Leakage, ID (Off ) ±0.05 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.4 ±4 ±30 nA max Channel On Leakage, ID (On), IS (On) ±0.05 nA typ VS = VD = 1 V/10 V; see Figure 23 ±0.4 ±4 ±30 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.002 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 3 pF typ Rev. 0 | Page 5 of 18 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
