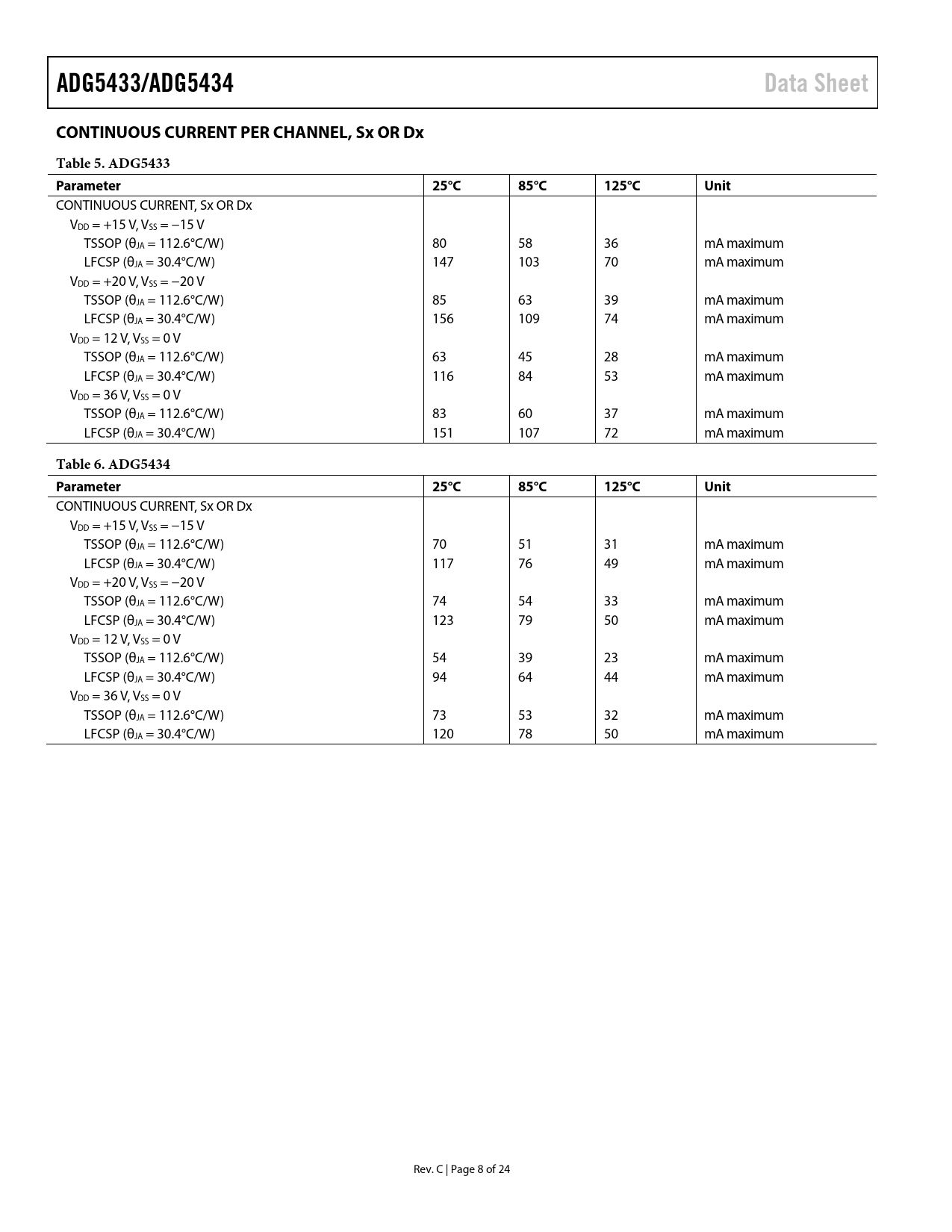

ADG5433/ADG5434 Data Sheet CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx Table 5. ADG5433 Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 80 58 36 mA maximum LFCSP (θJA = 30.4°C/W) 147 103 70 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 85 63 39 mA maximum LFCSP (θJA = 30.4°C/W) 156 109 74 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 63 45 28 mA maximum LFCSP (θJA = 30.4°C/W) 116 84 53 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 83 60 37 mA maximum LFCSP (θJA = 30.4°C/W) 151 107 72 mA maximum
Table 6. ADG5434 Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, Sx OR Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 70 51 31 mA maximum LFCSP (θJA = 30.4°C/W) 117 76 49 mA maximum VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 74 54 33 mA maximum LFCSP (θJA = 30.4°C/W) 123 79 50 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 54 39 23 mA maximum LFCSP (θJA = 30.4°C/W) 94 64 44 mA maximum VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 73 53 32 mA maximum LFCSP (θJA = 30.4°C/W) 120 78 50 mA maximum Rev. C | Page 8 of 24 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, Sx or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
