Datasheet ADG1436-EP (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 1.5 Ω On Resistance, ±15 V/12 V/±5 V, iCMOS , Dual SPDT Switch |
| Pages / Page | 10 / 10 — ADG1436-EP. Enhanced Product. OUTLINE DIMENSIONS. 5.10 5.00 4.90. 4.50. … |
| File Format / Size | PDF / 253 Kb |
| Document Language | English |
ADG1436-EP. Enhanced Product. OUTLINE DIMENSIONS. 5.10 5.00 4.90. 4.50. 6.40. 4.40. BSC. 4.30. PIN 1. 1.20 MAX. 0.15. 0.20. 0.05. 0.09. 0.75. 0.60. 0.30
Model Line for this Datasheet
Text Version of Document
ADG1436-EP Enhanced Product OUTLINE DIMENSIONS 5.10 5.00 4.90 16 9 4.50 6.40 4.40 BSC 4.30 1 8 PIN 1 1.20 MAX 0.15 0.20 0.05 0.09 0.75 8° 0.60 0.30 0.65 0° 0.19 SEATING 0.45 BSC PLANE COPLANARITY 0.10 COMPLIANT TO JEDEC STANDARDS MO-153-AB

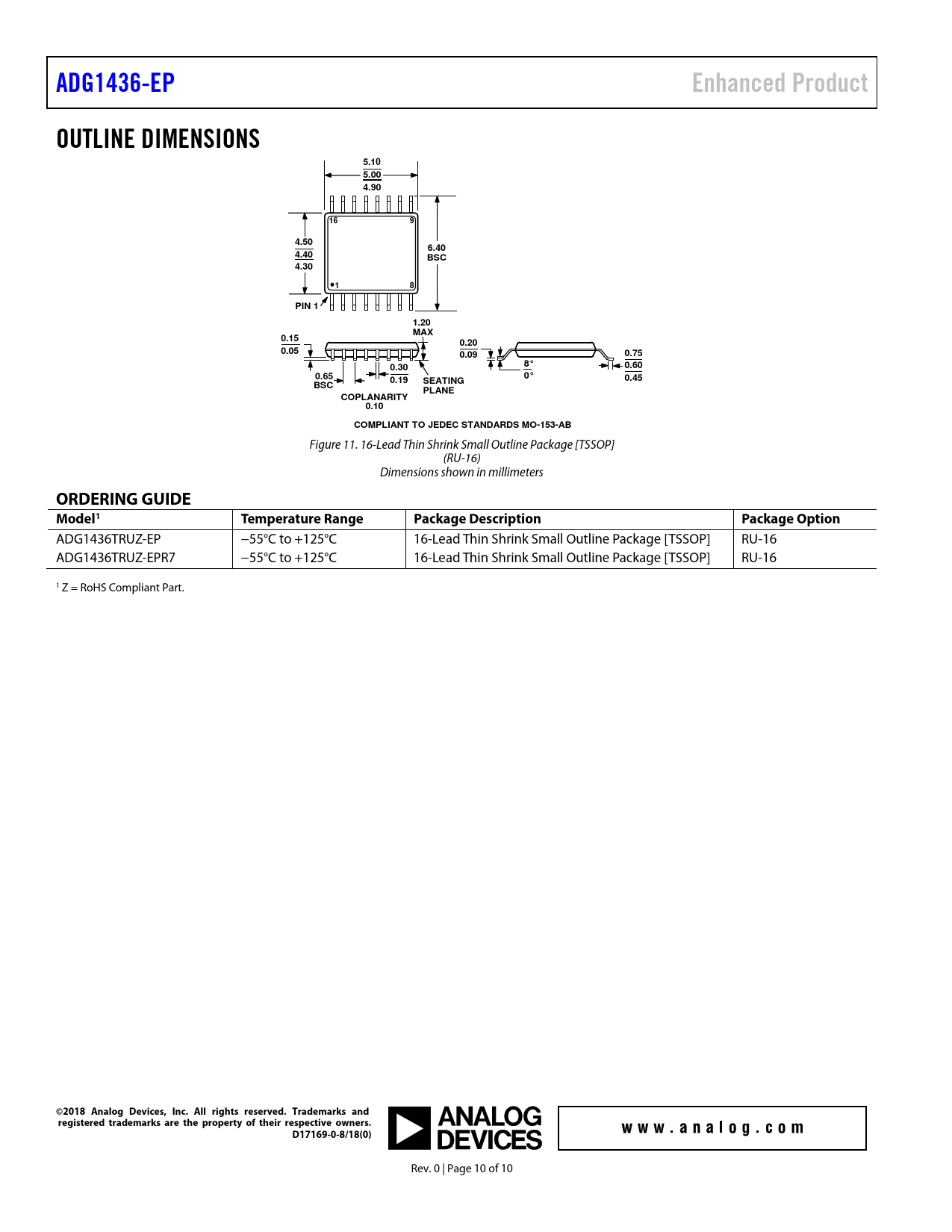

Figure 11. 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option
ADG1436TRUZ-EP −55°C to +125°C 16-Lead Thin Shrink Small Outline Package [TSSOP] RU-16 ADG1436TRUZ-EPR7 −55°C to +125°C 16-Lead Thin Shrink Small Outline Package [TSSOP] RU-16 1 Z = RoHS Compliant Part.
