Datasheet ADG1436-EP (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 1.5 Ω On Resistance, ±15 V/12 V/±5 V, iCMOS , Dual SPDT Switch |
| Pages / Page | 10 / 3 — Enhanced Product. ADG1436-EP. SPECIFICATIONS 15 V DUAL SUPPLY. Table 1. … |
| File Format / Size | PDF / 253 Kb |
| Document Language | English |

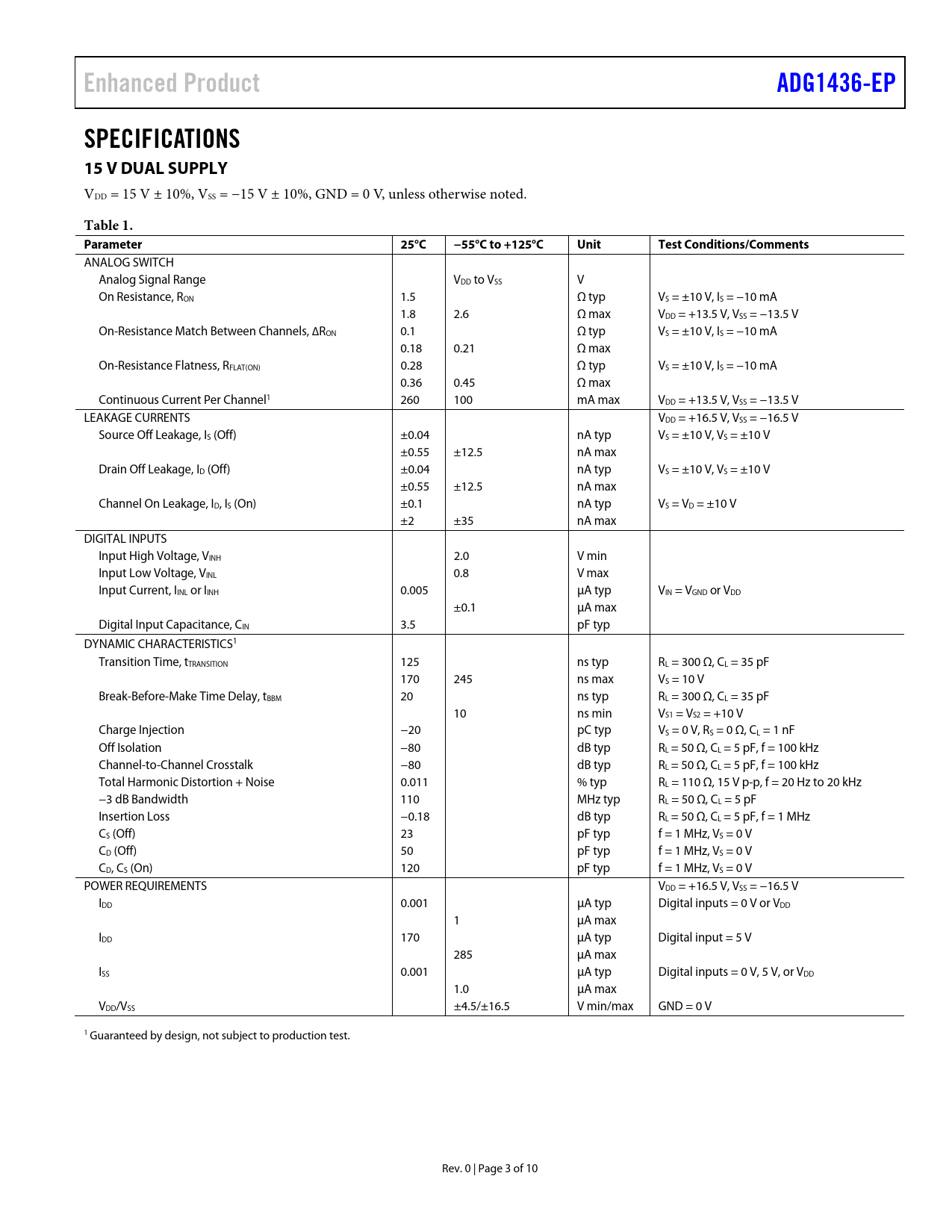

Enhanced Product. ADG1436-EP. SPECIFICATIONS 15 V DUAL SUPPLY. Table 1. Parameter. 25°C. −55°C to +125°C. Unit
Model Line for this Datasheet
Text Version of Document
Enhanced Product ADG1436-EP SPECIFICATIONS 15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter 25°C −55°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance, RON 1.5 Ω typ VS = ±10 V, IS = −10 mA 1.8 2.6 Ω max VDD = +13.5 V, VSS = −13.5 V On-Resistance Match Between Channels, ∆RON 0.1 Ω typ VS = ±10 V, IS = −10 mA 0.18 0.21 Ω max On-Resistance Flatness, RFLAT(ON) 0.28 Ω typ VS = ±10 V, IS = −10 mA 0.36 0.45 Ω max Continuous Current Per Channel1 260 100 mA max VDD = +13.5 V, VSS = −13.5 V LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.04 nA typ VS = ±10 V, VS = ±10 V ±0.55 ±12.5 nA max Drain Off Leakage, ID (Off) ±0.04 nA typ VS = ±10 V, VS = ±10 V ±0.55 ±12.5 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = ±10 V ±2 ±35 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3.5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 125 ns typ RL = 300 Ω, CL = 35 pF 170 245 ns max VS = 10 V Break-Before-Make Time Delay, tBBM 20 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = +10 V Charge Injection −20 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz Total Harmonic Distortion + Noise 0.011 % typ RL = 110 Ω, 15 V p-p, f = 20 Hz to 20 kHz −3 dB Bandwidth 110 MHz typ RL = 50 Ω, CL = 5 pF Insertion Loss −0.18 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz CS (Off) 23 pF typ f = 1 MHz, VS = 0 V CD (Off) 50 pF typ f = 1 MHz, VS = 0 V CD, CS (On) 120 pF typ f = 1 MHz, VS = 0 V POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max IDD 170 µA typ Digital input = 5 V 285 µA max ISS 0.001 µA typ Digital inputs = 0 V, 5 V, or VDD 1.0 µA max VDD/VSS ±4.5/±16.5 V min/max GND = 0 V 1 Guaranteed by design, not subject to production test. Rev. 0 | Page 3 of 10 Document Outline Features Applications Enhanced Product Features Functional Block Diagram General Description Revision History Specifications 15 V Dual Supply 12 V Single Supply 5 V Dual Supply Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Truth Table For Switches Typical Performance Characteristics Outline Dimensions Ordering Guide
