Datasheet ADG1221, ADG1222, ADG1223 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Low Capacitance, Low Charge Injection, ±15 V/+12 V iCMOS Dual SPST Switches |
| Pages / Page | 16 / 6 — ADG1221/ADG1222/ADG1223. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL … |
| Revision | B |
| File Format / Size | PDF / 451 Kb |
| Document Language | English |
ADG1221/ADG1222/ADG1223. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating
Model Line for this Datasheet
Text Version of Document

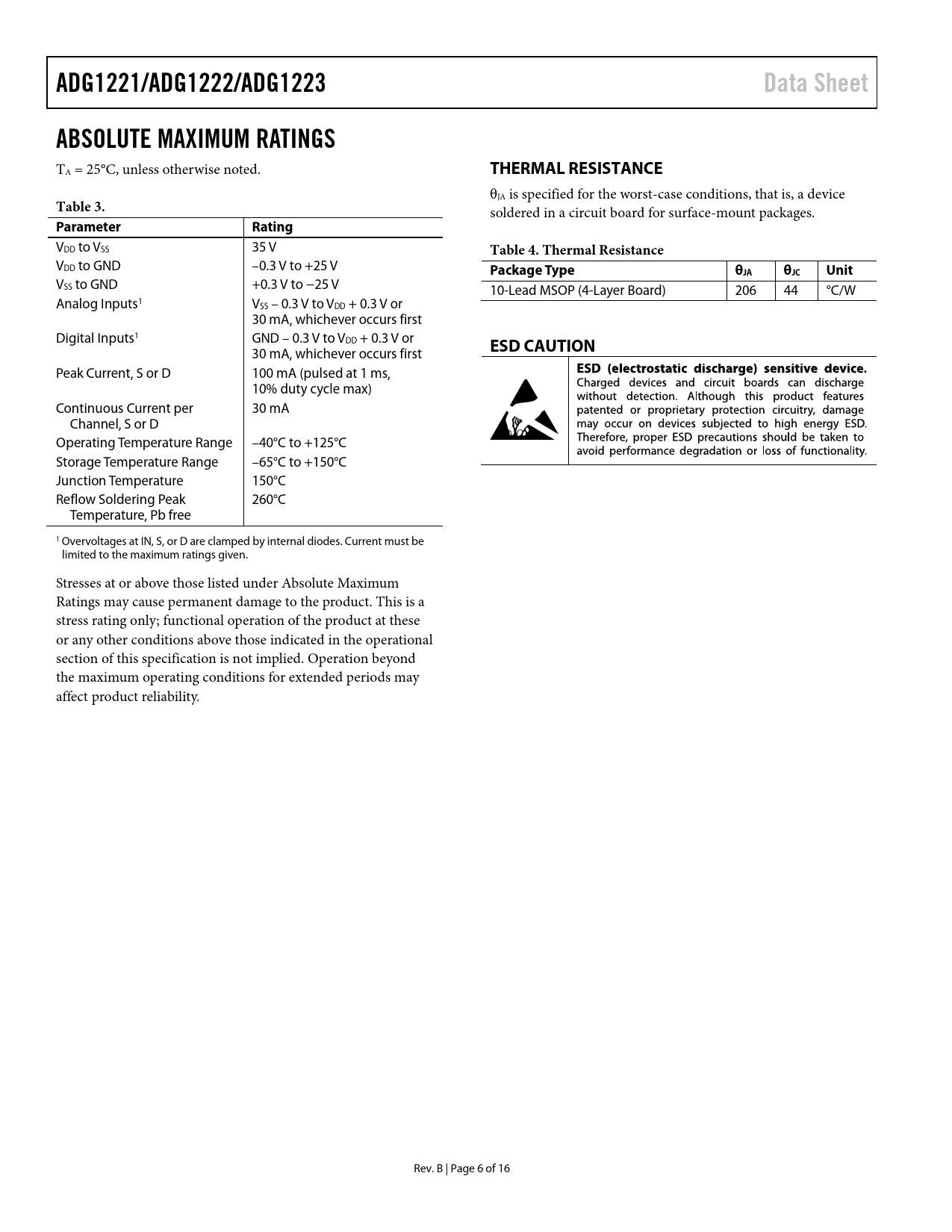

ADG1221/ADG1222/ADG1223 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE
θJA is specified for the worst-case conditions, that is, a device
Table 3.
soldered in a circuit board for surface-mount packages.
Parameter Rating
VDD to VSS 35 V
Table 4. Thermal Resistance
VDD to GND –0.3 V to +25 V
Package Type θJA θJC Unit
VSS to GND +0.3 V to −25 V 10-Lead MSOP (4-Layer Board) 206 44 °C/W Analog Inputs1 VSS – 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Digital Inputs1 GND – 0.3 V to VDD + 0.3 V or
