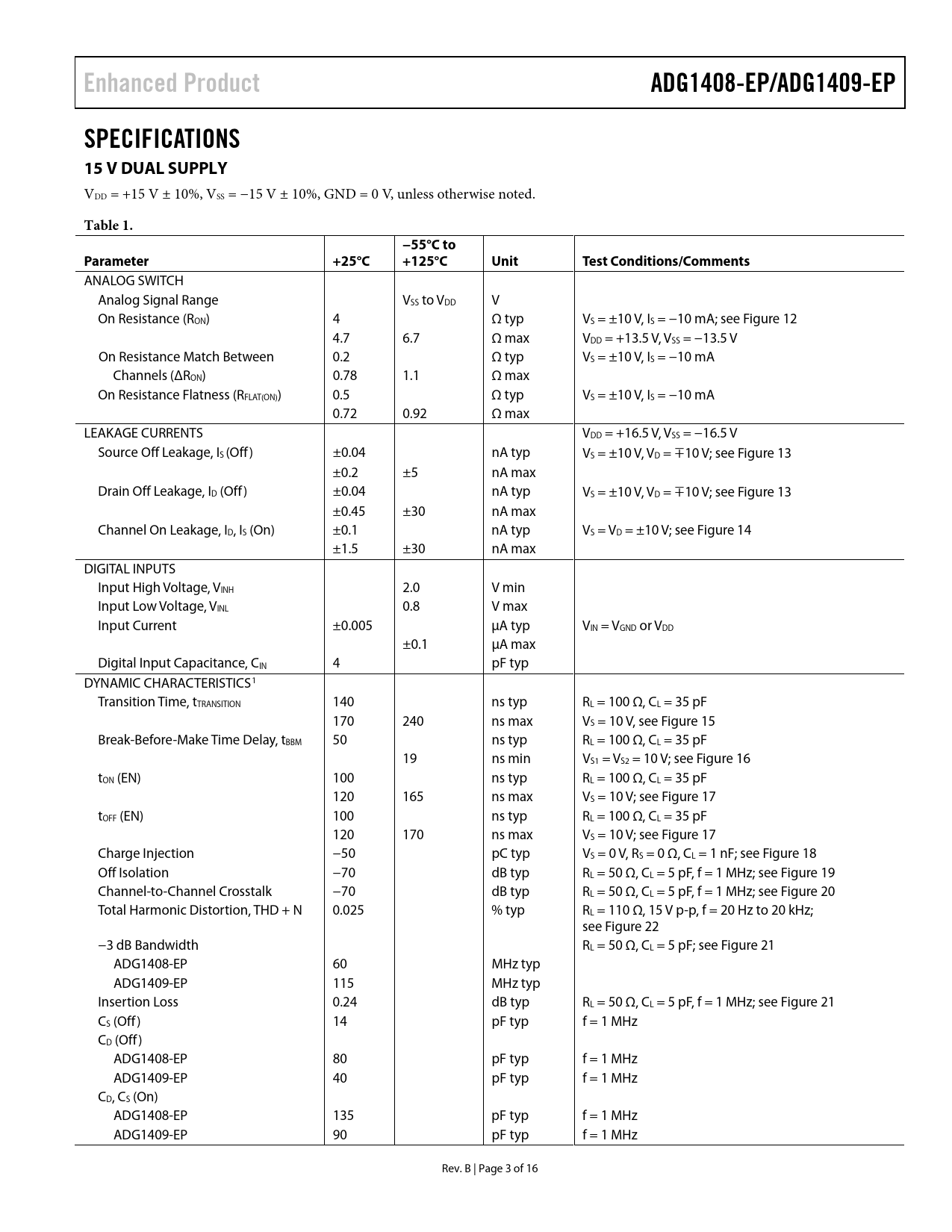

Enhanced Product ADG1408-EP/ADG1409-EP SPECIFICATIONS 15 V DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. −55°C to Parameter +25°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V On Resistance (RON) 4 Ω typ VS = ±10 V, IS = −10 mA; see Figure 12 4.7 6.7 Ω max VDD = +13.5 V, VSS = −13.5 V On Resistance Match Between 0.2 Ω typ VS = ±10 V, IS = −10 mA Channels (ΔRON) 0.78 1.1 Ω max On Resistance Flatness (RFLAT(ON)) 0.5 Ω typ VS = ±10 V, IS = −10 mA 0.72 0.92 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.04 nA typ VS = ±10 V, VD = ∓10 V; see Figure 13 ±0.2 ±5 nA max Drain Off Leakage, ID (Off) ±0.04 nA typ VS = ±10 V, VD = ∓10 V; see Figure 13 ±0.45 ±30 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = ±10 V; see Figure 14 ±1.5 ±30 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current ±0.005 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 140 ns typ RL = 100 Ω, CL = 35 pF 170 240 ns max VS = 10 V, see Figure 15 Break-Before-Make Time Delay, tBBM 50 ns typ RL = 100 Ω, CL = 35 pF 19 ns min VS1 = VS2 = 10 V; see Figure 16 tON (EN) 100 ns typ RL = 100 Ω, CL = 35 pF 120 165 ns max VS = 10 V; see Figure 17 tOFF (EN) 100 ns typ RL = 100 Ω, CL = 35 pF 120 170 ns max VS = 10 V; see Figure 17 Charge Injection −50 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 18 Off Isolation −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 19 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 20 Total Harmonic Distortion, THD + N 0.025 % typ RL = 110 Ω, 15 V p-p, f = 20 Hz to 20 kHz; see Figure 22 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 21 ADG1408-EP 60 MHz typ ADG1409-EP 115 MHz typ Insertion Loss 0.24 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 21 CS (Off) 14 pF typ f = 1 MHz CD (Off) ADG1408-EP 80 pF typ f = 1 MHz ADG1409-EP 40 pF typ f = 1 MHz CD, CS (On) ADG1408-EP 135 pF typ f = 1 MHz ADG1409-EP 90 pF typ f = 1 MHz Rev. B | Page 3 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
