| Manufacturer | Analog Devices |
| Description | 4 Ω RON, 4-/8-Channel ±15 V/+12 V/±5 V iCMOS Multiplexers |
| Pages / Page | 16 / 4 — ADG1408-EP/ADG1409-EP. Enhanced Product. −55°C to. Parameter. +25°C. … |
| Revision | B |
| File Format / Size | PDF / 402 Kb |
| Document Language | English |

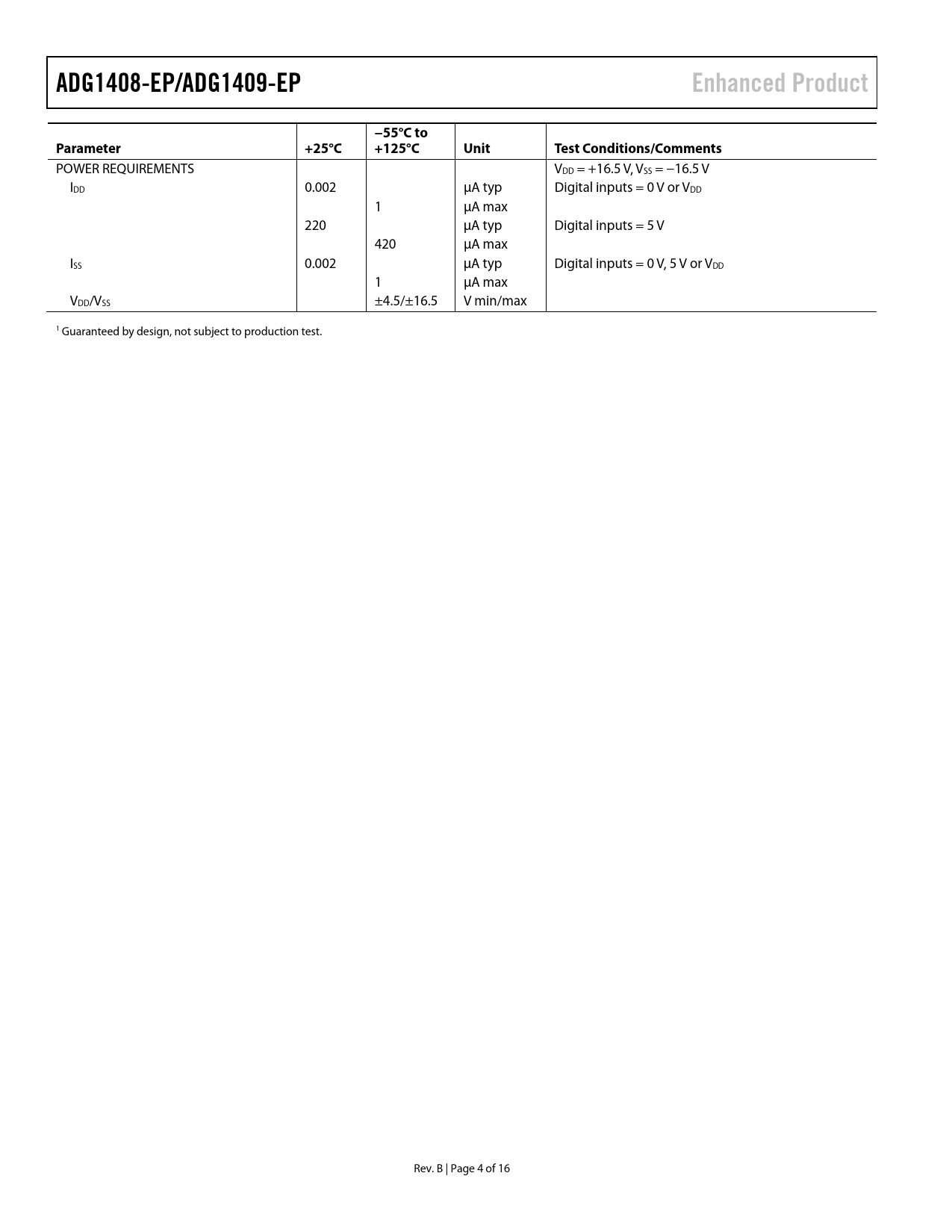

ADG1408-EP/ADG1409-EP. Enhanced Product. −55°C to. Parameter. +25°C. +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
ADG1408-EP/ADG1409-EP Enhanced Product −55°C to Parameter +25°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.002 µA typ Digital inputs = 0 V or VDD 1 µA max 220 µA typ Digital inputs = 5 V 420 µA max ISS 0.002 µA typ Digital inputs = 0 V, 5 V or VDD 1 µA max VDD/VSS ±4.5/±16.5 V min/max 1 Guaranteed by design, not subject to production test. Rev. B | Page 4 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
