| Manufacturer | Analog Devices |
| Description | 4 Ω RON, 4-/8-Channel ±15 V/+12 V/±5 V iCMOS Multiplexers |
| Pages / Page | 16 / 7 — Enhanced Product. ADG1408-EP/ADG1409-EP. 5 V DUAL SUPPLY. Table 3. −55°C … |
| Revision | B |
| File Format / Size | PDF / 402 Kb |
| Document Language | English |
Enhanced Product. ADG1408-EP/ADG1409-EP. 5 V DUAL SUPPLY. Table 3. −55°C to. Parameter. +25°C. +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 8
Enhanced Product ADG1408-EP/ADG1409-EP 5 V DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.

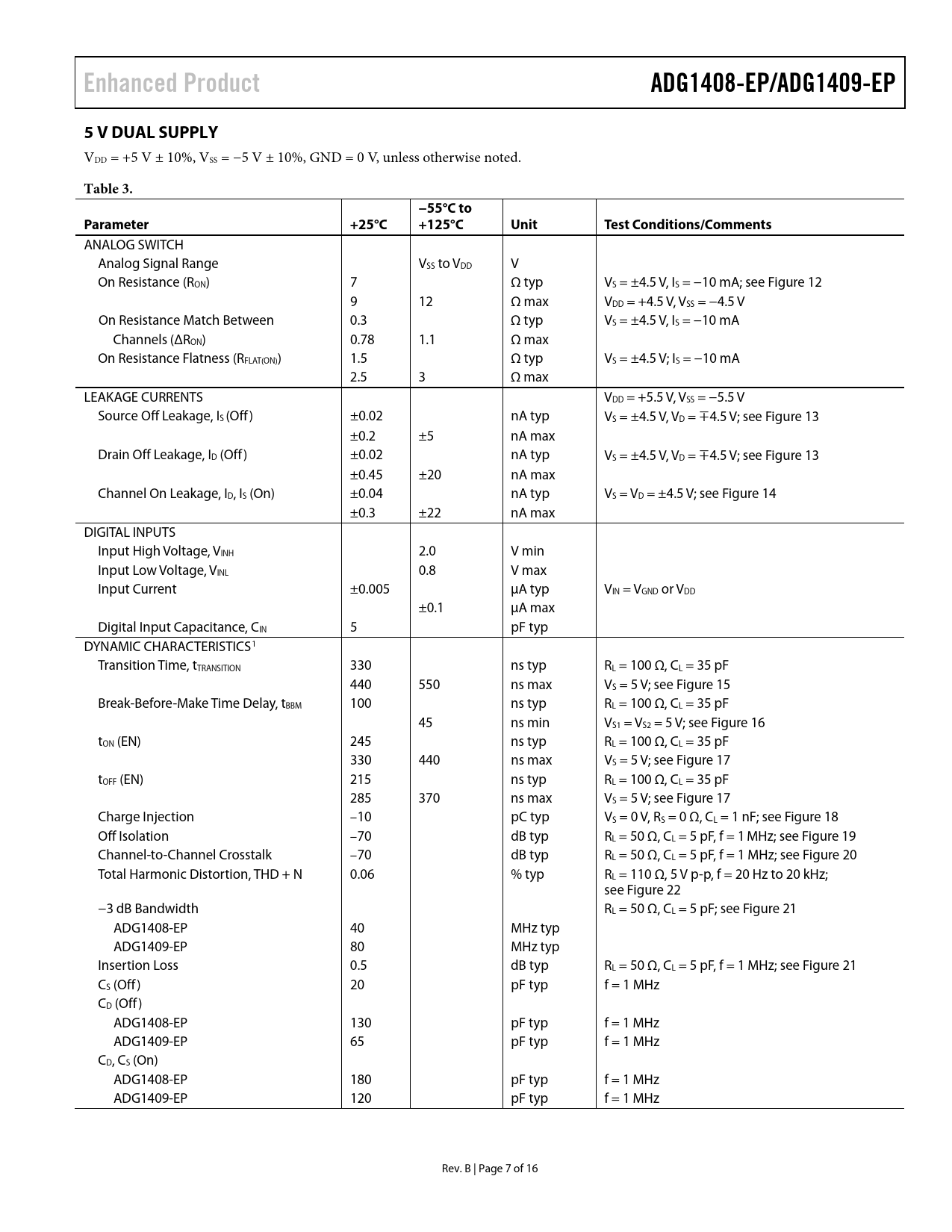

Table 3. −55°C to Parameter +25°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V On Resistance (RON) 7 Ω typ VS = ±4.5 V, IS = −10 mA; see Figure 12 9 12 Ω max VDD = +4.5 V, VSS = −4.5 V On Resistance Match Between 0.3 Ω typ VS = ±4.5 V, IS = −10 mA Channels (ΔRON) 0.78 1.1 Ω max On Resistance Flatness (RFLAT(ON)) 1.5 Ω typ VS = ±4.5 V; IS = −10 mA 2.5 3 Ω max LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 13 ±0.2 ±5 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = ±4.5 V, VD = ∓4.5 V; see Figure 13 ±0.45 ±20 nA max Channel On Leakage, ID, IS (On) ±0.04 nA typ VS = VD = ±4.5 V; see Figure 14 ±0.3 ±22 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current ±0.005 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 330 ns typ RL = 100 Ω, CL = 35 pF 440 550 ns max VS = 5 V; see Figure 15 Break-Before-Make Time Delay, tBBM 100 ns typ RL = 100 Ω, CL = 35 pF 45 ns min VS1 = VS2 = 5 V; see Figure 16 tON (EN) 245 ns typ RL = 100 Ω, CL = 35 pF 330 440 ns max VS = 5 V; see Figure 17 tOFF (EN) 215 ns typ RL = 100 Ω, CL = 35 pF 285 370 ns max VS = 5 V; see Figure 17 Charge Injection –10 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 18 Off Isolation –70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 19 Channel-to-Channel Crosstalk –70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 20 Total Harmonic Distortion, THD + N 0.06 % typ RL = 110 Ω, 5 V p-p, f = 20 Hz to 20 kHz; see Figure 22 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 21 ADG1408-EP 40 MHz typ ADG1409-EP 80 MHz typ Insertion Loss 0.5 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 21 CS (Off) 20 pF typ f = 1 MHz CD (Off) ADG1408-EP 130 pF typ f = 1 MHz ADG1409-EP 65 pF typ f = 1 MHz CD, CS (On) ADG1408-EP 180 pF typ f = 1 MHz ADG1409-EP 120 pF typ f = 1 MHz Rev. B | Page 7 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
