Datasheet ADG1408-EP, ADG1409-EP (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 4 Ω RON, 4-/8-Channel ±15 V/+12 V/±5 V iCMOS Multiplexers |
| Pages / Page | 16 / 9 — Enhanced Product. ADG1408-EP/ADG1409-EP. ABSOLUTE MAXIMUM RATINGS. Table … |
| Revision | B |
| File Format / Size | PDF / 402 Kb |
| Document Language | English |
Enhanced Product. ADG1408-EP/ADG1409-EP. ABSOLUTE MAXIMUM RATINGS. Table 5. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 8

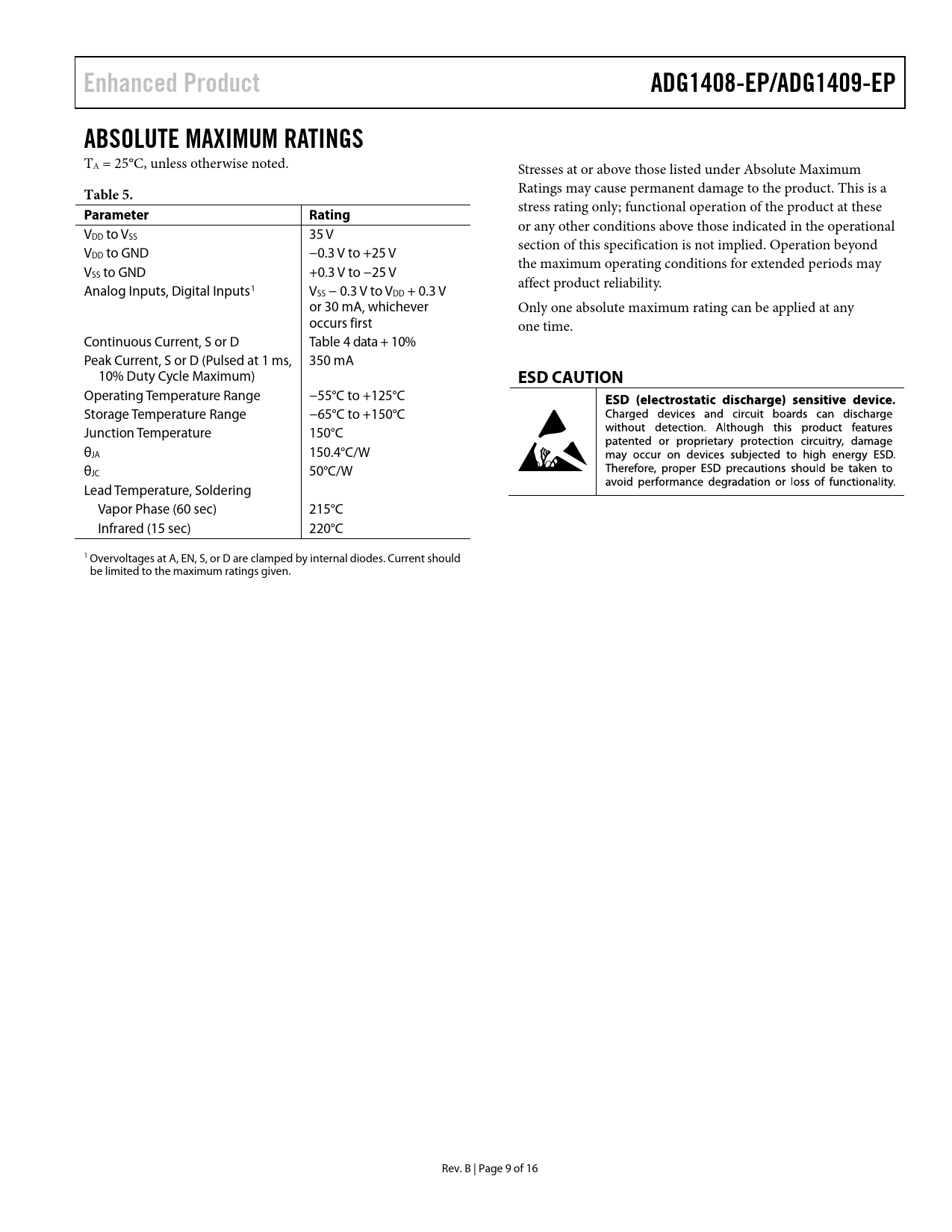

Enhanced Product ADG1408-EP/ADG1409-EP ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 5.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +25 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −25 V affect product reliability. Analog Inputs, Digital Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever Only one absolute maximum rating can be applied at any occurs first one time. Continuous Current, S or D Table 4 data + 10% Peak Current, S or D (Pulsed at 1 ms, 350 mA 10% Duty Cycle Maximum)
ESD CAUTION
Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C θJA 150.4°C/W θJC 50°C/W Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C 1 Overvoltages at A, EN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. B | Page 9 of 16 Document Outline FEATURES ENHANCED PRODUCT FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
