Enhanced Product. ADG1212-EP. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. Table 4. ADG1212-EP. Truth Table. ADG1212-EP I
Model Line for this Datasheet
Text Version of Document

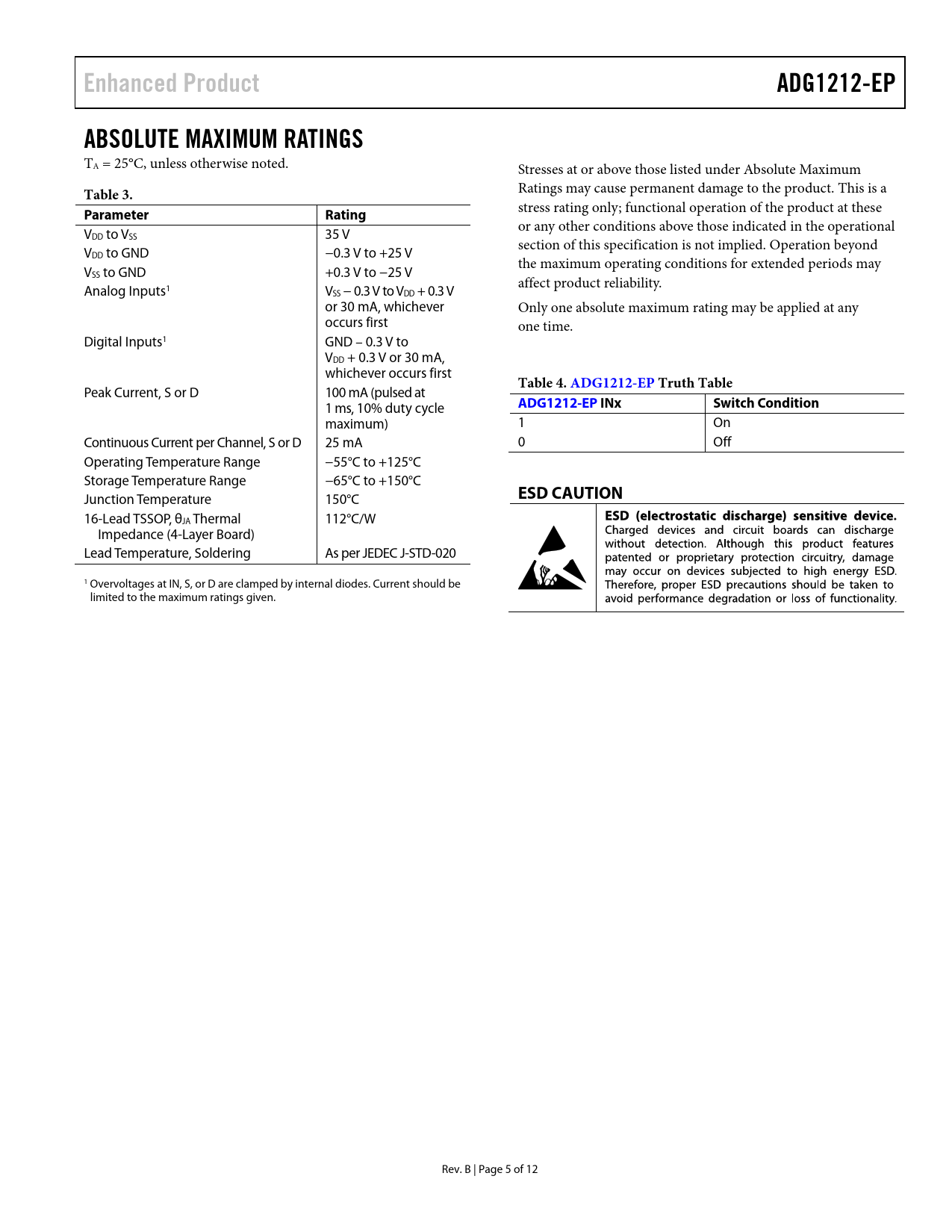

Enhanced Product ADG1212-EP ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to VSS 35 V section of this specification is not implied. Operation beyond VDD to GND −0.3 V to +25 V the maximum operating conditions for extended periods may VSS to GND +0.3 V to −25 V affect product reliability. Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or 30 mA, whichever Only one absolute maximum rating may be applied at any occurs first one time. Digital Inputs1 GND – 0.3 V to V DD + 0.3 V or 30 mA, whichever occurs first
Table 4. ADG1212-EP Truth Table
Peak Current, S or D 100 mA (pulsed at 1 ms, 10% duty cycle
ADG1212-EP I Nx Switch Condition
maximum) 1 On Continuous Current per Channel, S or D 25 mA 0 Off Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C
ESD CAUTION
16-Lead TSSOP, θJA Thermal 112°C/W Impedance (4-Layer Board) Lead Temperature, Soldering As per JEDEC J-STD-020 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. B | Page 5 of 12 Document Outline Features Enhanced Product Features Applications General Description Functional Block Diagram Product Highlights Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Outline Dimensions Ordering Guide
