Data Sheet. ADG658/ADG659. SPECIFICATIONS DUAL SUPPLY. Table 1. B Version. Y Version. −40°C. Parameter. +25°C. to +85°C. to+125°C Unit
Model Line for this Datasheet
Text Version of Document
link to page 16 link to page 16 link to page 16 link to page 16 link to page 16 link to page 17 link to page 17 link to page 16 link to page 17 link to page 17 link to page 18 link to page 17 link to page 4

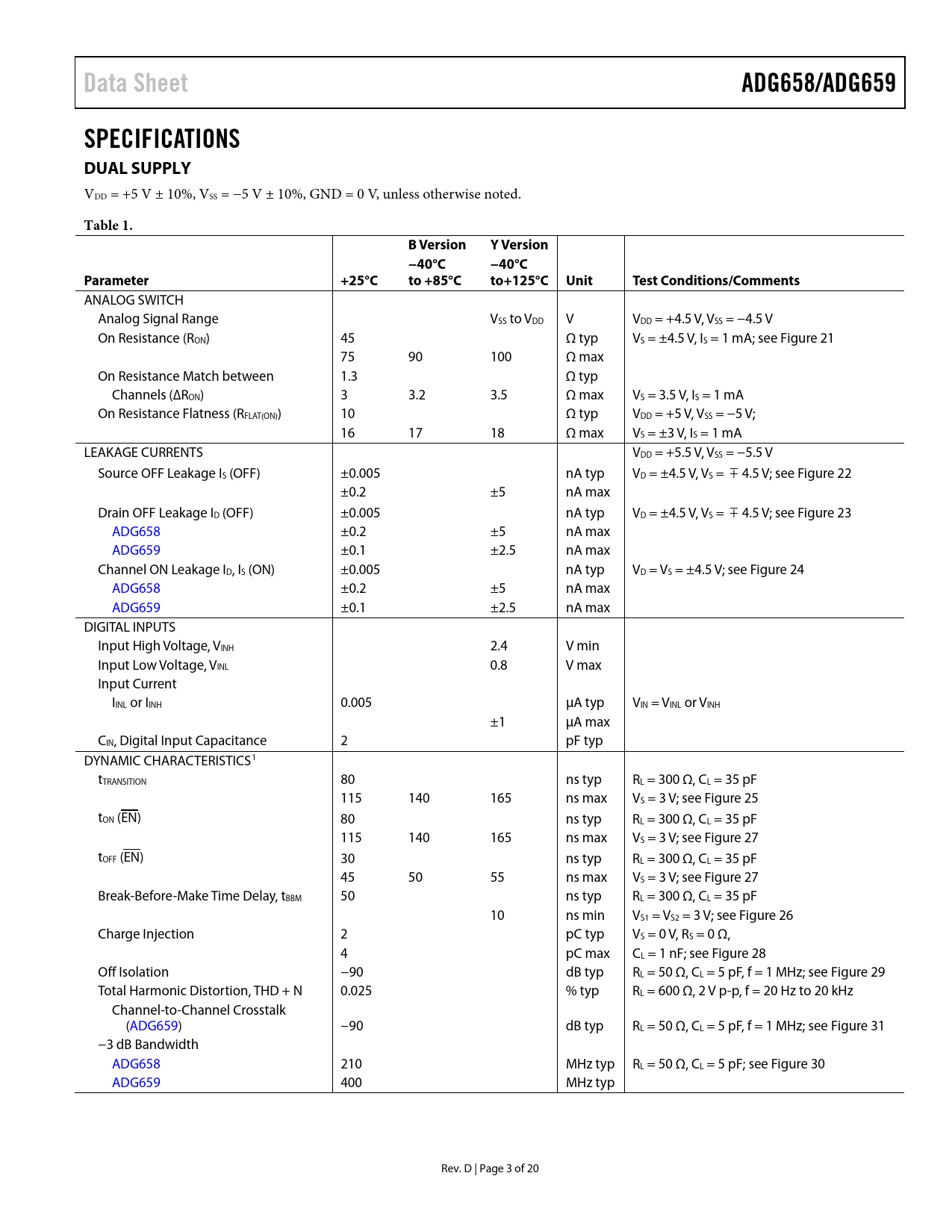

Data Sheet ADG658/ADG659 SPECIFICATIONS DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. B Version Y Version −40°C −40°C Parameter +25°C to +85°C to+125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V VDD = +4.5 V, VSS = −4.5 V On Resistance (RON) 45 Ω typ VS = ±4.5 V, IS = 1 mA; see Figure 21 75 90 100 Ω max On Resistance Match between 1.3 Ω typ Channels (∆RON) 3 3.2 3.5 Ω max VS = 3.5 V, IS = 1 mA On Resistance Flatness (RFLAT(ON)) 10 Ω typ VDD = +5 V, VSS = −5 V; 16 17 18 Ω max VS = ±3 V, IS = 1 mA LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source OFF Leakage IS (OFF) ±0.005 nA typ VD = ±4.5 V, VS = 4.5 V; see Figure 22 ±0.2 ±5 nA max Drain OFF Leakage ID (OFF) ±0.005 nA typ VD = ±4.5 V, VS = 4.5 V; see Figure 23 ADG658 ±0.2 ±5 nA max ADG659 ±0.1 ±2.5 nA max Channel ON Leakage ID, IS (ON) ±0.005 nA typ VD = VS = ±4.5 V; see Figure 24 ADG658 ±0.2 ±5 nA max ADG659 ±0.1 ±2.5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.005 µA typ VIN = VINL or VINH ±1 µA max CIN, Digital Input Capacitance 2 pF typ DYNAMIC CHARACTERISTICS1 tTRANSITION 80 ns typ RL = 300 Ω, CL = 35 pF 115 140 165 ns max VS = 3 V; see Figure 25 tON (EN) 80 ns typ RL = 300 Ω, CL = 35 pF 115 140 165 ns max VS = 3 V; see Figure 27 tOFF (EN) 30 ns typ RL = 300 Ω, CL = 35 pF 45 50 55 ns max VS = 3 V; see Figure 27 Break-Before-Make Time Delay, tBBM 50 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 3 V; see Figure 26 Charge Injection 2 pC typ VS = 0 V, RS = 0 Ω, 4 pC max CL = 1 nF; see Figure 28 Off Isolation −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 Total Harmonic Distortion, THD + N 0.025 % typ RL = 600 Ω, 2 V p-p, f = 20 Hz to 20 kHz Channel-to-Channel Crosstalk (ADG659) −90 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 −3 dB Bandwidth ADG658 210 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 30 ADG659 400 MHz typ Rev. D | Page 3 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY 5 V SINGLE SUPPLY 2.7 V TO 3.6 V SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
Data Sheet ADG658/ADG659 SPECIFICATIONS DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. B Version Y Version −40°C −40°C Parameter +25°C to +85°C to+125°C Unit Test Conditions/Comments
