Datasheet ADG619, ADG620 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | CMOS, ±5 V/+5 V, 4 Ω, Single SPDT Switches |
| Pages / Page | 16 / 4 — ADG619/ADG620. Version1. Parameter. +25°C. −40°C to +85°C. Unit. Test … |
| Revision | C |
| File Format / Size | PDF / 367 Kb |
| Document Language | English |

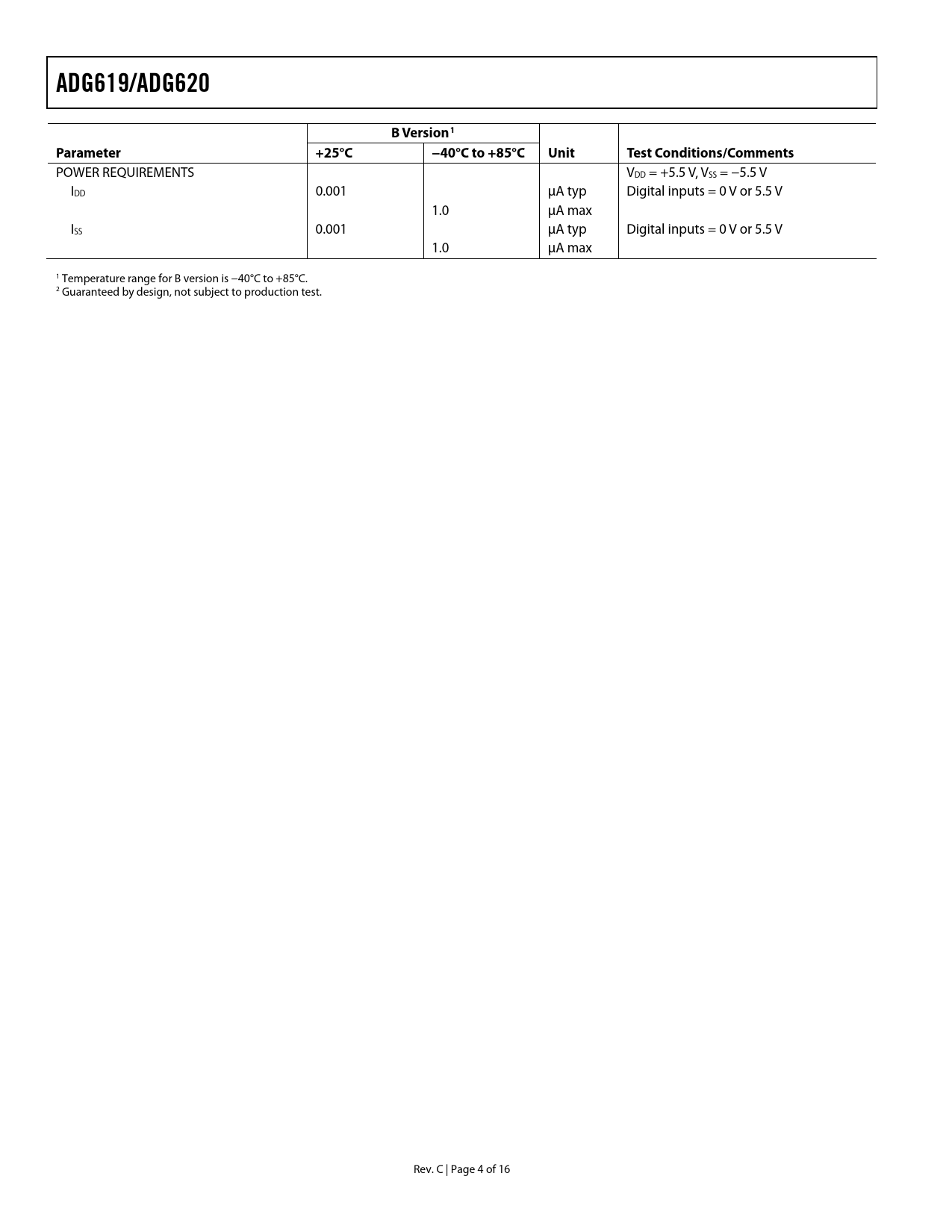

ADG619/ADG620. Version1. Parameter. +25°C. −40°C to +85°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
ADG619/ADG620 B Version1 Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max ISS 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max 1 Temperature range for B version is −40°C to +85°C. 2 Guaranteed by design, not subject to production test. Rev. C | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
