Datasheet ADG619, ADG620 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | CMOS, ±5 V/+5 V, 4 Ω, Single SPDT Switches |
| Pages / Page | 16 / 7 — ADG619/ADG620. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. D 1. 8 S2. … |
| Revision | C |
| File Format / Size | PDF / 367 Kb |
| Document Language | English |

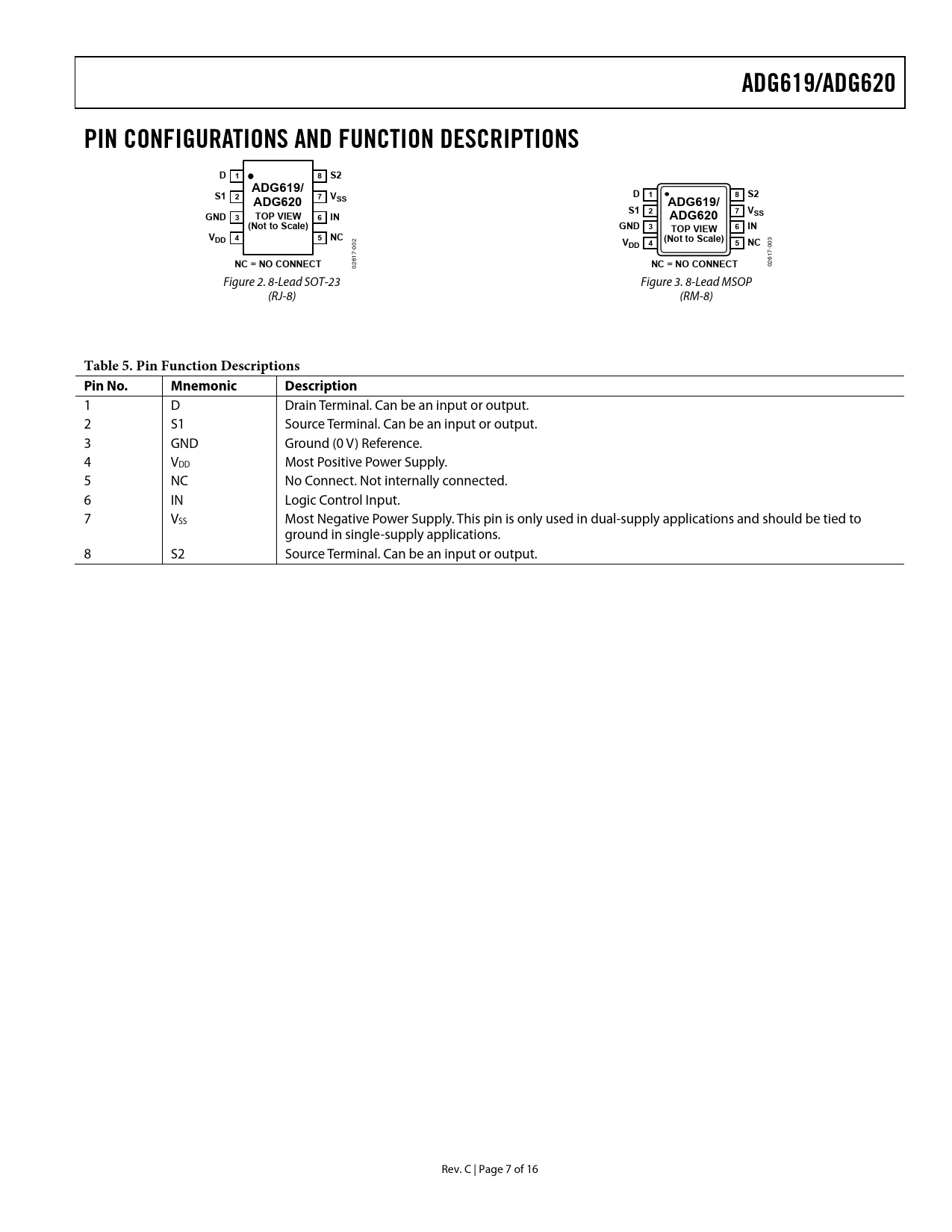

ADG619/ADG620. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. D 1. 8 S2. ADG619/. S1 2. 7 V. ADG620. GND 3. TOP VIEW. 6 IN. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
ADG619/ADG620 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS D 1 8 S2 ADG619/ S1 2 7 V D 8 S2 SS ADG620 1 ADG619/ S1 2 7 V GND 3 TOP VIEW 6 IN ADG620 SS (Not to Scale) GND 3 TOP VIEW 6 IN VDD 4 5 NC
2
(Not to Scale) V 5 NC
03 00
DD 4
-0 7- 617
NC = NO CONNECT
61 02
NC = NO CONNECT
02 Figure 2. 8-Lead SOT-23 Figure 3. 8-Lead MSOP (RJ-8) (RM-8)
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 D Drain Terminal. Can be an input or output. 2 S1 Source Terminal. Can be an input or output. 3 GND Ground (0 V) Reference. 4 VDD Most Positive Power Supply. 5 NC No Connect. Not internally connected. 6 IN Logic Control Input. 7 VSS Most Negative Power Supply. This pin is only used in dual-supply applications and should be tied to ground in single-supply applications. 8 S2 Source Terminal. Can be an input or output. Rev. C | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
