Datasheet ADG451, ADG452, ADG453 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 5 Ω RON SPST Switches |
| Pages / Page | 16 / 3 — ADG451/ADG452/ADG453. PRODUCT HIGHLIGHTS |
| Revision | C |
| File Format / Size | PDF / 414 Kb |
| Document Language | English |

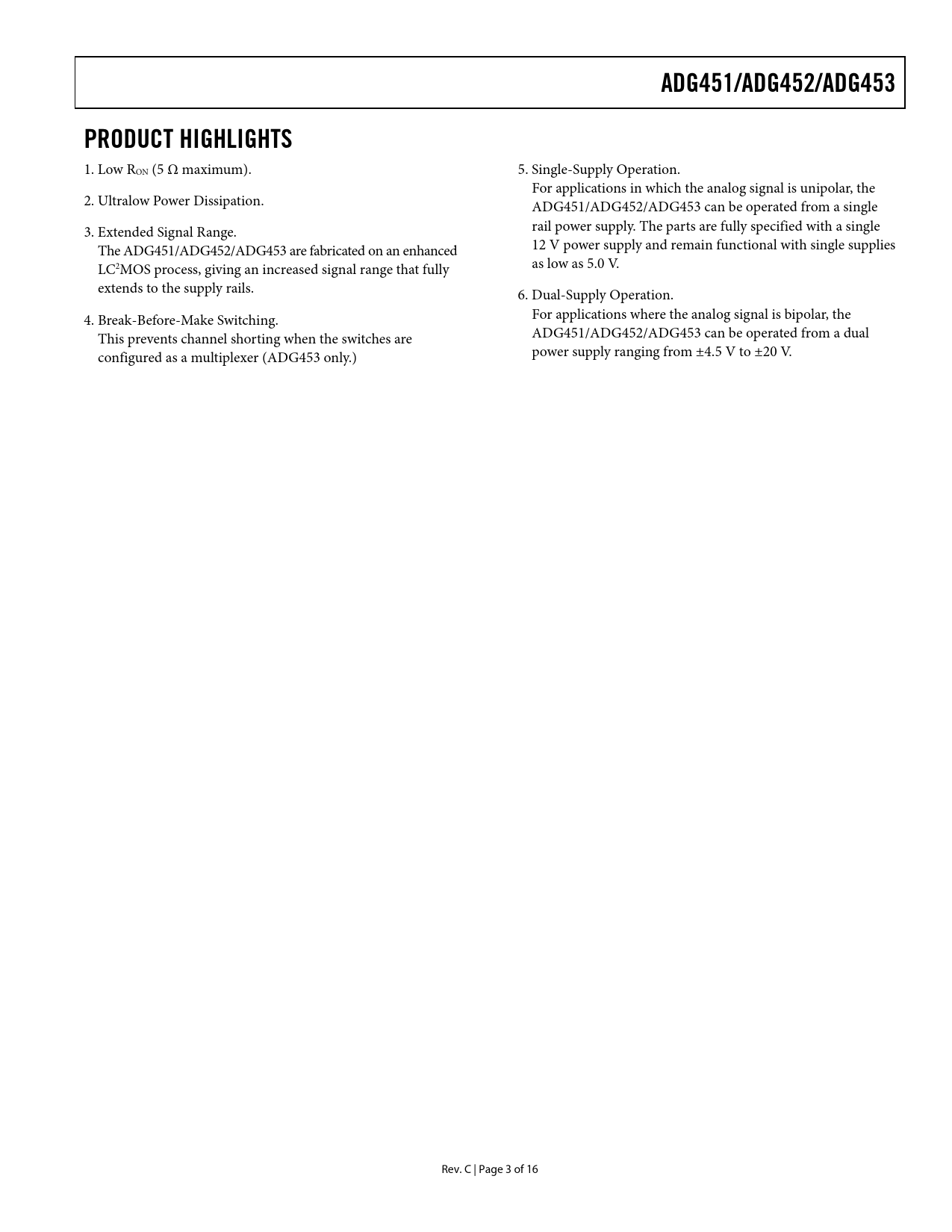

ADG451/ADG452/ADG453. PRODUCT HIGHLIGHTS
Model Line for this Datasheet
Text Version of Document
ADG451/ADG452/ADG453 PRODUCT HIGHLIGHTS
1. Low RON (5 Ω maximum). 5. Single-Supply Operation. For applications in which the analog signal is unipolar, the 2. Ultralow Power Dissipation. ADG451/ADG452/ADG453 can be operated from a single 3. Extended Signal Range. rail power supply. The parts are fully specified with a single The ADG451/ADG452/ADG453 are fabricated on an enhanced 12 V power supply and remain functional with single supplies LC2MOS process, giving an increased signal range that fully as low as 5.0 V. extends to the supply rails. 6. Dual-Supply Operation. 4. Break-Before-Make Switching. For applications where the analog signal is bipolar, the This prevents channel shorting when the switches are ADG451/ADG452/ADG453 can be operated from a dual configured as a multiplexer (ADG453 only.) power supply ranging from ±4.5 V to ±20 V. Rev. C | Page 3 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY PRODUCT HIGHLIGHTS SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
