Datasheet ADG451, ADG452, ADG453 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 5 Ω RON SPST Switches |
| Pages / Page | 16 / 6 — ADG451/ADG452/ADG453. 5 V DUAL SUPPLY. Table 3. B. Version. Parameter … |
| Revision | C |
| File Format / Size | PDF / 414 Kb |
| Document Language | English |

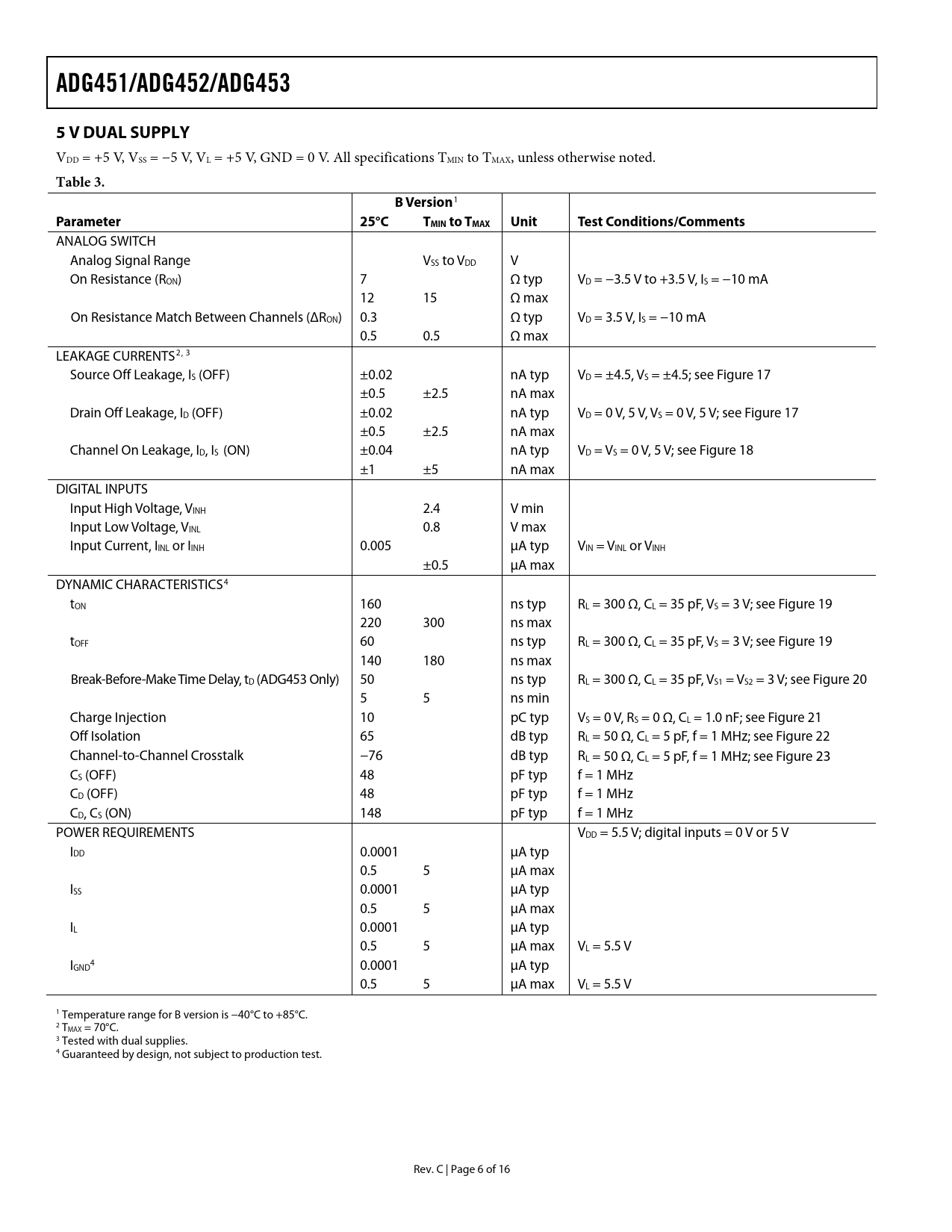

ADG451/ADG452/ADG453. 5 V DUAL SUPPLY. Table 3. B. Version. Parameter 25°C. TMIN to TMAX Unit. Test. Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 16 link to page 16 link to page 16 link to page 13 link to page 13 link to page 13 link to page 16 link to page 13 link to page 13 link to page 13 link to page 13 link to page 14 link to page 14 link to page 6 link to page 6 link to page 6
ADG451/ADG452/ADG453 5 V DUAL SUPPLY
VDD = +5 V, VSS = −5 V, VL = +5 V, GND = 0 V. All specifications TMIN to TMAX, unless otherwise noted.
Table 3. B Version
1
Parameter 25°C TMIN to TMAX Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V On Resistance (RON) 7 Ω typ VD = −3.5 V to +3.5 V, IS = −10 mA 12 15 Ω max On Resistance Match Between Channels (ΔRON) 0.3 Ω typ VD = 3.5 V, IS = −10 mA 0.5 0.5 Ω max LEAKAGE CURRENTS2, 3 Source Off Leakage, IS (OFF) ±0.02 nA typ VD = ±4.5, VS = ±4.5; see Figure 17 ±0.5 ±2.5 nA max Drain Off Leakage, ID (OFF) ±0.02 nA typ VD = 0 V, 5 V, VS = 0 V, 5 V; see Figure 17 ±0.5 ±2.5 nA max Channel On Leakage, ID, IS (ON) ±0.04 nA typ VD = VS = 0 V, 5 V; see Figure 18 ±1 ±5 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.5 μA max DYNAMIC CHARACTERISTICS4 tON 160 ns typ RL = 300 Ω, CL = 35 pF, VS = 3 V; see Figure 19 220 300 ns max tOFF 60 ns typ RL = 300 Ω, CL = 35 pF, VS = 3 V; see Figure 19 140 180 ns max Break-Before-Make Time Delay, tD (ADG453 Only) 50 ns typ RL = 300 Ω, CL = 35 pF, VS1 = VS2 = 3 V; see Figure 20 5 5 ns min Charge Injection 10 pC typ VS = 0 V, RS = 0 Ω, CL = 1.0 nF; see Figure 21 Off Isolation 65 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 22 Channel-to-Channel Crosstalk −76 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 23 CS (OFF) 48 pF typ f = 1 MHz CD (OFF) 48 pF typ f = 1 MHz CD, CS (ON) 148 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 5.5 V; digital inputs = 0 V or 5 V IDD 0.0001 μA typ 0.5 5 μA max ISS 0.0001 μA typ 0.5 5 μA max IL 0.0001 μA typ 0.5 5 μA max VL = 5.5 V I 4 GND 0.0001 μA typ 0.5 5 μA max VL = 5.5 V 1 Temperature range for B version is −40°C to +85°C. 2 TMAX = 70°C. 3 Tested with dual supplies. 4 Guaranteed by design, not subject to production test. Rev. C | Page 6 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY PRODUCT HIGHLIGHTS SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY APPLICATIONS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
