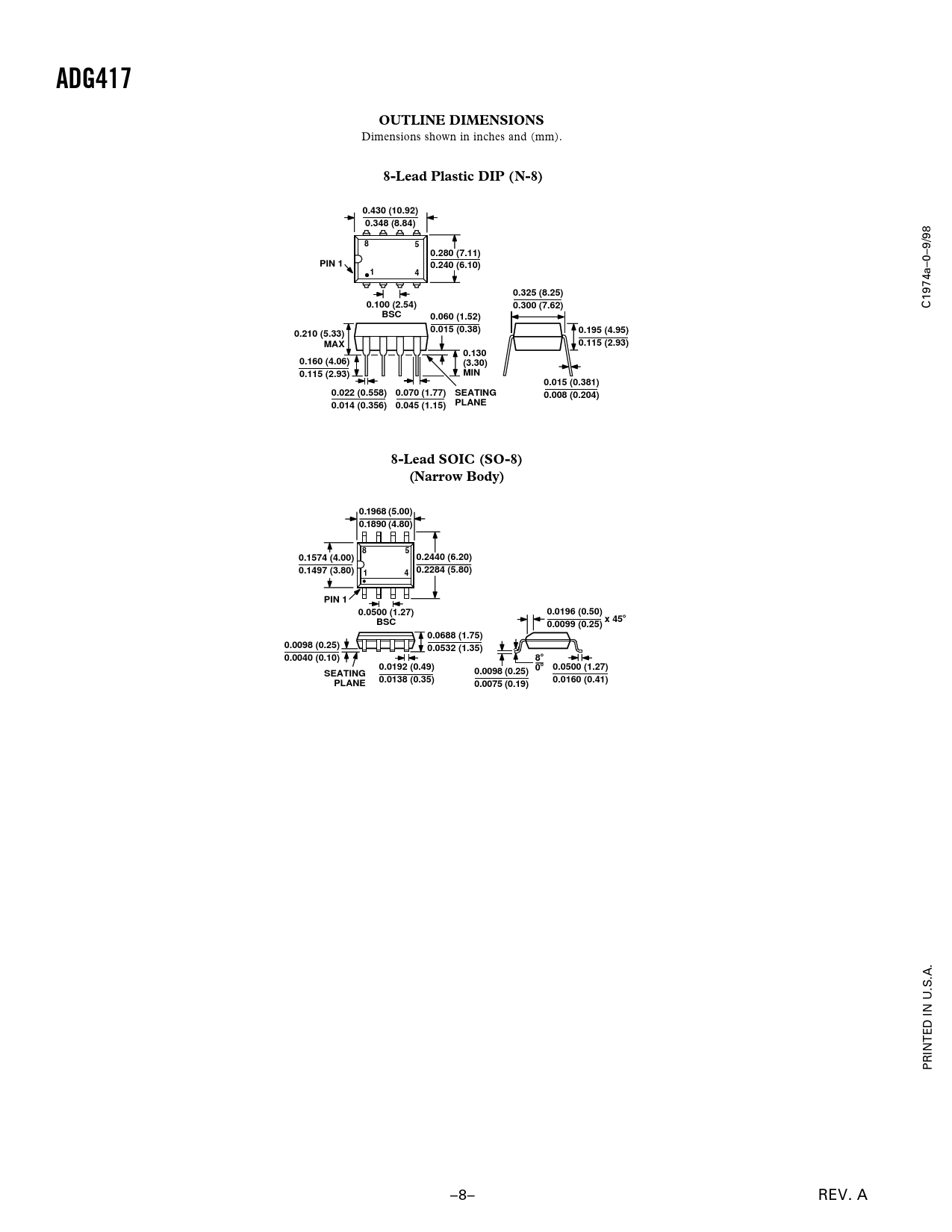

ADG417. OUTLINE DIMENSIONS. 8-Lead Plastic DIP (N-8). 0.430 (10.92). 0.348 (8.84). 0.280 (7.11). PIN 1. 0.240 (6.10). 0.325 (8.25)
Model Line for this Datasheet
Text Version of Document
ADG417 OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
8-Lead Plastic DIP (N-8) 0.430 (10.92) 0.348 (8.84) 8 5 0.280 (7.11) PIN 1 0.240 (6.10) 1 4 0.325 (8.25) 0.100 (2.54) 0.300 (7.62)
C1974a–0–9/98
BSC 0.060 (1.52) 0.015 (0.38) 0.210 (5.33) 0.195 (4.95) MAX 0.115 (2.93) 0.130 0.160 (4.06) (3.30) MIN 0.115 (2.93) 0.015 (0.381) 0.022 (0.558) 0.070 (1.77) SEATING 0.008 (0.204) PLANE 0.014 (0.356) 0.045 (1.15) 8-Lead SOIC (SO-8) (Narrow Body) 0.1968 (5.00) 0.1890 (4.80) 8 5 0.1574 (4.00) 0.2440 (6.20) 0.1497 (3.80) 1 4 0.2284 (5.80) PIN 1 0.0500 (1.27) 0.0196 (0.50) BSC x 45
