Datasheet ADG508F, ADG509F (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 8-Channel/4-Channel Fault-Protected Analog Multiplexers |
| Pages / Page | 20 / 3 — ADG508F/ADG509F. SPECIFICATIONS DUAL SUPPLY. Table 1. B. Version. … |
| Revision | F |
| File Format / Size | PDF / 289 Kb |
| Document Language | English |
ADG508F/ADG509F. SPECIFICATIONS DUAL SUPPLY. Table 1. B. Version. Parameter. +25°C. −40°C to +85°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 13 link to page 13 link to page 13 link to page 13 link to page 4

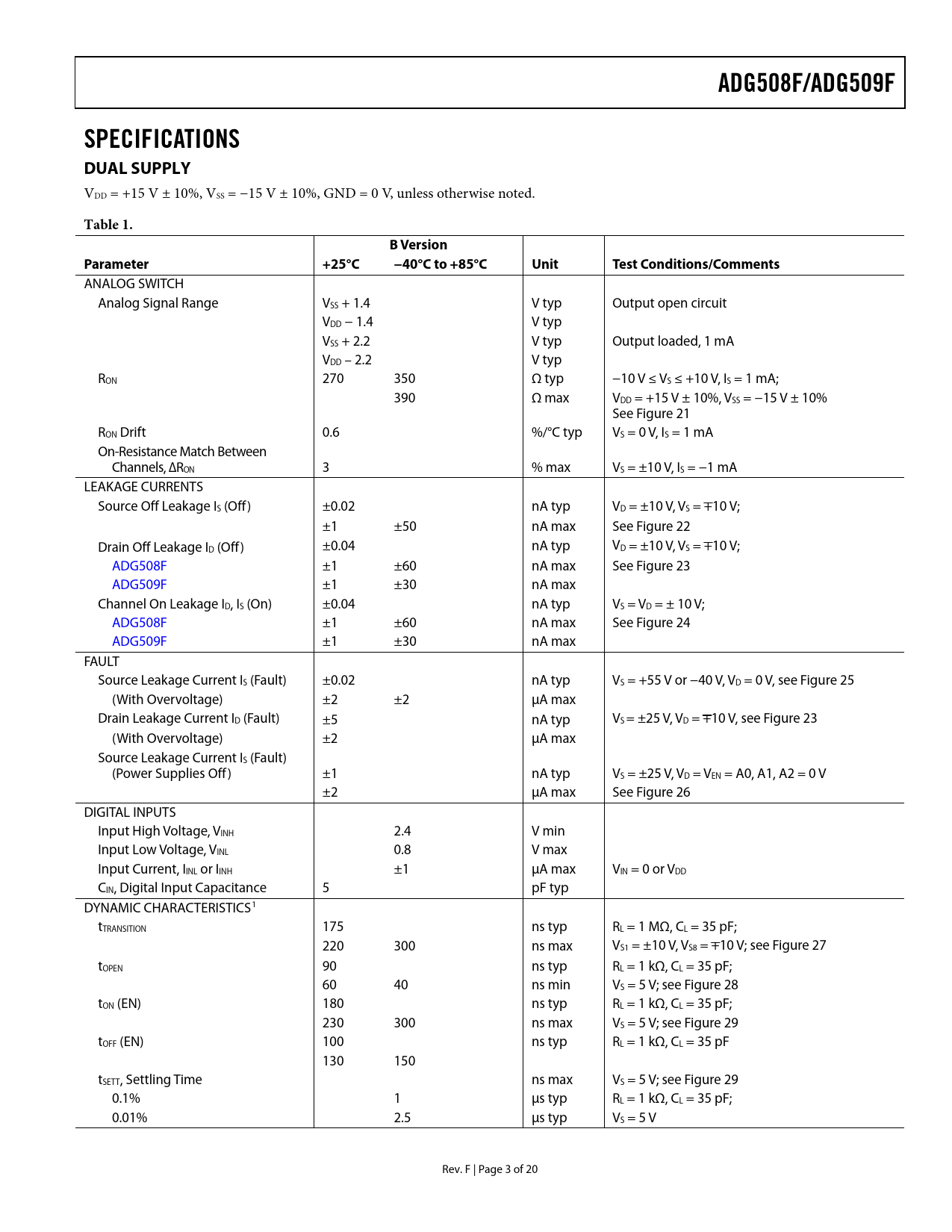

ADG508F/ADG509F SPECIFICATIONS DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. B Version Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS + 1.4 V typ Output open circuit VDD − 1.4 V typ VSS + 2.2 V typ Output loaded, 1 mA VDD – 2.2 V typ RON 270 350 Ω typ −10 V ≤ VS ≤ +10 V, IS = 1 mA; 390 Ω max VDD = +15 V ± 10%, VSS = −15 V ± 10% See Figure 21 RON Drift 0.6 %/°C typ VS = 0 V, IS = 1 mA On-Resistance Match Between Channels, ∆RON 3 % max VS = ±10 V, IS = −1 mA LEAKAGE CURRENTS Source Off Leakage IS (Off ) ±0.02 nA typ VD = ±10 V, VS = +10 V; ±1 ±50 nA max See Figure 22 Drain Off Leakage ID (Off ) ±0.04 nA typ VD = ±10 V, VS = +10 V; ADG508F ±1 ±60 nA max See Figure 23 ADG509F ±1 ±30 nA max Channel On Leakage ID, IS (On) ±0.04 nA typ VS = VD = ± 10 V; ADG508F ±1 ±60 nA max See Figure 24 ADG509F ±1 ±30 nA max FAULT Source Leakage Current IS (Fault) ±0.02 nA typ VS = +55 V or −40 V, VD = 0 V, see Figure 25 (With Overvoltage) ±2 ±2 μA max Drain Leakage Current ID (Fault) ±5 nA typ VS = ±25 V, VD = +10 V, see Figure 23 (With Overvoltage) ±2 μA max Source Leakage Current IS (Fault) (Power Supplies Off ) ±1 nA typ VS = ±25 V, VD = VEN = A0, A1, A2 = 0 V ±2 μA max See Figure 26 DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±1 μA max VIN = 0 or VDD CIN, Digital Input Capacitance 5 pF typ DYNAMIC CHARACTERISTICS1 tTRANSITION 175 ns typ RL = 1 MΩ, CL = 35 pF; 220 300 ns max VS1 = ±10 V, VS8 = +10 V; see Figure 27 tOPEN 90 ns typ RL = 1 kΩ, CL = 35 pF; 60 40 ns min VS = 5 V; see Figure 28 tON (EN) 180 ns typ RL = 1 kΩ, CL = 35 pF; 230 300 ns max VS = 5 V; see Figure 29 tOFF (EN) 100 ns typ RL = 1 kΩ, CL = 35 pF 130 150 tSETT, Settling Time ns max VS = 5 V; see Figure 29 0.1% 1 μs typ RL = 1 kΩ, CL = 35 pF; 0.01% 2.5 μs typ VS = 5 V Rev. F | Page 3 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY TRUTH TABLES ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
ADG508F/ADG509F SPECIFICATIONS DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. B Version Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
