Datasheet ADG508F, ADG509F (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 8-Channel/4-Channel Fault-Protected Analog Multiplexers |
| Pages / Page | 20 / 5 — ADG508F/ADG509F. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter Rating. ESD … |
| Revision | F |
| File Format / Size | PDF / 289 Kb |
| Document Language | English |

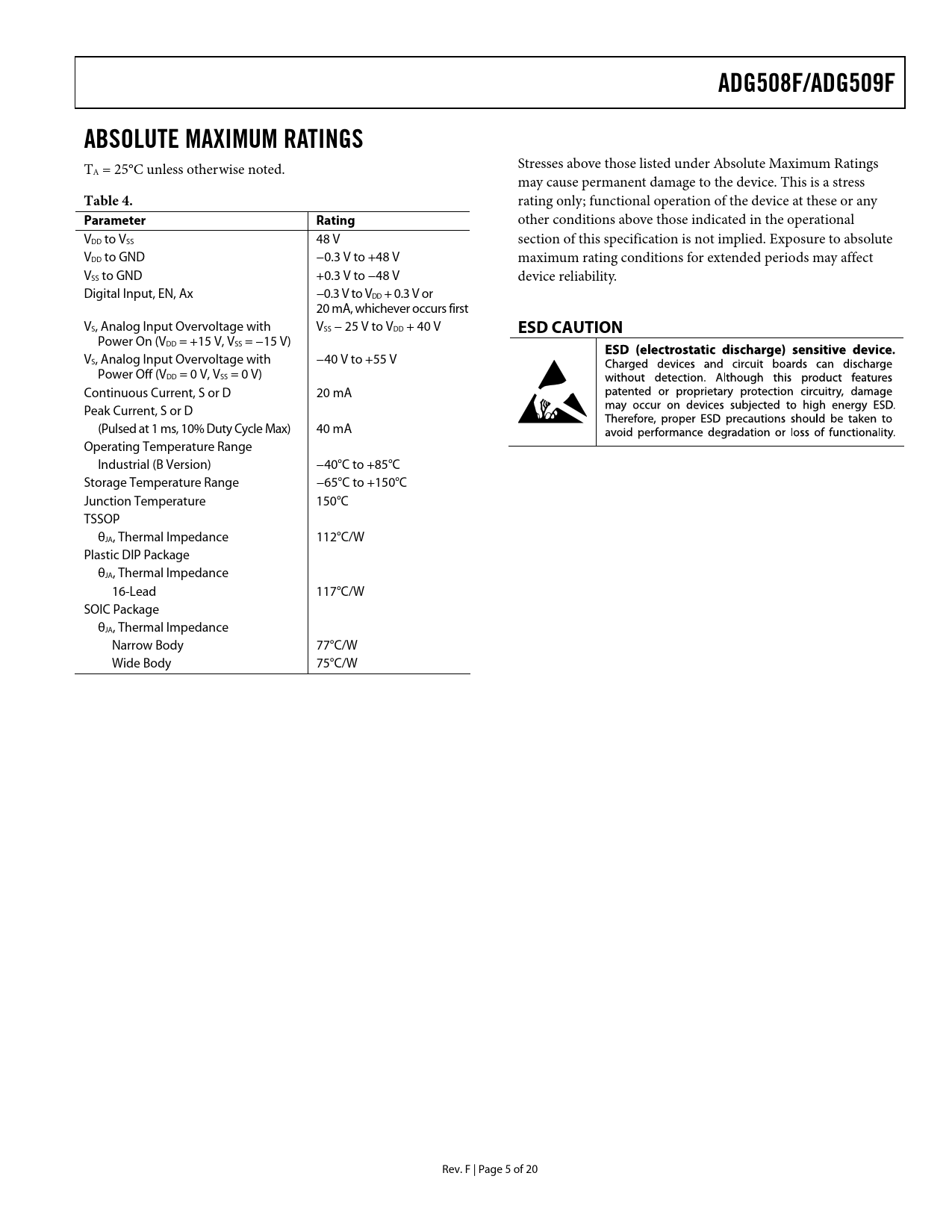

ADG508F/ADG509F. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADG508F/ADG509F ABSOLUTE MAXIMUM RATINGS
T Stresses above those listed under Absolute Maximum Ratings A = 25°C unless otherwise noted. may cause permanent damage to the device. This is a stress
Table 4.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational VDD to VSS 48 V section of this specification is not implied. Exposure to absolute VDD to GND −0.3 V to +48 V maximum rating conditions for extended periods may affect VSS to GND +0.3 V to −48 V device reliability. Digital Input, EN, Ax −0.3 V to VDD + 0.3 V or 20 mA, whichever occurs first VS, Analog Input Overvoltage with VSS − 25 V to VDD + 40 V
