Datasheet ADG419 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | LC2MOS Precision Mini-DIP Analog Switch |
| Pages / Page | 16 / 10 — ADG419. +15V. +5V. 0.1µF. VDD. 50Ω. VOUT. VOUTRL. VIN. GND. VSS. –15V. … |
| Revision | B |
| File Format / Size | PDF / 319 Kb |
| Document Language | English |

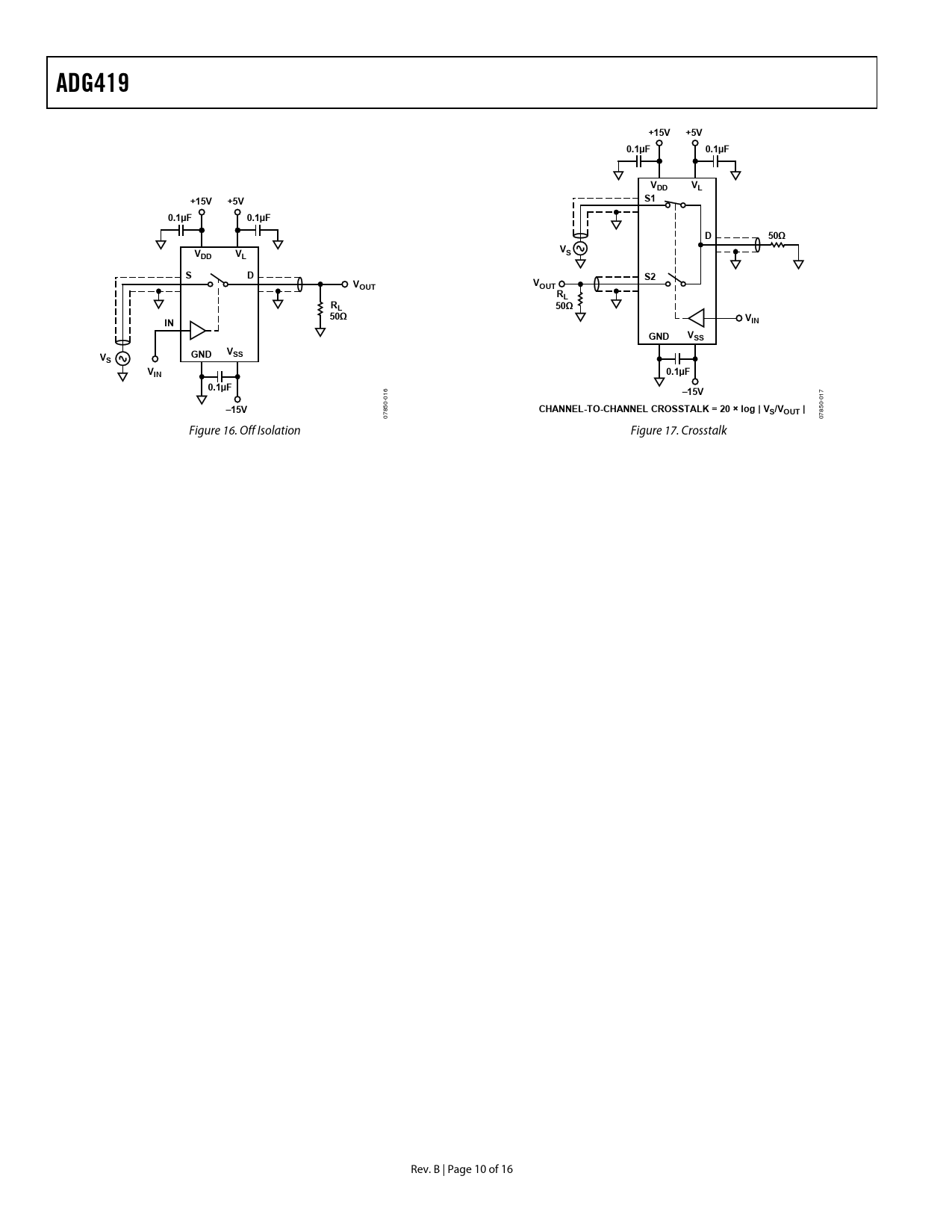

ADG419. +15V. +5V. 0.1µF. VDD. 50Ω. VOUT. VOUTRL. VIN. GND. VSS. –15V. CHANNEL-TO-CHANNEL CROSSTALK = 20 × log | VS/VOUT |
Model Line for this Datasheet
Text Version of Document
ADG419 +15V +5V 0.1µF 0.1µF VDD VL +15V +5V S1 0.1µF 0.1µF D 50Ω V V DD VL S S D S2 VOUT VOUTRL RL 50Ω 50Ω IN VIN GND VSS V V GND SS S VIN 0.1µF 0.1µF
7 16
–15V
0 01 0- 0-
–15V
85
CHANNEL-TO-CHANNEL CROSSTALK = 20 × log | VS/VOUT |
85 07 07 Figure 16. Off Isolation Figure 17. Crosstalk Rev. B | Page 10 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
