Datasheet ADG419-EP (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | LC2MOS Precision Analog Switch in MSOP |
| Pages / Page | 12 / 10 — ADG419-EP. OUTLINE DIMENSIONS. 3.20 3.00 2.80. 5.15. 3.20. 4.90. 3.00. … |
| File Format / Size | PDF / 198 Kb |
| Document Language | English |
ADG419-EP. OUTLINE DIMENSIONS. 3.20 3.00 2.80. 5.15. 3.20. 4.90. 3.00. 4.65. 2.80. PIN 1. IDENTIFIER. 0.65 BSC. 0.95. 15° MAX. 0.85. 1.10 MAX. 0.75. 0.80
Model Line for this Datasheet
Text Version of Document
link to page 10

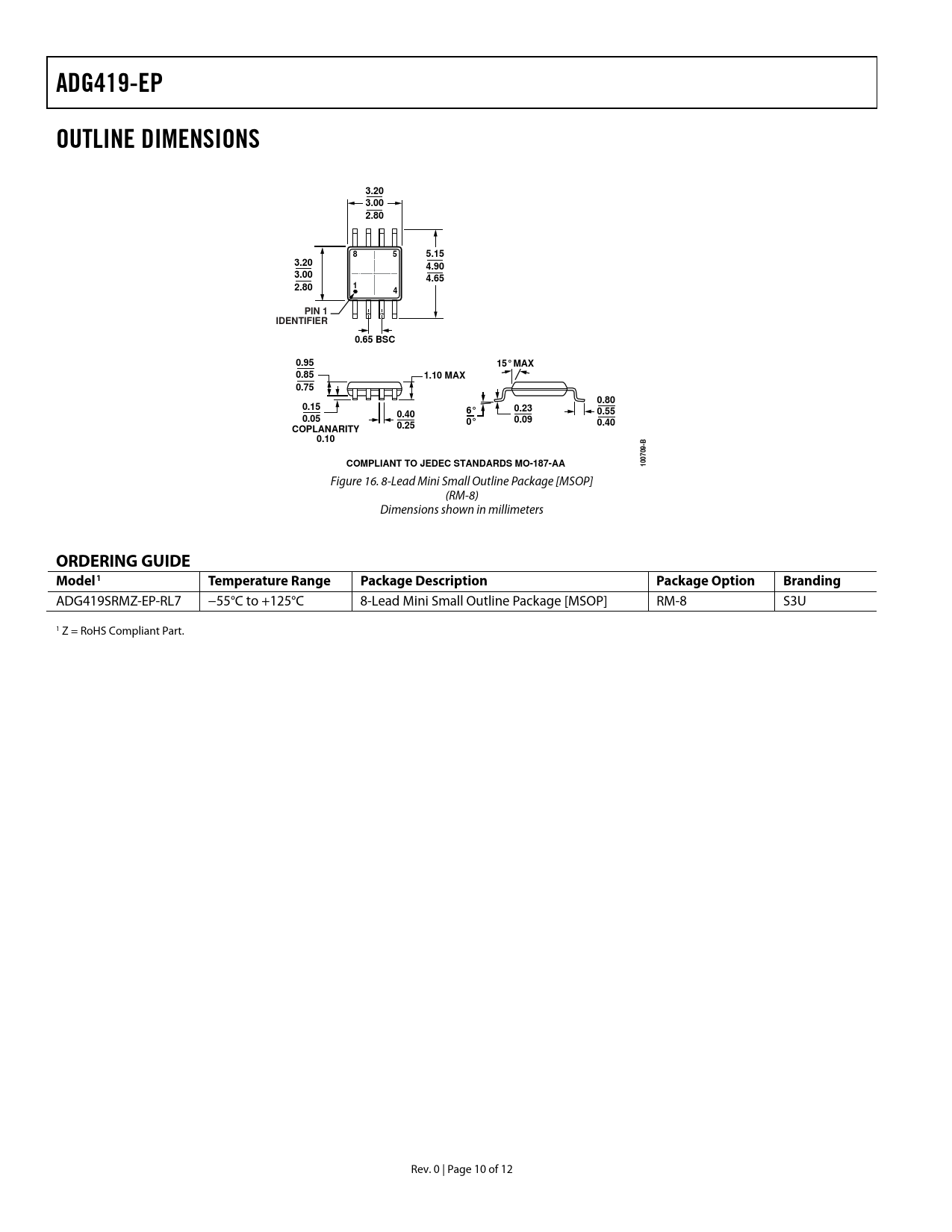

ADG419-EP OUTLINE DIMENSIONS 3.20 3.00 2.80 8 5 5.15 3.20 4.90 3.00 4.65 1 2.80 4 PIN 1 IDENTIFIER 0.65 BSC 0.95 15° MAX 0.85 1.10 MAX 0.75 0.80 0.15 6° 0.23 0.55 0.40 0.05 0° 0.09 0.40 0.25 COPLANARITY 0.10 B COMPLIANT TO JEDEC STANDARDS MO-187-AA 100709-
Figure 16. 8-Lead Mini Small Outline Package [MSOP] (RM-8) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Branding
ADG419SRMZ-EP-RL7 −55°C to +125°C 8-Lead Mini Small Outline Package [MSOP] RM-8 S3U 1 Z = RoHS Compliant Part. Rev. 0 | Page 10 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
