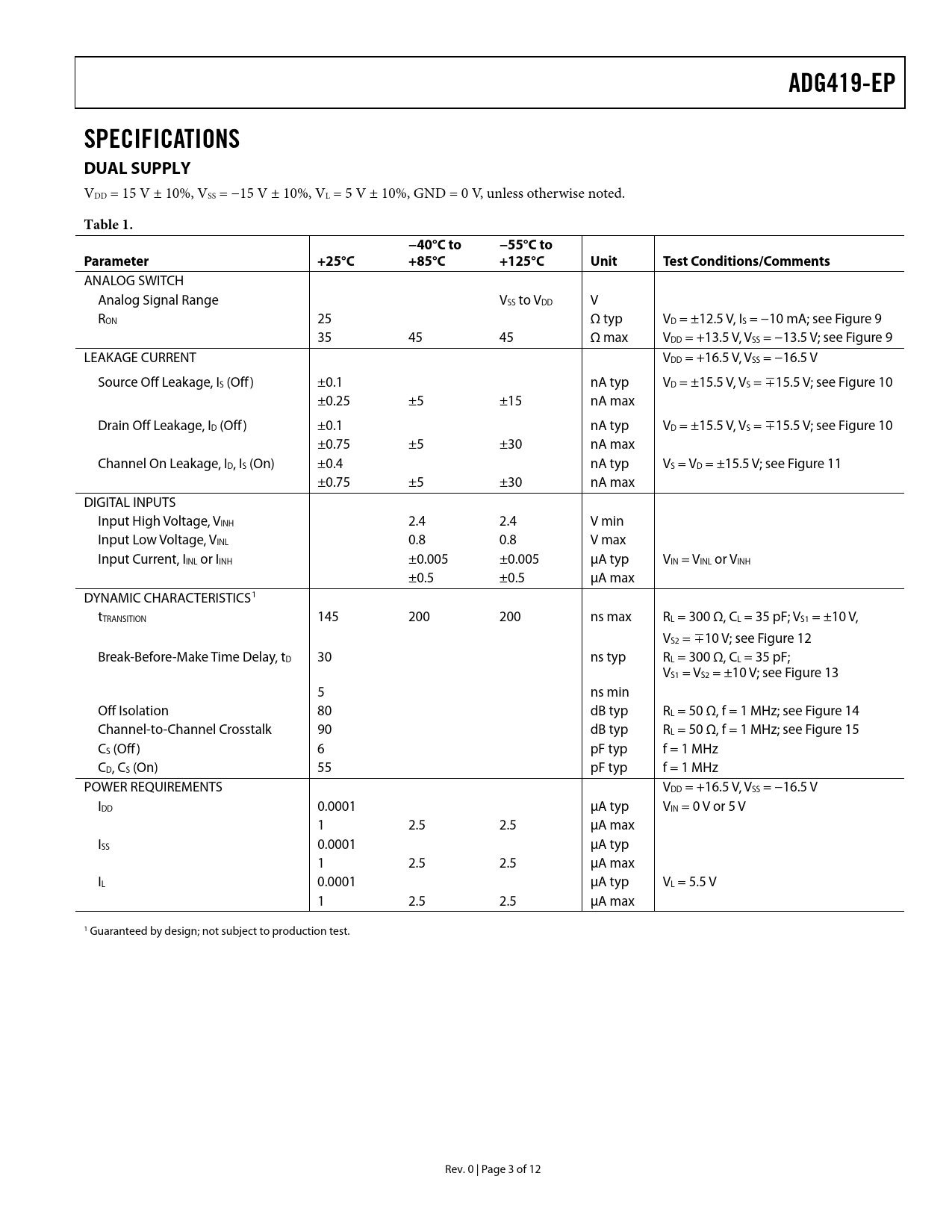

ADG419-EP SPECIFICATIONS DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, VL = 5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. −40°C to −55°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V RON 25 Ω typ VD = ±12.5 V, IS = −10 mA; see Figure 9 35 45 45 Ω max VDD = +13.5 V, VSS = −13.5 V; see Figure 9 LEAKAGE CURRENT VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off ) ±0.1 nA typ VD = ±15.5 V, VS = ∓15.5 V; see Figure 10 ±0.25 ±5 ±15 nA max Drain Off Leakage, ID (Off ) ±0.1 nA typ VD = ±15.5 V, VS = ∓15.5 V; see Figure 10 ±0.75 ±5 ±30 nA max Channel On Leakage, ID, IS (On) ±0.4 nA typ VS = VD = ±15.5 V; see Figure 11 ±0.75 ±5 ±30 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 2.4 V min Input Low Voltage, VINL 0.8 0.8 V max Input Current, IINL or IINH ±0.005 ±0.005 μA typ VIN = VINL or VINH ±0.5 ±0.5 μA max DYNAMIC CHARACTERISTICS1 tTRANSITION 145 200 200 ns max RL = 300 Ω, CL = 35 pF; VS1 = ±10 V, VS2 = ∓10 V; see Figure 12 Break-Before-Make Time Delay, tD 30 ns typ RL = 300 Ω, CL = 35 pF; VS1 = VS2 = ±10 V; see Figure 13 5 ns min Off Isolation 80 dB typ RL = 50 Ω, f = 1 MHz; see Figure 14 Channel-to-Channel Crosstalk 90 dB typ RL = 50 Ω, f = 1 MHz; see Figure 15 CS (Off ) 6 pF typ f = 1 MHz CD, CS (On) 55 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.0001 μA typ VIN = 0 V or 5 V 1 2.5 2.5 μA max ISS 0.0001 μA typ 1 2.5 2.5 μA max IL 0.0001 μA typ VL = 5.5 V 1 2.5 2.5 μA max 1 Guaranteed by design; not subject to production test. Rev. 0 | Page 3 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
