| Manufacturer | Analog Devices |
| Description | 0.58 Ω CMOS, 1.8 V to 5.5 V, Quad SPDT/2:1 Mux in Mini LFCSP |
| Pages / Page | 16 / 5 — Data Sheet. ADG858. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. … |
| Revision | B |
| File Format / Size | PDF / 305 Kb |
| Document Language | English |

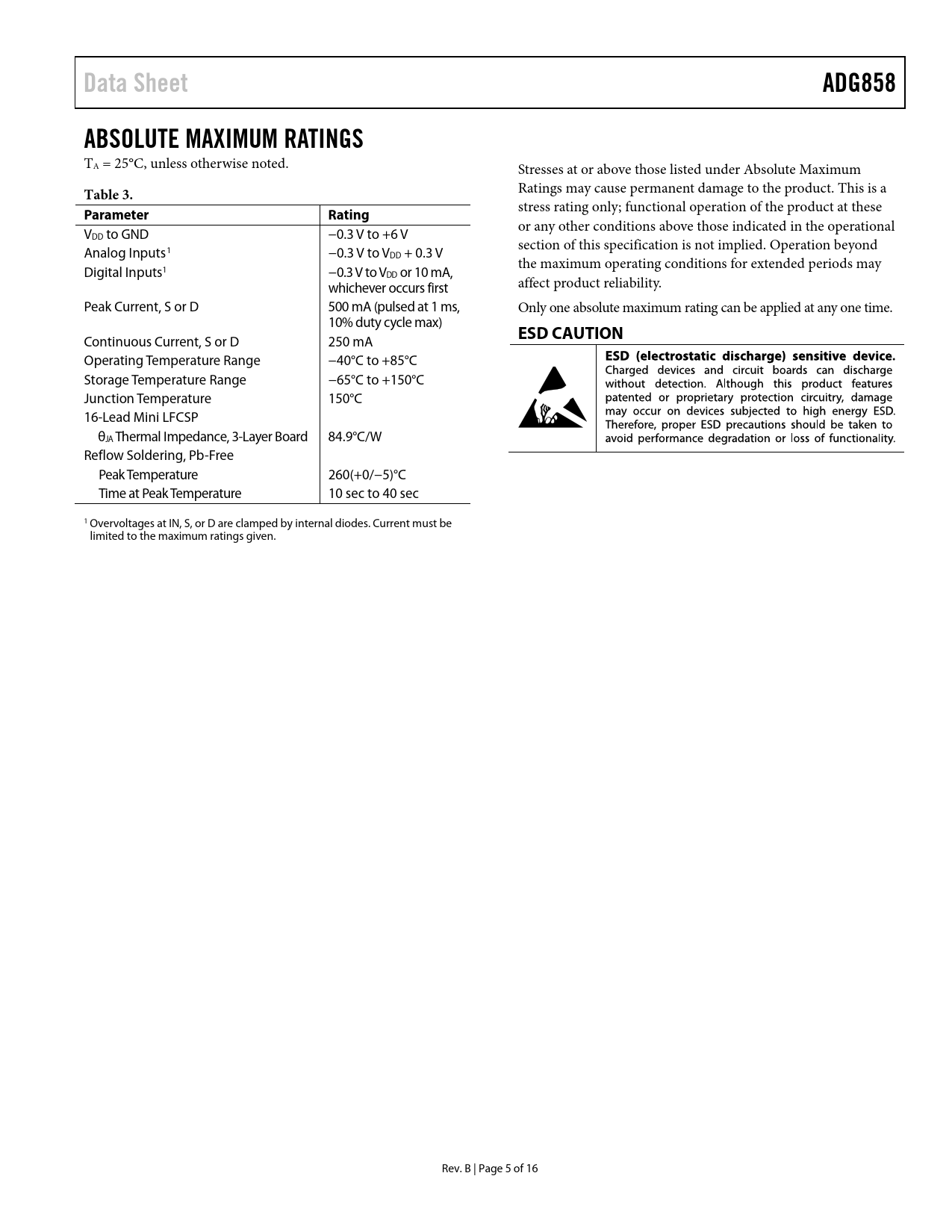

Data Sheet. ADG858. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet ADG858 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to GND −0.3 V to +6 V section of this specification is not implied. Operation beyond Analog Inputs1 −0.3 V to VDD + 0.3 V the maximum operating conditions for extended periods may Digital Inputs1 −0.3 V to VDD or 10 mA, whichever occurs first affect product reliability. Peak Current, S or D 500 mA (pulsed at 1 ms, Only one absolute maximum rating can be applied at any one time. 10% duty cycle max)
ESD CAUTION
Continuous Current, S or D 250 mA Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 16-Lead Mini LFCSP θ JA Thermal Impedance, 3-Layer Board 84.9°C/W Reflow Soldering, Pb-Free Peak Temperature 260(+0/−5)°C Time at Peak Temperature 10 sec to 40 sec 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current must be limited to the maximum ratings given. Rev. B | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISTION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
