Datasheet ADG858 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 0.58 Ω CMOS, 1.8 V to 5.5 V, Quad SPDT/2:1 Mux in Mini LFCSP |
| Pages / Page | 16 / 6 — ADG858. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. S1A 1. … |
| Revision | B |
| File Format / Size | PDF / 305 Kb |
| Document Language | English |

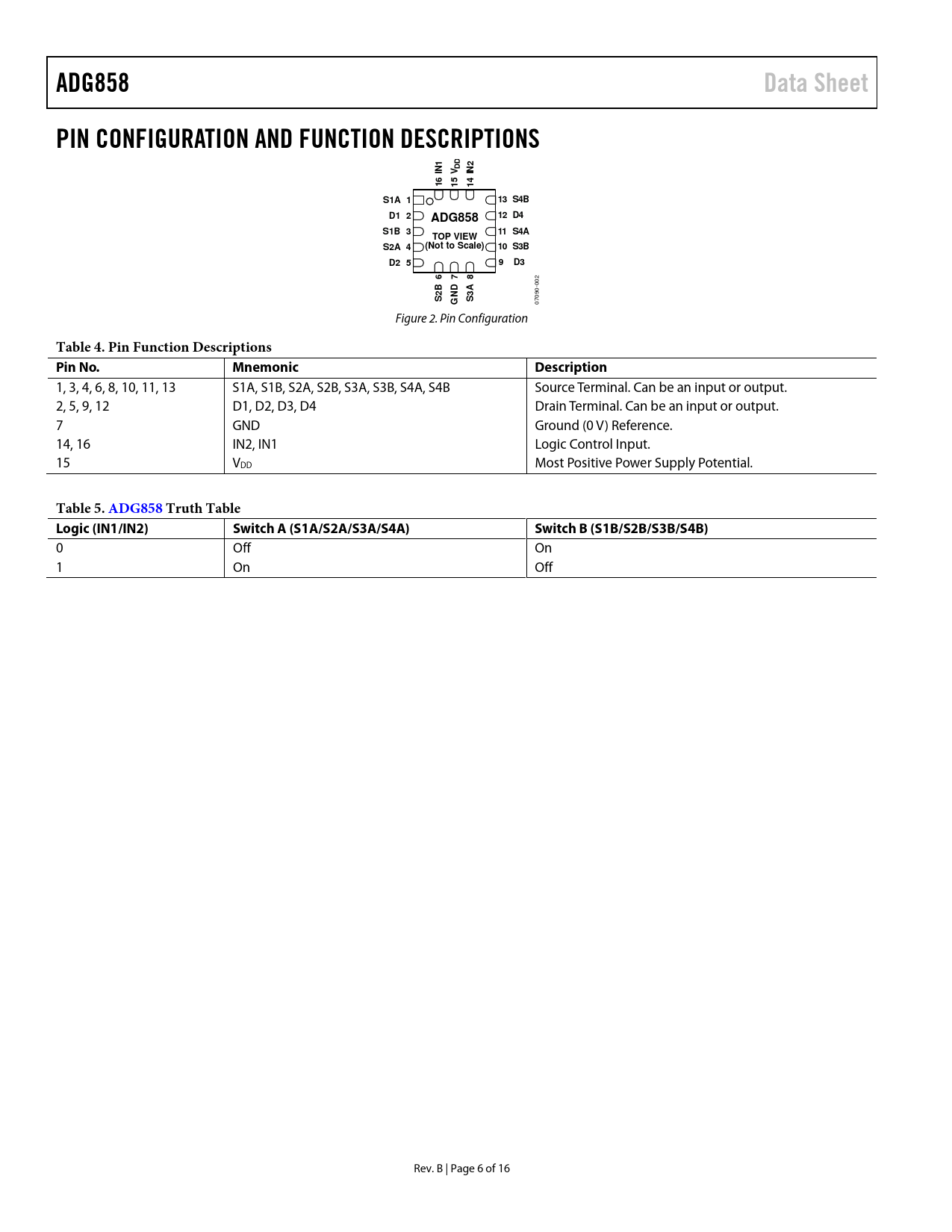

ADG858. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. S1A 1. 13 S4B. D1 2. 12 D4. S1B 3. 11 S4A. TOP VIEW. S2A 4. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
ADG858 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 DD 2 NI V NI 16 15 14 S1A 1 13 S4B D1 2 12 D4 ADG858 S1B 3 11 S4A TOP VIEW S2A 4 (Not to Scale) 10 S3B D2 5 9 D3 6 7 8 A
002
2B ND S G S3
07090- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1, 3, 4, 6, 8, 10, 11, 13 S1A, S1B, S2A, S2B, S3A, S3B, S4A, S4B Source Terminal. Can be an input or output. 2, 5, 9, 12 D1, D2, D3, D4 Drain Terminal. Can be an input or output. 7 GND Ground (0 V) Reference. 14, 16 IN2, IN1 Logic Control Input. 15 VDD Most Positive Power Supply Potential.
Table 5. ADG858 T ruth Table Logic (IN1/IN2) Switch A (S1A/S2A/S3A/S4A) Switch B (S1B/S2B/S3B/S4B)
0 Off On 1 On Off Rev. B | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISTION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
