Datasheet ADG772 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | CMOS Low Power Dual 2:1 Mux/Demux USB 2.0 (480 Mbps)/USB 1.1 (12 Mbps) |
| Pages / Page | 12 / 1 — CMOS Low Power Dual 2:1 Mux/Demux. USB 2.0 (480 Mbps)/USB 1.1 (12 Mbps). … |
| Revision | C |
| File Format / Size | PDF / 387 Kb |
| Document Language | English |

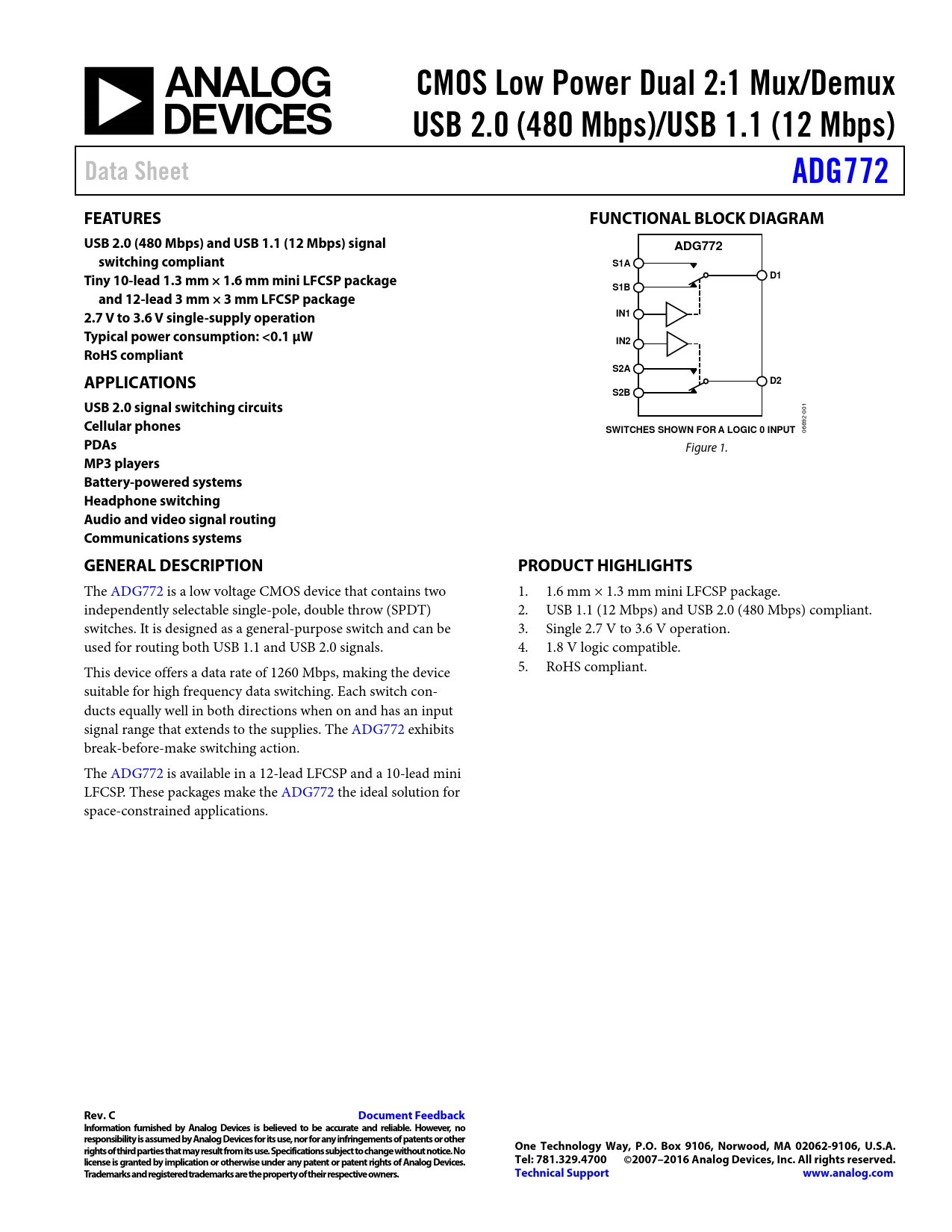

CMOS Low Power Dual 2:1 Mux/Demux. USB 2.0 (480 Mbps)/USB 1.1 (12 Mbps). Data Sheet. ADG772. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
CMOS Low Power Dual 2:1 Mux/Demux USB 2.0 (480 Mbps)/USB 1.1 (12 Mbps) Data Sheet ADG772 FEATURES FUNCTIONAL BLOCK DIAGRAM USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) signal ADG772 switching compliant S1A Tiny 10-lead 1.3 mm × 1.6 mm mini LFCSP package D1 S1B and 12-lead 3 mm × 3 mm LFCSP package 2.7 V to 3.6 V single-supply operation IN1 Typical power consumption: <0.1 μW IN2 RoHS compliant S2A APPLICATIONS D2 S2B USB 2.0 signal switching circuits
01 0 2-
Cellular phones
69
SWITCHES SHOWN FOR A LOGIC 0 INPUT
06
PDAs
Figure 1.
MP3 players Battery-powered systems Headphone switching Audio and video signal routing Communications systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG772 is a low voltage CMOS device that contains two 1. 1.6 mm × 1.3 mm mini LFCSP package. independently selectable single-pole, double throw (SPDT) 2. USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) compliant. switches. It is designed as a general-purpose switch and can be 3. Single 2.7 V to 3.6 V operation. used for routing both USB 1.1 and USB 2.0 signals. 4. 1.8 V logic compatible. This device offers a data rate of 1260 Mbps, making the device 5. RoHS compliant. suitable for high frequency data switching. Each switch con- ducts equally well in both directions when on and has an input signal range that extends to the supplies. The ADG772 exhibits break-before-make switching action. The ADG772 is available in a 12-lead LFCSP and a 10-lead mini LFCSP. These packages make the ADG772 the ideal solution for space-constrained applications.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2007–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
