Datasheet ADG772 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | CMOS Low Power Dual 2:1 Mux/Demux USB 2.0 (480 Mbps)/USB 1.1 (12 Mbps) |
| Pages / Page | 12 / 4 — ADG772. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. … |
| Revision | C |
| File Format / Size | PDF / 387 Kb |
| Document Language | English |
ADG772. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 4

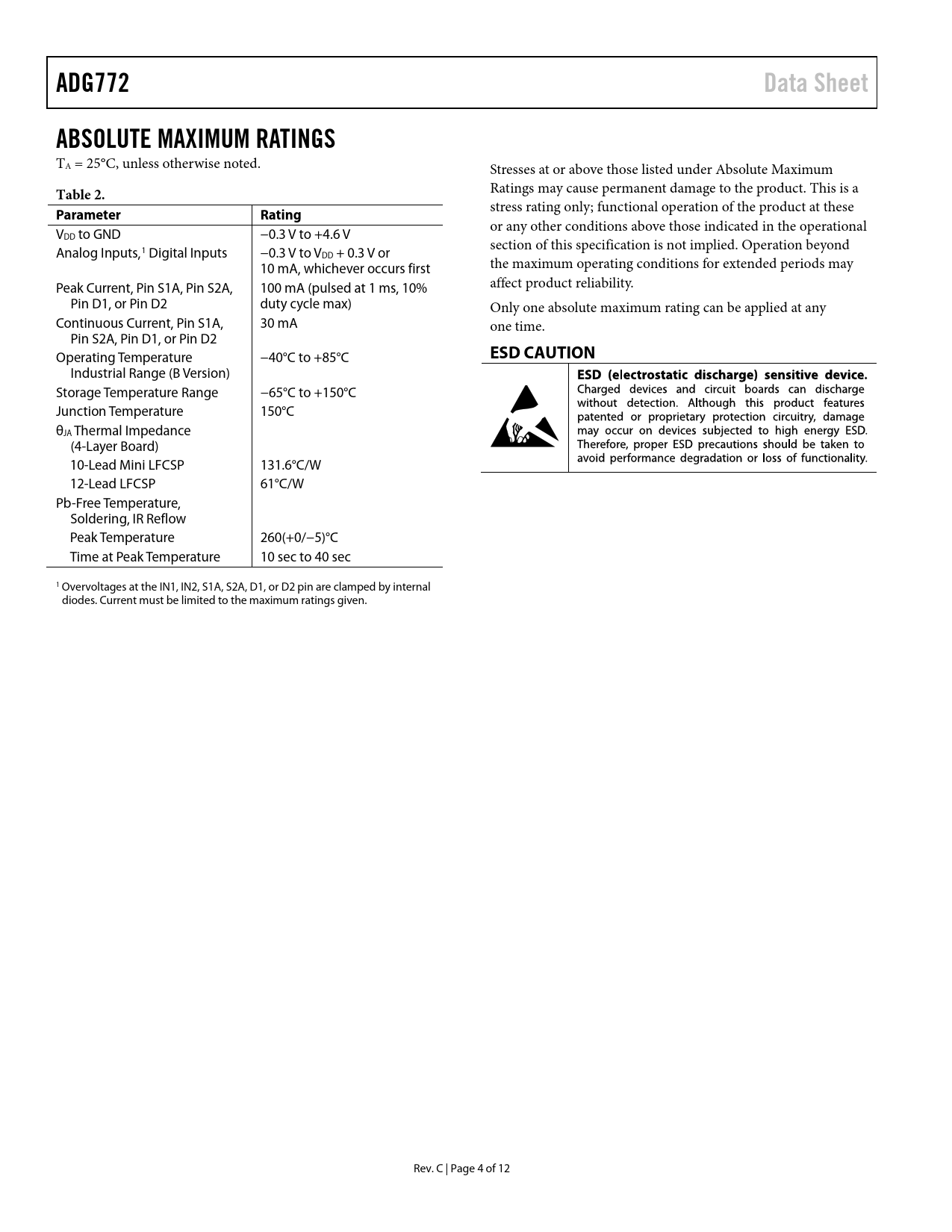

ADG772 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to GND −0.3 V to +4.6 V section of this specification is not implied. Operation beyond Analog Inputs,1 Digital Inputs −0.3 V to VDD + 0.3 V or 10 mA, whichever occurs first the maximum operating conditions for extended periods may Peak Current, Pin S1A, Pin S2A, 100 mA (pulsed at 1 ms, 10% affect product reliability. Pin D1, or Pin D2 duty cycle max) Only one absolute maximum rating can be applied at any Continuous Current, Pin S1A, 30 mA one time. Pin S2A, Pin D1, or Pin D2 Operating Temperature −40°C to +85°C
ESD CAUTION
Industrial Range (B Version) Storage Temperature Range −65°C to +150°C Junction Temperature 150°C θJA Thermal Impedance (4-Layer Board) 10-Lead Mini LFCSP 131.6°C/W 12-Lead LFCSP 61°C/W Pb-Free Temperature, Soldering, IR Reflow Peak Temperature 260(+0/−5)°C Time at Peak Temperature 10 sec to 40 sec 1 Overvoltages at the IN1, IN2, S1A, S2A, D1, or D2 pin are clamped by internal diodes. Current must be limited to the maximum ratings given. Rev. C | Page 4 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
