Datasheet LXHL (Lumileds) - 6

Notes: (for Tables 2 & 3) Continued 9. CRI (Color Rendering Index) for White product types is 70. CRI for Warm White product type is 90 with typical R value 9 of 70. 10.All red, redorange and amber products built with Aluminum Indium Gallium Phosphide (AlInGaP). 11.All white, warm white, green, cyan, blue and royal blue products built with Indium Gallium Nitride (InGaN). 12.Blue and Royal Blue power light sources represented here are IEC825 Class 2 for eye safety.

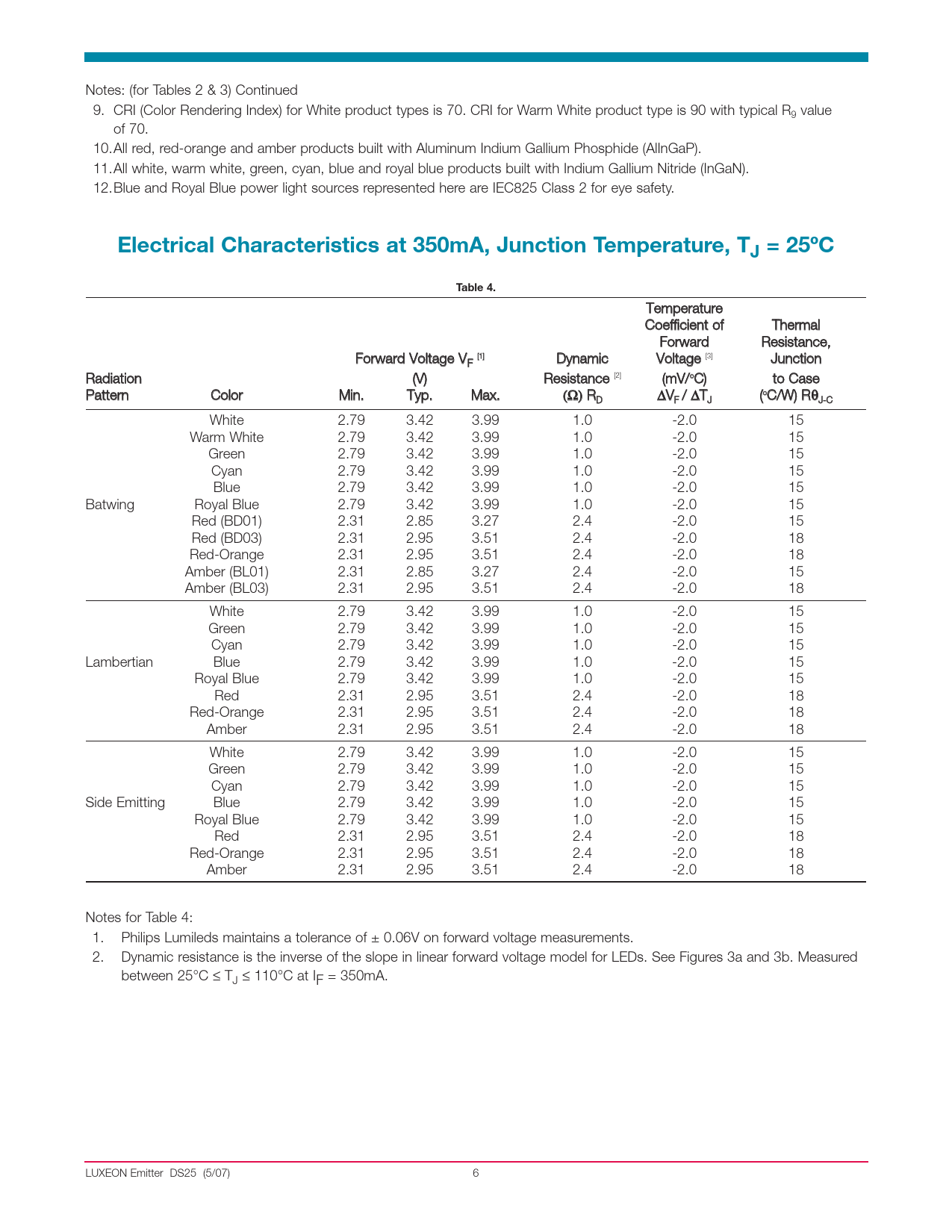

Electrical Characteristics at 350mA, Junction Temperature, TJ = 25ºC Table 4.
Temperature Coefficient of Thermal Forward Resistance, Forward Voltage V [1] F Dynamic Voltage [3] Junction Radiation (V) Resistance [2] (mV/oC) to Case Pattern Color Min. Typ. Max. (Ω) R ΔV / ΔT (oC/W) Rθ D F J JC White 2.79 3.42 3.99 1.0 2.0 15 Warm White 2.79 3.42 3.99 1.0 2.0 15 Green 2.79 3.42 3.99 1.0 2.0 15 Cyan 2.79 3.42 3.99 1.0 2.0 15 Blue 2.79 3.42 3.99 1.0 2.0 15 Batwing Royal Blue 2.79 3.42 3.99 1.0 2.0 15 Red (BD01) 2.31 2.85 3.27 2.4 2.0 15 Red (BD03) 2.31 2.95 3.51 2.4 2.0 18 RedOrange 2.31 2.95 3.51 2.4 2.0 18 Amber (BL01) 2.31 2.85 3.27 2.4 2.0 15 Amber (BL03) 2.31 2.95 3.51 2.4 2.0 18 White 2.79 3.42 3.99 1.0 2.0 15 Green 2.79 3.42 3.99 1.0 2.0 15 Cyan 2.79 3.42 3.99 1.0 2.0 15 Lambertian Blue 2.79 3.42 3.99 1.0 2.0 15 Royal Blue 2.79 3.42 3.99 1.0 2.0 15 Red 2.31 2.95 3.51 2.4 2.0 18 RedOrange 2.31 2.95 3.51 2.4 2.0 18 Amber 2.31 2.95 3.51 2.4 2.0 18 White 2.79 3.42 3.99 1.0 2.0 15 Green 2.79 3.42 3.99 1.0 2.0 15 Cyan 2.79 3.42 3.99 1.0 2.0 15 Side Emitting Blue 2.79 3.42 3.99 1.0 2.0 15 Royal Blue 2.79 3.42 3.99 1.0 2.0 15 Red 2.31 2.95 3.51 2.4 2.0 18 RedOrange 2.31 2.95 3.51 2.4 2.0 18 Amber 2.31 2.95 3.51 2.4 2.0 18 Notes for Table 4: 1. Philips Lumileds maintains a tolerance of ± 0.06V on forward voltage measurements. 2. Dynamic resistance is the inverse of the slope in linear forward voltage model for LEDs. See Figures 3a and 3b. Measured between 25°C ≤ T ≤ J 110°C at IF = 350mA. LUXEON Emitter DS25 (5/07) 6
