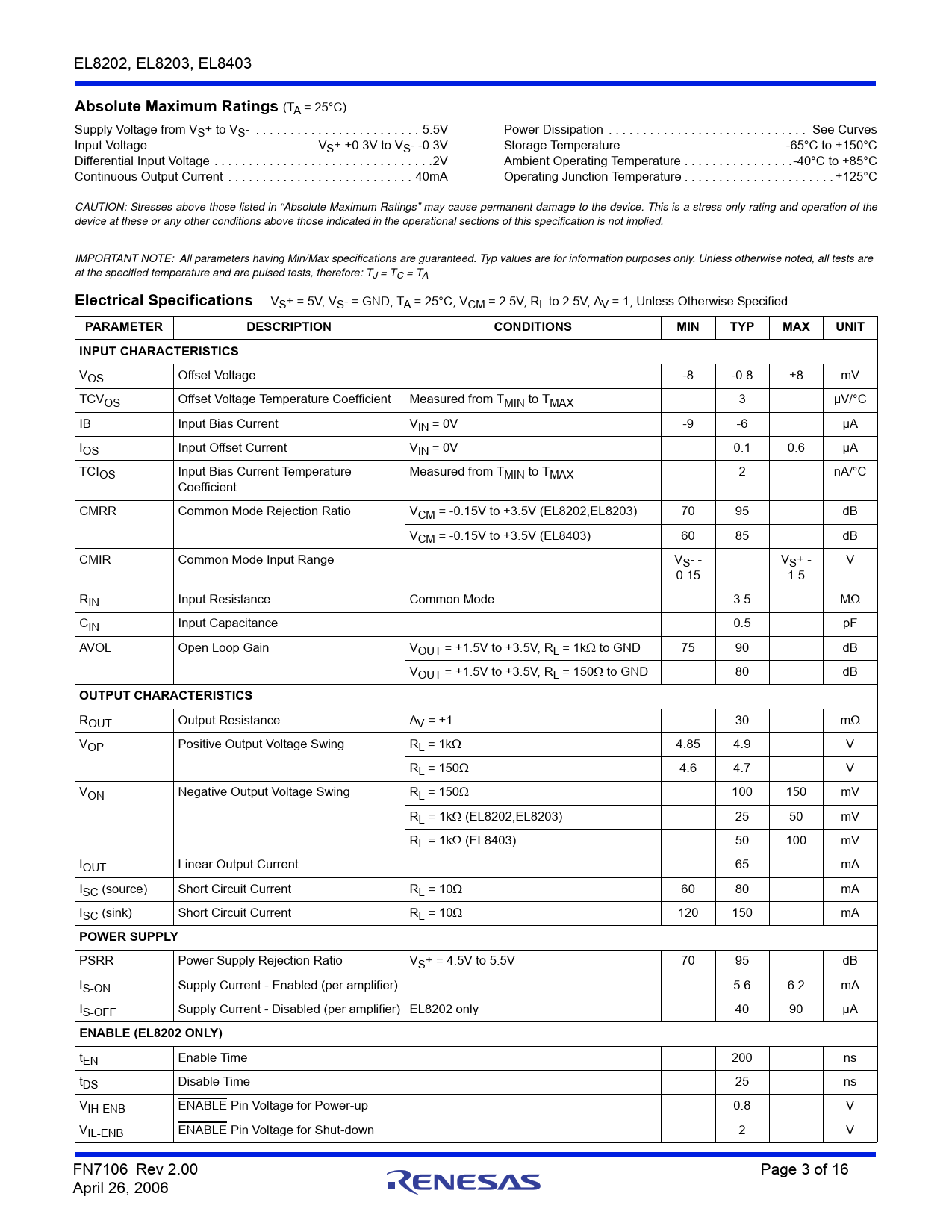

EL8202, EL8203, EL8403
Absolute Maximum Ratings
(TA = 25°C) Supply Voltage from VS+ to VS- . 5.5V Power Dissipation . See Curves Input Voltage . VS+ +0.3V to VS- -0.3V Storage Temperature . .-65°C to +150°C Differential Input Voltage . .2V Ambient Operating Temperature . .-40°C to +85°C Continuous Output Current . 40mA Operating Junction Temperature . +125°C CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. IMPORTANT NOTE: All parameters having Min/Max specifications are guaranteed. Typ values are for information purposes only. Unless otherwise noted, all tests are at the specified temperature and are pulsed tests, therefore: TJ = TC = TA
Electrical Specifications
VS+ = 5V, VS- = GND, TA = 25°C, VCM = 2.5V, RL to 2.5V, AV = 1, Unless Otherwise Specified
PARAMETER DESCRIPTION CONDITIONS MIN TYP MAX UNIT INPUT CHARACTERISTICS
VOS Offset Voltage -8 -0.8 +8 mV TCVOS Offset Voltage Temperature Coefficient Measured from TMIN to TMAX 3 µV/°C IB Input Bias Current VIN = 0V -9 -6 µA IOS Input Offset Current VIN = 0V 0.1 0.6 µA TCIOS Input Bias Current Temperature Measured from TMIN to TMAX 2 nA/°C Coefficient CMRR Common Mode Rejection Ratio VCM = -0.15V to +3.5V (EL8202,EL8203) 70 95 dB VCM = -0.15V to +3.5V (EL8403) 60 85 dB CMIR Common Mode Input Range VS- - VS+ - V 0.15 1.5 RIN Input Resistance Common Mode 3.5 M CIN Input Capacitance 0.5 pF AVOL Open Loop Gain VOUT = +1.5V to +3.5V, RL = 1k to GND 75 90 dB VOUT = +1.5V to +3.5V, RL = 150 to GND 80 dB
OUTPUT CHARACTERISTICS
ROUT Output Resistance AV = +1 30 m VOP Positive Output Voltage Swing RL = 1k 4.85 4.9 V RL = 150 4.6 4.7 V VON Negative Output Voltage Swing RL = 150 100 150 mV RL = 1k (EL8202,EL8203) 25 50 mV RL = 1k (EL8403) 50 100 mV IOUT Linear Output Current 65 mA ISC (source) Short Circuit Current RL = 10 60 80 mA ISC (sink) Short Circuit Current RL = 10 120 150 mA
POWER SUPPLY
PSRR Power Supply Rejection Ratio VS+ = 4.5V to 5.5V 70 95 dB IS-ON Supply Current - Enabled (per amplifier) 5.6 6.2 mA IS-OFF Supply Current - Disabled (per amplifier) EL8202 only 40 90 µA
ENABLE (EL8202 ONLY)
tEN Enable Time 200 ns tDS Disable Time 25 ns VIH-ENB ENABLE Pin Voltage for Power-up 0.8 V VIL-ENB ENABLE Pin Voltage for Shut-down 2 V FN7106 Rev 2.00 Page 3 of 16 April 26, 2006
