Typical electrical. VIPER17. Typical electrical characteristics. Figure 7: Current limit vs TJ
Model Line for this Datasheet
Text Version of Document
Typical electrical
characteristics

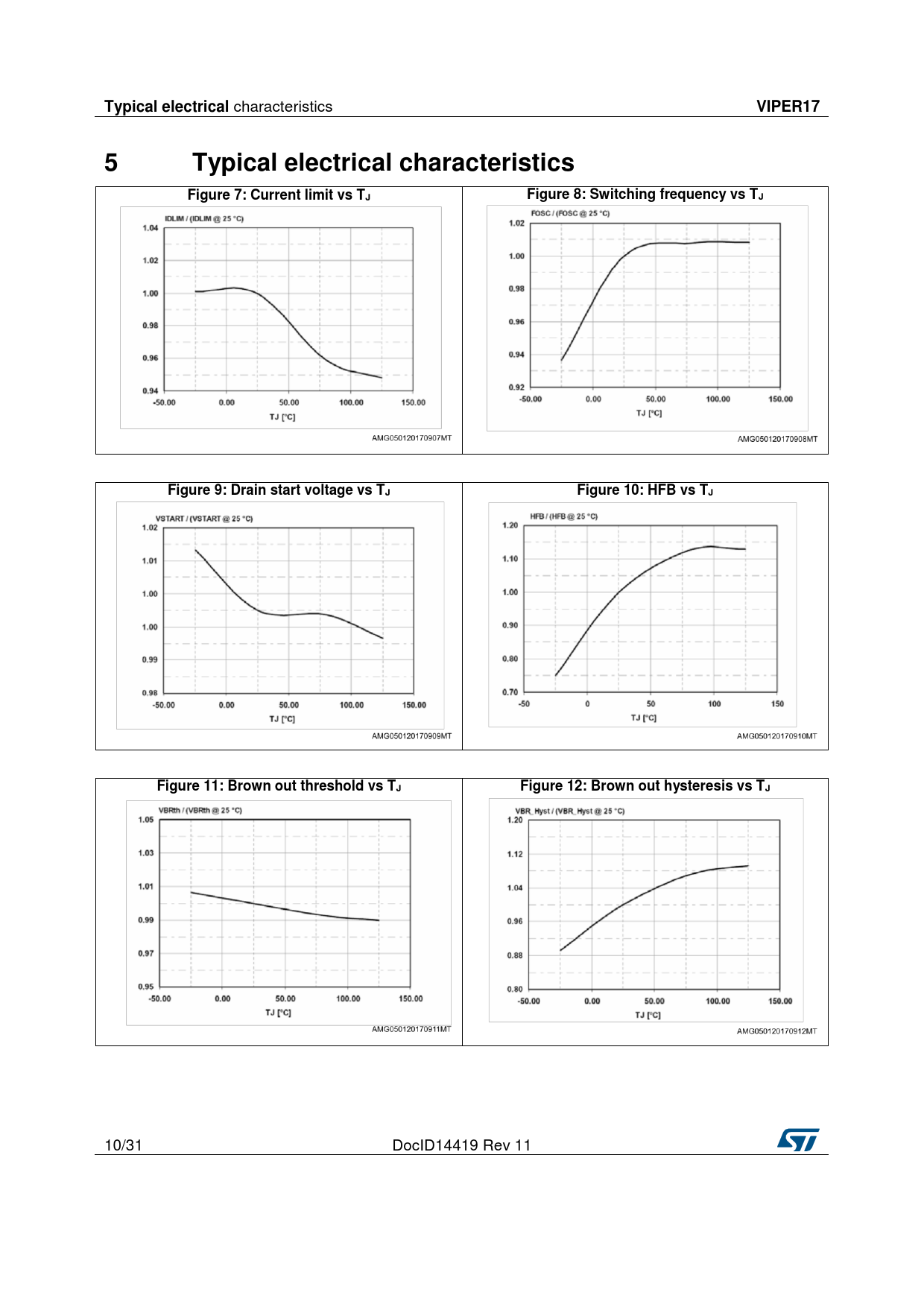

VIPER17 5 Typical electrical characteristics Figure 7: Current limit vs TJ Figure 8: Switching frequency vs TJ Figure 9: Drain start voltage vs TJ Figure 10: HFB vs TJ Figure 11: Brown out threshold vs TJ Figure 12: Brown out hysteresis vs TJ
10/31 DocID14419 Rev 11
characteristics
VIPER17 5 Typical electrical characteristics Figure 7: Current limit vs TJ Figure 8: Switching frequency vs TJ Figure 9: Drain start voltage vs TJ Figure 10: HFB vs TJ Figure 11: Brown out threshold vs TJ Figure 12: Brown out hysteresis vs TJ
10/31 DocID14419 Rev 11
